Nitrous Express EFI NITROUS PLATE SYSTEM FOR HEMI User Manual
Page 4
4

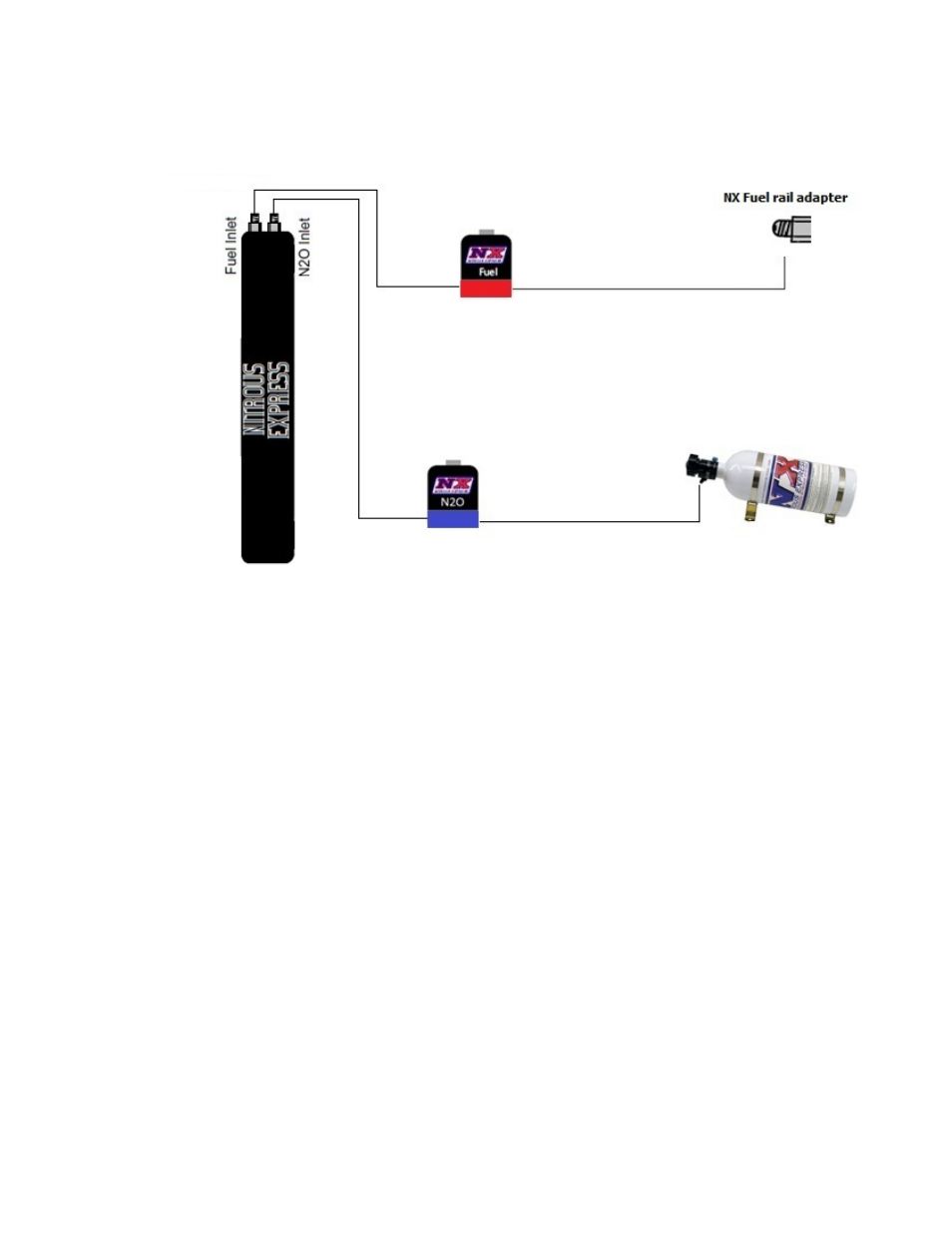

ILLUSTRATION C
FUEL SUPPLY CONNECTION:
WARNING: THE FUEL RAIL AND/OR FUEL LINES ARE UNDER HIGH PRESSURE. USE
EXTREME CAUTION WHEN DISCONNECTING ANY FUEL LINE. QUICKLY COLLECT AND
PROPERLY DISPOSE OF ANY EXCESS FUEL SPILLAGE.
1. Locate the fuel supply line on the fuel rail (injector rail). Disconnect the factory fuel line from the fuel
rail using a fuel line removal tool.
2. Attach the NX Fuel Rail Adapter to the in-line with the factory fuel line on the fuel rail. (See
illustration D)
3. Now connect the red fuel line from the fuel rail adapter fitting to the inlet side of the fuel solenoid.
4. Connect the factory fuel supply line on top of the NX fuel rail adapter. (See illustration D)
