Nitrous Express ELECTRONIC FUEL INJECTED FR-S/BRZ PLATE SYSTEM User Manual
Page 3
of the plate. Repeat this procedure for the fuel solenoid (the fuel fitting will be marked “FUEL”). NOTE: Always
check each jet for obstructions before using.
2. Remove the throttle body.
3. The nitrous plate should be installed as shown. (See Illustration B) Fuel and nitrous fittings are to the rear. Using
supplied O-ring gasket reinstall the throttle body in front of the nitrous plate and torque to factory specs using the
provided hardware.

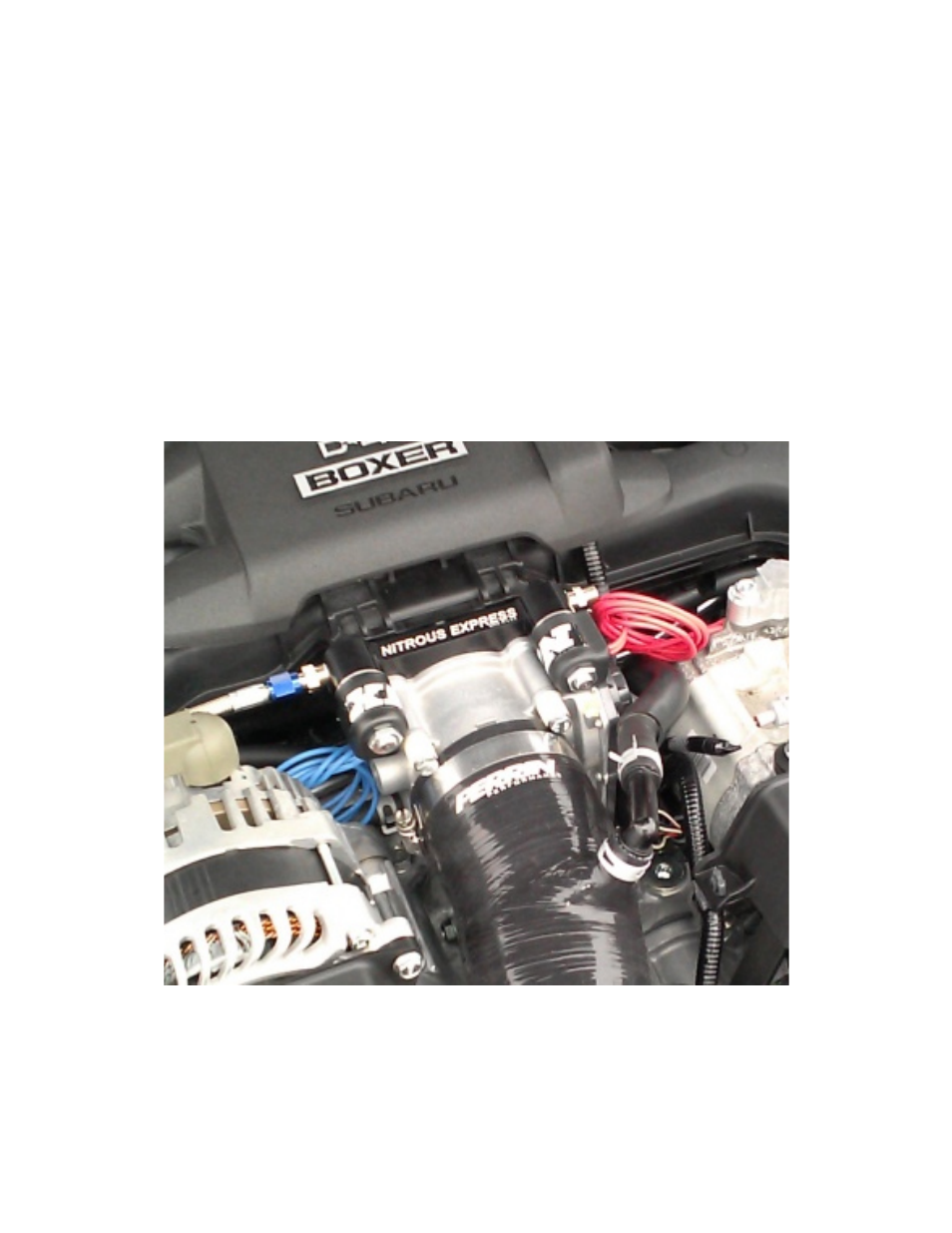

ILLUSTRATION B
