Y-TEC® VP-210 and VP-211

Implantation System for Peritoneal Dialysis Catheter

English

PRODUCT DESCRIPTION

Y-TEC® VP-210 and VP-211

ImPlanTaTIon SYSTEm ConTaInS:

• Small Dilator

• large Dilator

• luke® Guide assembly:

(Trocar, Cannula and Clip, luke Guide )

• Cuff Implantor™ Tool

• Tunnelor® Tool

INDICATIONS FOR USE

The Y-TEC Implantation System can be used to implant a

peritoneal dialysis catheter in patients who are suitable

candidates for peritoneal dialysis therapy.

CONTRAINDICATIONS

Do noT use if the patient is not a suitable candidate for

peritoneal dialysis therapy.

Px Only: Caution: Federal (USa) law restricts this device to

sale by or on the order of a physician.

PRECAUTIONS

• Read manufacturer’s instructions prior to use.

• Contents are sterile (via ethylene oxide). Do not use if

packaging is opened, damaged, or broken.

• For single patient use only. Do not reuse, reprocess,

or resterilize. Reuse, reprocessing, or resterilization

may compromise the structural integrity of the device

and/or lead to device failure, which in turn may result

in patient injury, illness, or death. Reuse, reprocessing,

or resterilization may also create a risk of contamination

of the device and/or cause patient infection or cross-

infection, including, but not limited to, the transmission

of infectious disease(s) from one patient to another.

Contamination of the device may lead to injury, illness,

or death of the patient.

• Do not use after expiration date.

• The medical techniques, procedures, and potential

complications stated herein do noT give full and/or

complete coverage or descriptions. They are not a

substitute for adequate training and sound medical

judgment by a physician.

• Use an aseptic procedure to open the package and to

remove the contents.

POTENTIAL COMPLICATIONS

Peritoneoscopic and laparoscopic procedures and general

anesthesia all have inherent risks associated with their use.

all such risks apply to the use of the Y-TEC Implantation

System. Peritoneal dialysis potentially has a number of

complications that may occur, which generally are not

caused by the implantation, but may affect the quality

of therapy. These complications may include, but are not

limited to, the following:

• Infections (exit-site or tunnel)

• Peritonitis

• Sepsis

• Bowel perforation

• leakage (initial or latent)

• Fluid flow obstruction (inflow or outflow)

• Bleeding (subcutaneous or peritoneal)

• Ileus

• Proximal exit cuff erosion

• Distal (rectus/deep) cuff erosion

• Risks normally associated with peritoneoscopic and

laparoscopic procedures.

INSTRUCTIONS FOR USE

Catheter Implantation Site options

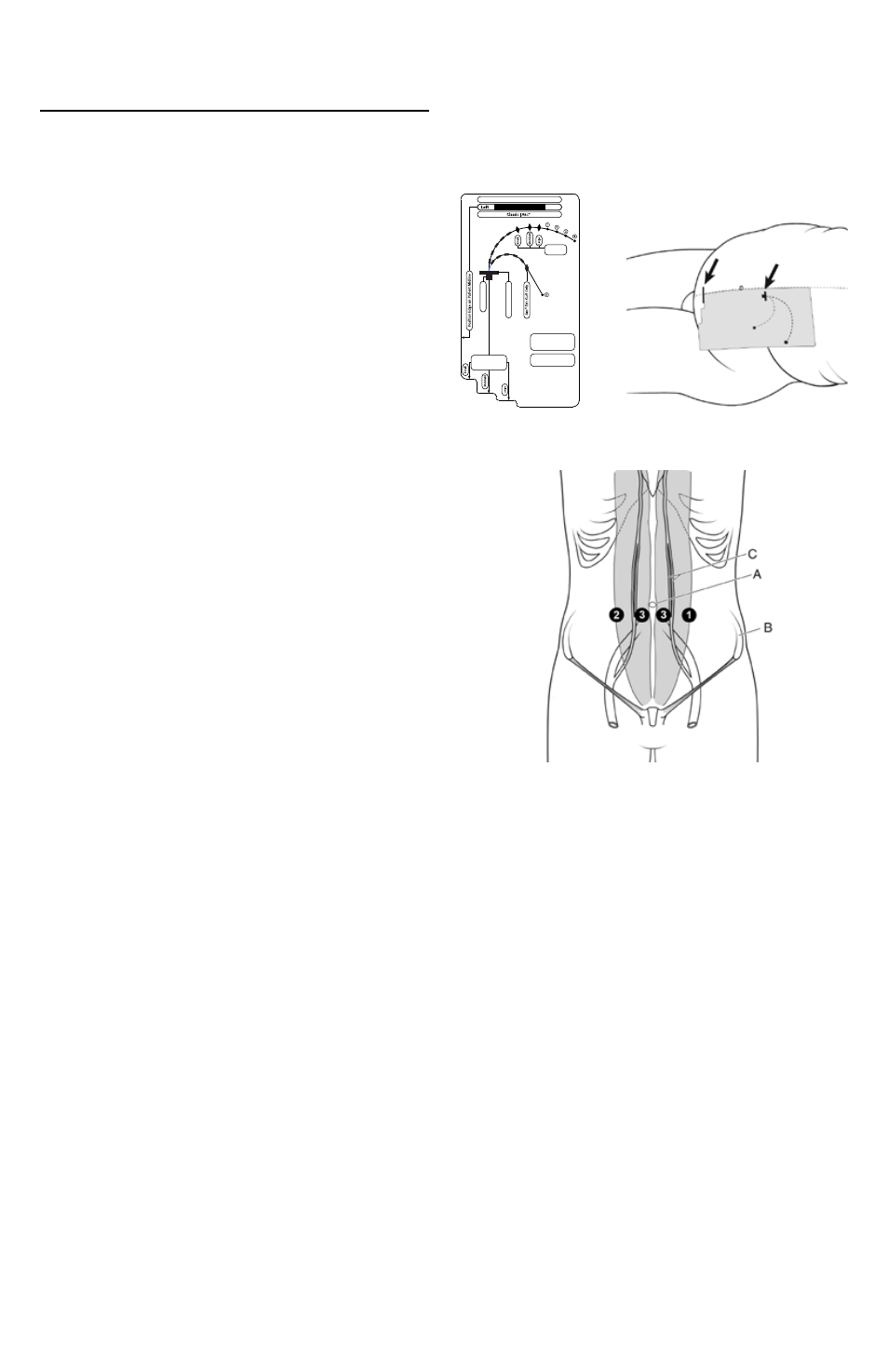

locate preferred implantation and exit sites as indicated by

an appropriate Implantation Stencil (Figure 1 and Figure

2) and the anatomical landmarks as indicated in Figure 3.

If using an Implantation Stencil (sold separately), consult

Instructions for Use.

Figure 1

Figure 2-Stencil on body

Implantation Stencil

a. Umbilicus

B. Iliac crest

C. Inferior and superior epigastric arteries

Figure 3-anatomical landmarks

1. left, lateral border of rectus sheath,

2-3 cm below umbilicus

2. Right, lateral border of rectus sheath,

2-3 cm below umbilicus

3. medial border of rectus sheath, 2-3 cm below umbilicus

NOTE: Implantation sites should be above superior iliac

crest.

WARNING: Do noT implant the catheter at the patient’s

beltline, or skin folds.

WARNING: Do noT place the exit-site in the patient’s skin

folds, or beltline.

PATIENT PREPARATION

1. Sedate patient.

2. attach appropriate patient monitors.

3. Prepare abdomen and drape patient in standard

sterile manner.

4. anesthetize primary catheter insertion site.

INSERTING LUkE GUIDE ASSEMbLY

1. make 3-5 cm long horizontal skin incision.

2. Perform blunt dissection with hemostats to the anterior

surface of the rectus sheath (Figure 4 a & B), use

cauterization device as necessary to control bleeding.

IMPLANTATION STENCIL

Place on Patient’s

Cranial Border of

the Pubic Symphysis

For directions, see

Instructions for Use

Use with Flex-Neck

®

Classic & Arc™ Adult

PD Catheter ONLY

Classic Exit

Cuff Site

Pr

imar

y I

ncision Sit

e

Rec

tus C

uff Sit

e

Flex-Neck

®

Adult PD Catheter
