INSTALLATION INSTRUCTIONS
AuraLast
®
Exterior Door Frame Assembly Instructions
4

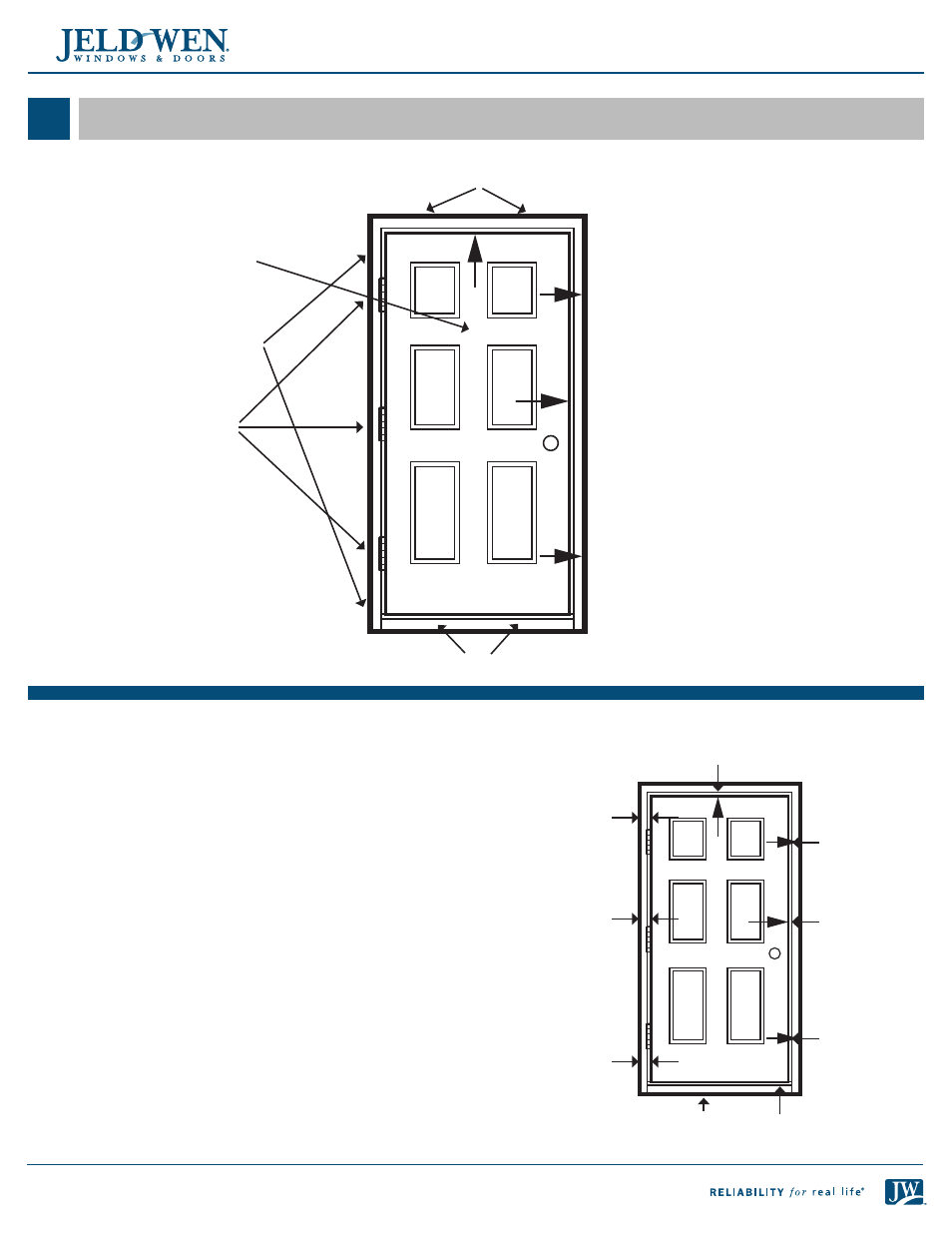

DOOR uNIT ASSEMbLy
Door unit Illustration
Frame Assembly Illustration
Most doors and door openings are not consistent in height
and width. This frame kit is slightly oversized in order to
accommodate for these variations.
The head jamb and sill should be cut (1/4" - no less) wider than
the door width. The frame width should allow for (1/8" - no
less) reveal.
Cut side jambs (1/8" - no less) for reveal at the top and make
sure the length allows for the bottom door sweep to compress
slightly on the sill for a weather-tight fit.
Note: Make sure the reveal is consistent all the way around the
door to prevent sticking.
Strike Side
Jamb
Strike Plate
Head Jamb
Sill
Reveal - between
door & door frame
1/8"
Bottom - Sill & Door Sweep
Hinges
Hinge Side
Jamb
Door Slab
Note: Hinge & Strike Jamb placement is
for illustration purposes only. Depending
upon the door in-swing, hinge & strike jamb
placement may be reversed.
1/8"
1/8"
1/8"
1/8"
1/8"
1/8"
