INSTALLATION INSTRUCTIONS

for Wood Patio Doors with Exterior Trim or Nailing Fin (JII026)

COMPLETE INSTALLATION

• On the exterior of step down landings, install support trim

underneath the sill where it extends past the landing. Position trim
snugly against the bottom of the sill toe.

• Adjust patio door for best operation.
• Create a continuous air seal on the interior between the rough

opening and the frame with low expansion foam or backer rod and
sealant.

AFTER INSTALLATION

• Install exterior wall

surface within seven
days of installation.

• Maintain gap of

1/4"- 3/8" between
door frame and final
exterior wall surface
(siding, stucco, etc.).

• Seal this gap on the

sides with backer
rod and sealant. For
step-down landings,
also seal under the
patio door sill with a
discontinuous joint.
Do not apply sealant
on top of the drip
cap.

• Seal any gaps or

openings at end
of horizontal mull
joints with sealant.

• Remove protective

film (if applicable)
on glass within one year and immediately from cladding.

• Protect recently installed units from damage from plaster, paint, etc.

by covering the unit with plastic.

• Finish all exposed wood surfaces immediately following installation.

4. Ensure sealant on back dam of the sill pan fully seals to the inside

face of the sill. Apply more sealant as necessary.

5. Install lockset hardware per supplied instructions.
6. Some French double door units may require installing lock bolts at

the top and bottom of the inactive panel. Locate the center point of
each lock bolt, drill 3/8" bolt holes and install keeper plates.

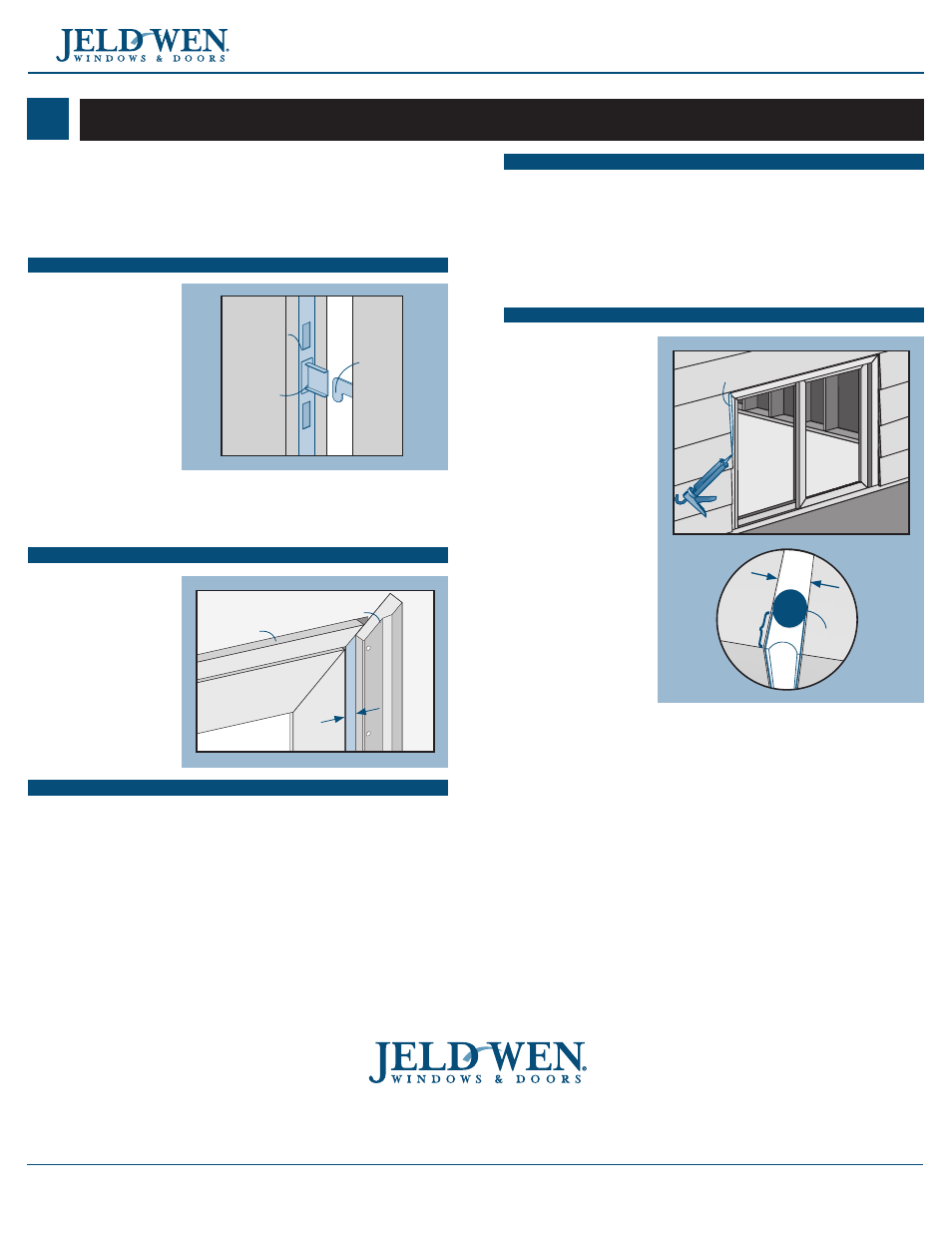

ADJUST LOCK

1. Loosen the lock

hook screws in the
side jamb so it can
be moved up or
down.

2. Insert the alignment

guide into one of
the openings in the
faceplate.

3. Carefully close the

panel and raise or
lower the lock hook
until it aligns with
the slots in the faceplate. Tighten the screws.

4. To lock the door, rotate the thumb turn 90°.

Note!

The thumb turn will not lock when the door is open.

INSTALL EXTERIOR TRIM

For wood exterior
doors not assembled
with brickmould
casing, attach the
pre-cut brickmould
9/16" from the interior
frame edge to the
sides and head with 2
1/2" casing nails. Seal
brickmould to frame
with silicone sealant
and tool into a fillet
joint.

ADJUST SLIDING DOOR PANEL ROLLERS

Note!

Adjust the panel high enough to avoid drag. Keep door stile

parallel to the locking jamb by almost closing the door and looking for
an even reveal/gap.
Roller adjustment plugs may be located on the interior bottom face
or end of each operating panel, remove each plug. Using a flat head
screwdriver for face adjusted rollers or phillips for end adjusted rollers,
turn the screw counterclockwise to raise the panel or clockwise to lower
it. Reinstall plugs.

COMPLETE INSTALLATION - CONTINUED

Please visit jeld-wen.com for warranty and care

and maintenance information.

Thank you for choosing

Lock

hook

Faceplate

Alignment

guide

Frame

Panel

Brickmould

9/16"

gap

Gap

Backer

rod

Gap

Sealant

joint
