JELD-WEN JII015 Vinyl Patio Doors without Nailing Fin User Manual
Page 7
INSTALLATION INSTRUCTIONS
for Vinyl Patio Doors without Nailing Fin (JII015)
7
COMPLETE INSTALLATION
7

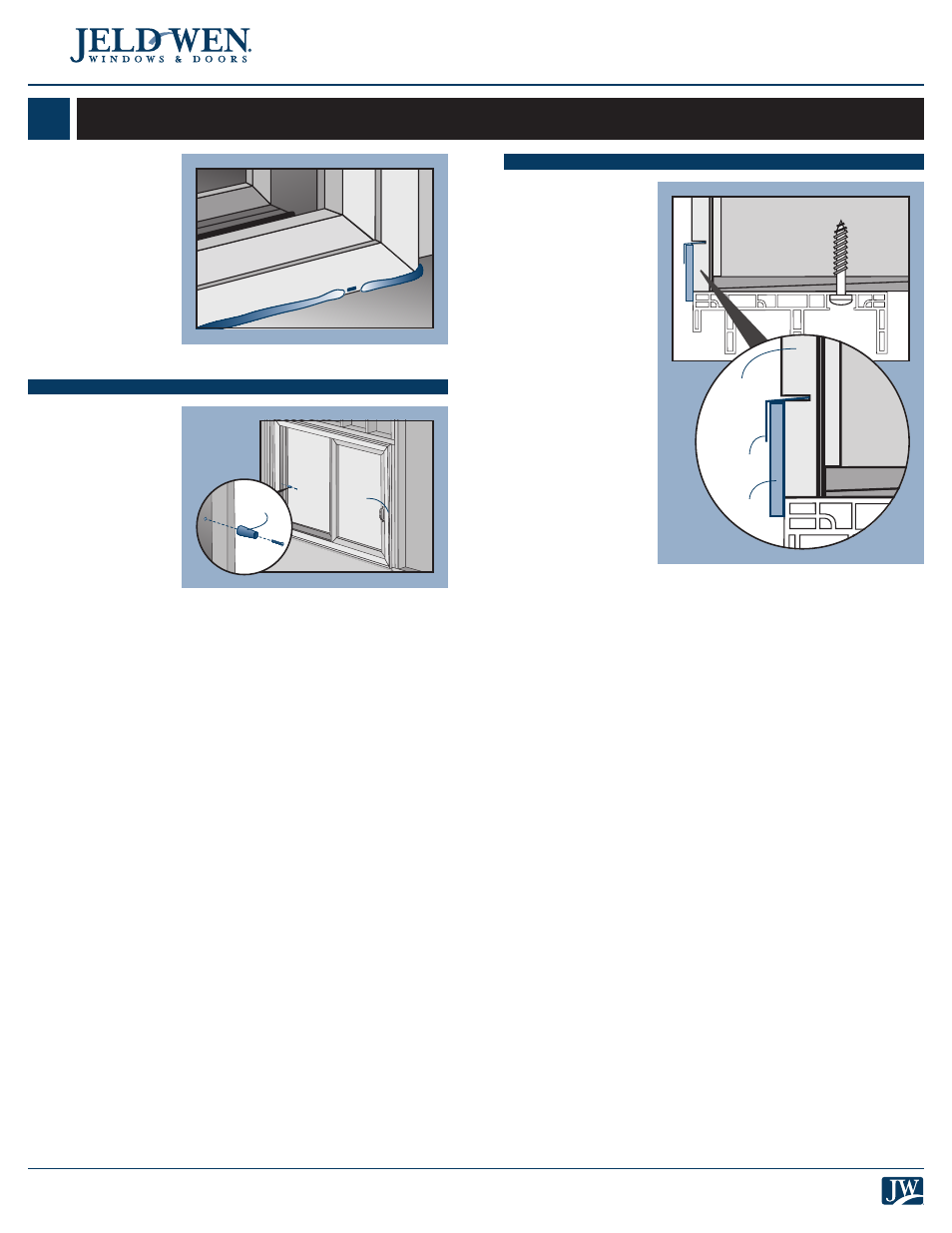

1. For continuous slab
landings, apply a
1/4" bead of sealant
around the sill where
it meets the slab.
Leave 1" gaps at the
weep holes as shown.
2. Ensure sealant on
back dam of the sill
pan fully seals to
the inside face of
the sill. Apply more
sealant as necessary
to ensure an airtight seal.
INSTALL BUMPER
For Builders vinyl
series doors, install
the bumper in the
stationary panel side
jamb at vertical center
using the 1" self-
tapping screw provided.
INSTALL DRIP CAP - OPTIONAL UNLESS REQUIRED BY LOCAL CODE
We recommend as a
best practice to install
a drip cap. For finless
doors, use z flashing
and integrate into the
weather barrier. For
doors with a flush fin,
cut a groove in stucco,
fill with sealant and
insert horizontal leg of
drip cap.
Builders
Patio Door
Strike
plate
Interior
Bumper
Components
shown after
installation is
complete
Stucco
Flush
fin
Head
flashing
