ididit inc. 610 S. Maumee St. 49286 Tecumseh, MI PH: 517-424-0577 FAX: 517-424-7293
www.ididitinc.com
Repair of an Unseated ididit Steering Column
For Part Number’s 2620100010
Instruction #: 8000010056 REV 01/13
(New Style Horn Cam)

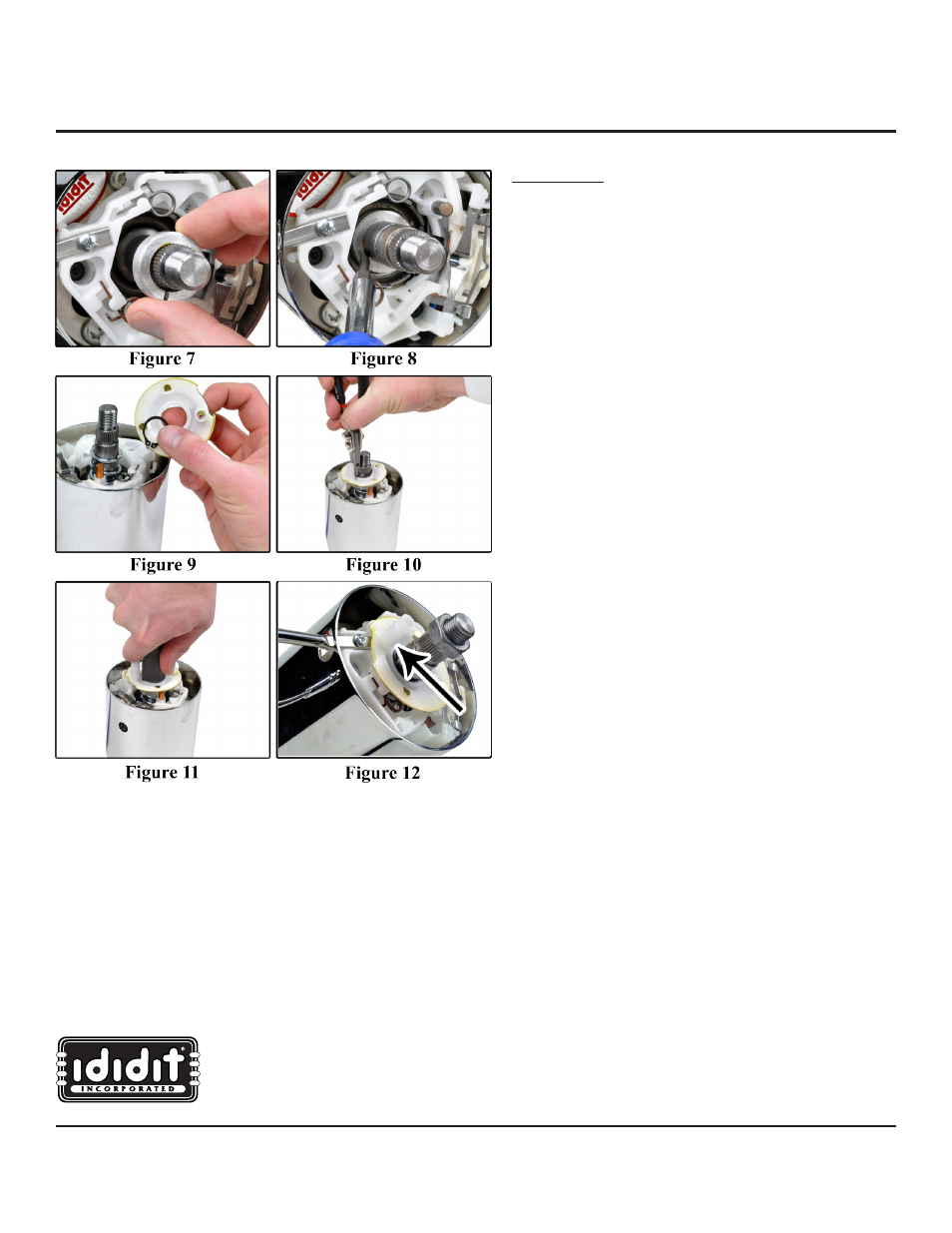

Reassembly:
1. To reassemble the column, you need to first make
sure the shaft is up and against the lower bearing. To
do this, apply pressure...10-15 lbs. to the bottom of
the column shaft.
2. Now install the billet race retainer with the flat side
facing up. This will also have to be tapped into
position and should set over the large diameter of the
shaft. The bottom of this fits into the race and acts as
a wedge to remove the remaining movement.
(Figure
7 & 8)
3. Now reinstall the spring, the horn cam and snap ring.
You will need to use your snap ring pliers and spread
the snap ring over the shaft.
(Figure 9 & 10)
4. Remember that spring inside?? You are going to use
the tube provided in the kit to compress this spring
and the clip down onto the shaft. This will require
about 65 lbs. of force. When the clip is in place you
will hear it snap. This will set the preload on the
bearings.
(Figure 11)
5. Now that the column is back together, we need to
check and make sure your driving wheels are straight.
Once they are, gently turn the white tube to the 10:30-
11:00 position. This will center the timing for the
turn signal cancellation.
(Figure 12) Then install the
steering wheel and horn wire.
Now that your wheel is back on you can check for play
in the column. If this did not fix the problem and you’re
sure the column was assembled correctly, call our tech
line. We will be happy to assist any way we can.
