Code Reader Controls
DISPLAY FUNCTIONS
12 CAN OBD2
E
DISPLAY FUNCTIONS
See Figure 2 for the locations of items 1 through 16, below.
1. I/M MONITOR STATUS field - Identifies the I/M Monitor status area.
2. Monitor icons - Indicate which Monitors are supported by the vehi-
cle under test, and whether or not the associated Monitor has run
its diagnostic testing (Monitor status). When a Monitor icon is solid,
it indicates that the associated Monitor has completed its diagnos-
tic testing. When a Monitor icon is flashing, it indicates that the vehi-
cle supports the associated Monitor, but the Monitor has not yet run
its diagnostic testing.
3. Vehicle icon - Indicates whether or not the Code Reader is
being properly powered through the vehicle’s Data Link Connector
(DLC). A visible icon indicates that the Code Reader is being pow-
ered through the vehicle’s DLC connector.
4. Link icon - Indicates whether or not the Code Reader is com-
municating (linked) with the vehicle’s on-board computer. When vis-
ible, the Code Reader is communicating with the computer. If the
Link icon is not visible, the Code Reader is not communicating with
the computer.
5. Computer icon - When this icon is visible it indicates that the
Code Reader is linked to a personal computer. An optional “PC Link
Kit” is available that makes it possible to upload retrieved data to a
personal computer.
6. Code Reader Internal Battery icon - When visible, indicates
the Code Reader batteries are “low” and should be replaced.
7. DTC Display Area - Displays the Diagnostic Trouble Code (DTC)
number. Each fault is assigned a code number that is specific to
that fault.
4
3
2 1 10 11 12
5
8
9
13
15
14
6
7

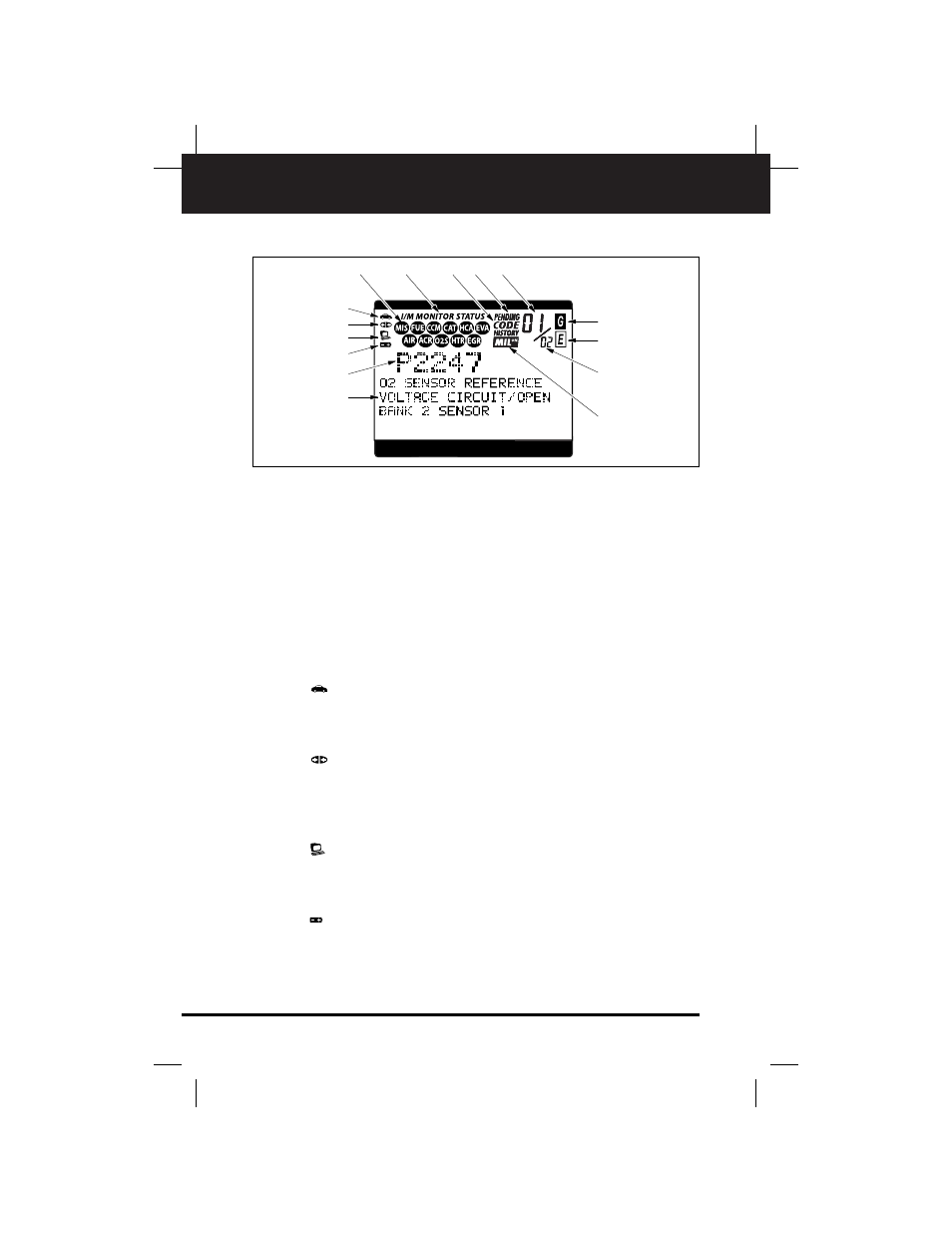

Figure 2. Display Functions
