Code Reader Controls
CONTROLS AND INDICATORS
10 CAN OBD2
E
CONTROLS AND INDICATORS
See Figure 1 for the locations of items 1 through 11, below.
1. ERASE button - Erases Diagnostic Trouble Codes (DTCs),
and “Freeze Frame” data from your vehicle’s computer, and resets
Monitor status.
2. DTC SCROLL button - Displays the DTC View screen and/or
scrolls the LCD display to view DTCs when more than one DTC is
present.
3. POWER/LINK button - When the Code Reader IS NOT
connected to a vehicle, turns the Code Reader “On” and “Off”. When
the Code Reader is connected to a vehicle, links the Code Reader to
the vehicle’s PCM to retrieve diagnostic data from the computer’s
memory.
4. ENTER/FREEZE FRAME button - When in MENU mode,
confirms the selected option or value. When retrieving and viewing
DTCs, displays Freeze Frame data for the highest priority code.
1
6
7
2
5
3
9
8
4
10
11

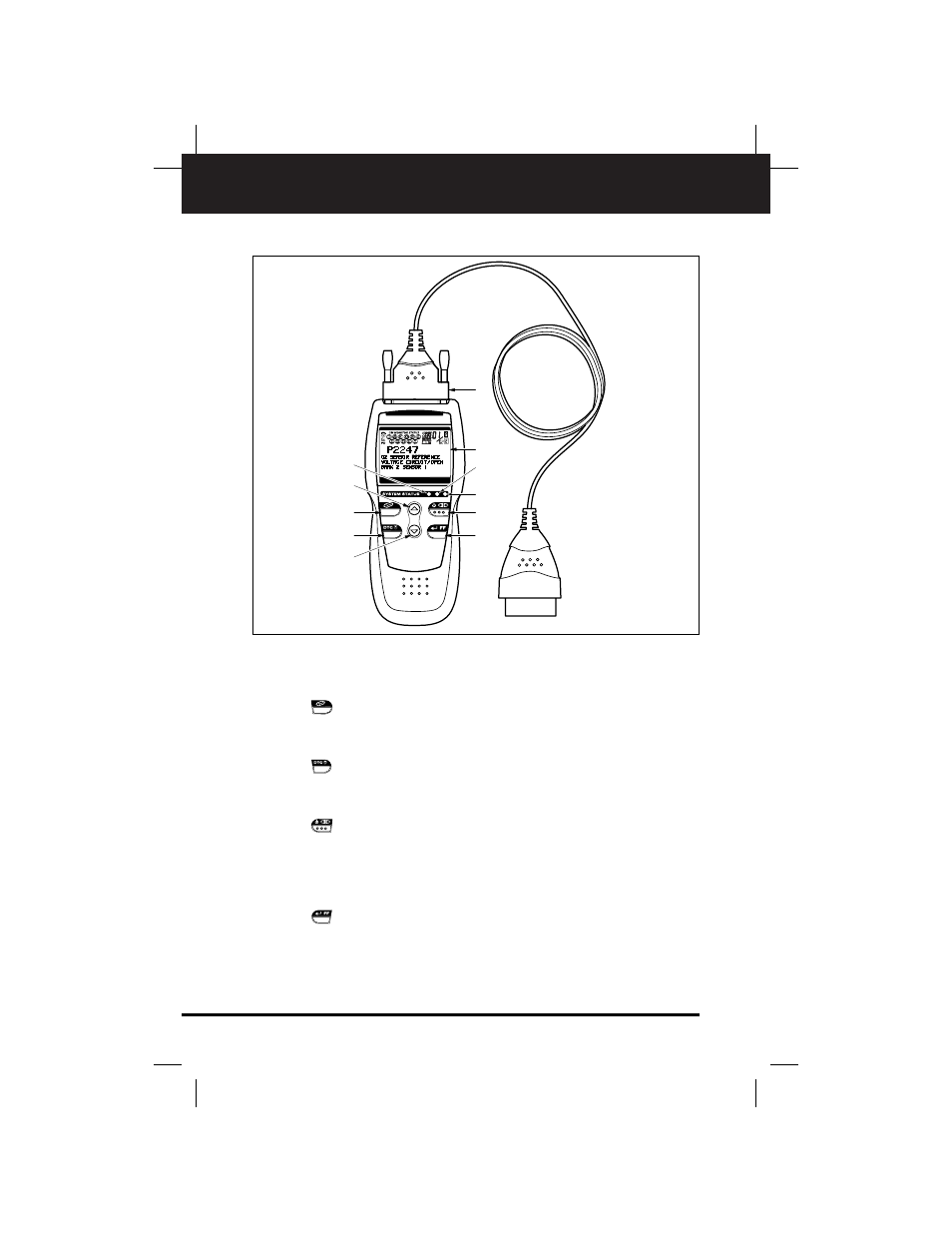

Figure 1. Controls and Indicators
