10 VTM-D15/A 15" MultiMedia Touch Panel Systems
VTM-D15/A Sample Configuration
FIG. 4 shows a sample Table Top MultiMedia System application using a TPI/3, touch panel,
computer (used to configure the TPI/3), and Central Controller.
Power to the VTM-D15/A touch panel is supplied through an external power supply. Power to the
TPI/3 can be supplied either directly through a PSN6.5 or indirectly through an AXlink cable
connection from a Central Controller. The power source is dependant on the distance between the
TPI/3 and the Central Controller. If the distance between the two is greater than outlined in the
Wiring the AXB-TPI/3 section on page 18, a local power source (like the PSN6.5) must be used.

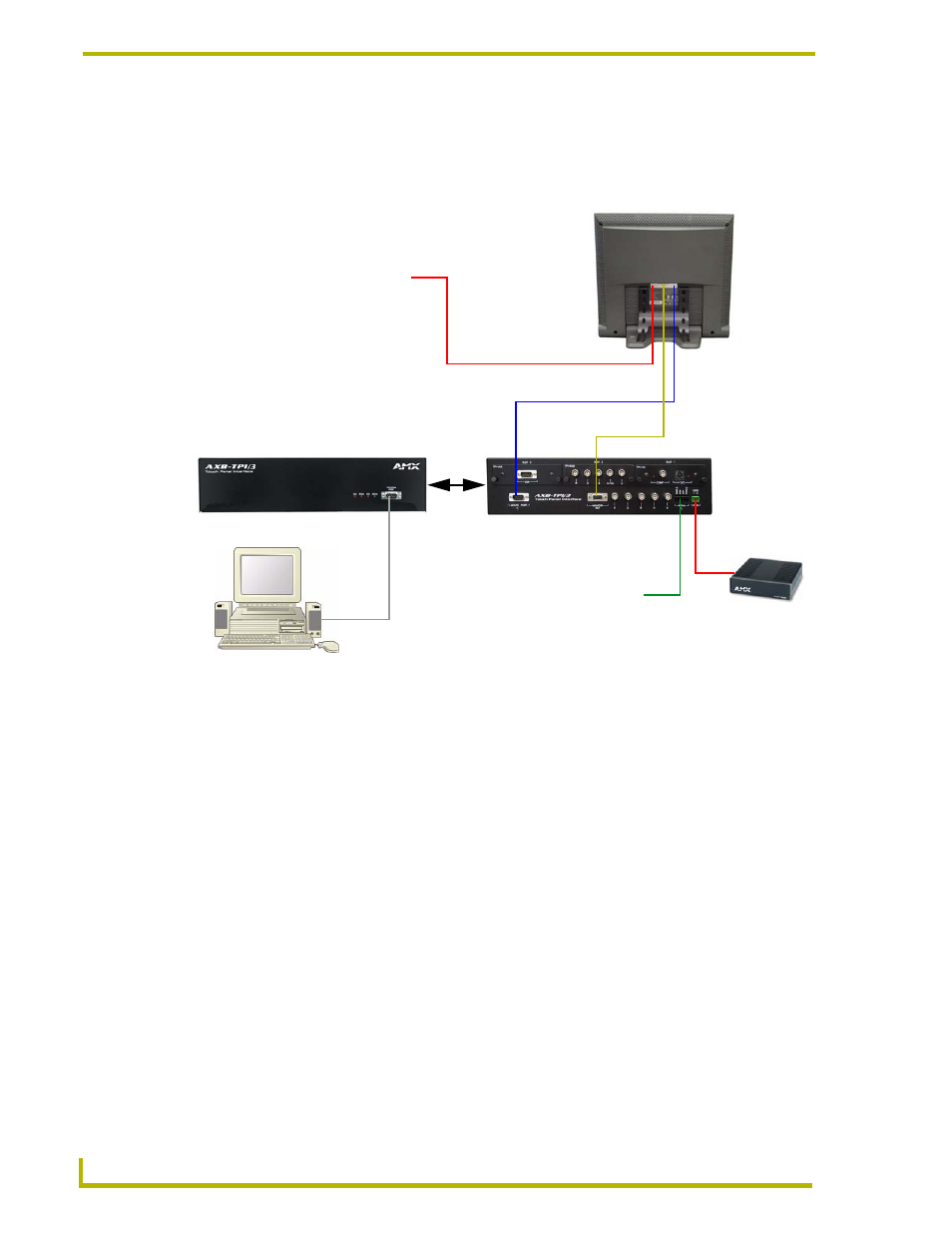

FIG. 4 Sample MultiMedia Touch Panel System Configuration
AMX PSN6.5
Power Supply
2-pin captive-wire
DB-9 to 8-pin mini-DIN
AMX AXB-TPI/3 (front view)
AXlink 4-pin
Computer
External Power
(Adapter and Cord)
15-pin VGA cable
DB-9 connecting
Program Port from
TPI/3 to COM1/2
on rear of computer
connection to
Master Controller
AMX AXB-TPI/3 (rear view)
VTM-D15/A
MultiMedia
Touch
Panel
(showing optional input cards)
