I-175 XL2
Bowl & Frame Assembly
Blade Bolts Required:
Qty Each Nut
A123330 (& Ser) PB9P-NC-088-0275 (12) AFN-00019
A123332L & R
PB9P-NC-088-0275 (4) AFN-00019
PB9P-NC-088-0225 (2)
A123357
AFB-00018 (5) AFN-00012

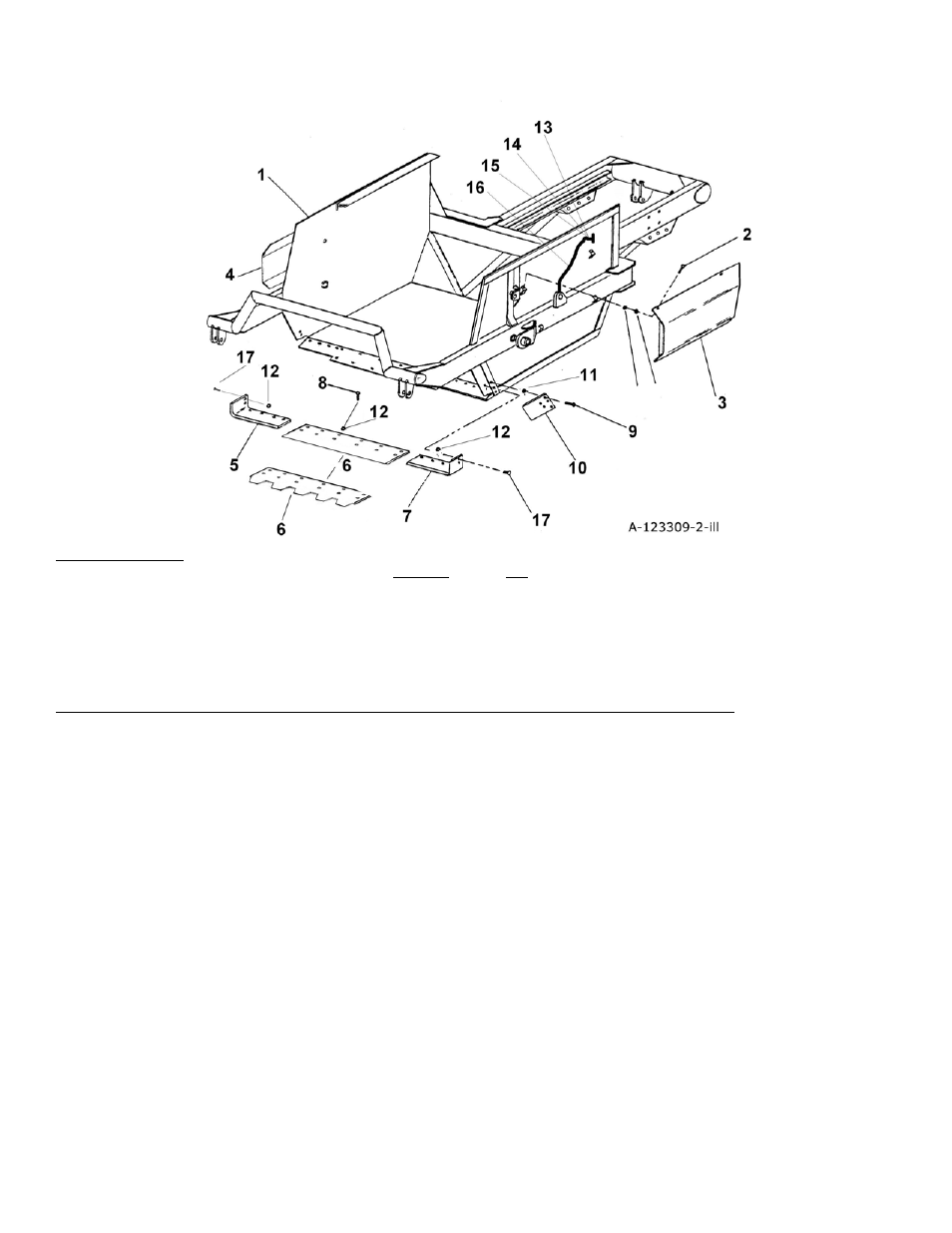

Key Number Part Number Description
1 A17503 "Bowl and Frame, Model I-175XL2 w/Std. Tires"
2 AFB-00094 Bolt: 3/8 NC X 1” Flange Bolt
3 A123309-62L Cylinder Guard - Left Hand
4 A123309-62R Cylinder Guard - Right Hand
5 A123332L Left Cutting Edge
6 A123330 "Center Cutting Edge, Straight 1-1/8” x 12” x 63”"
A123330SER "Center Cutting Edge, Serrated 1-1/8” x 12” x 63”"
7 A123332R Right Cutting Edge
8 PB9P-NC-088-0275 Plow Bolt: 7/8 NC X 2-3/4”
9 AFB-00018 "Bolt, 1” NC x 3” long
10 A123357 "Bank Shaver/router bit Reversible, L & R"
11 AFN-00012 Nut: 1” NC
12 AFN-00019 Nut: 7/8” NC
13 A125019 Grease fitting 1/4-28 x .54” long
14 A125026 Bulkhead nut 1/8 n.p.s.m.
15 A123309-89 Single hole tab
16 A125022 18” Grease line
17 PB9P-NC-088-0225 Plow Bolt: 7/8 NC X 2 1/4"
