I-175 XL2

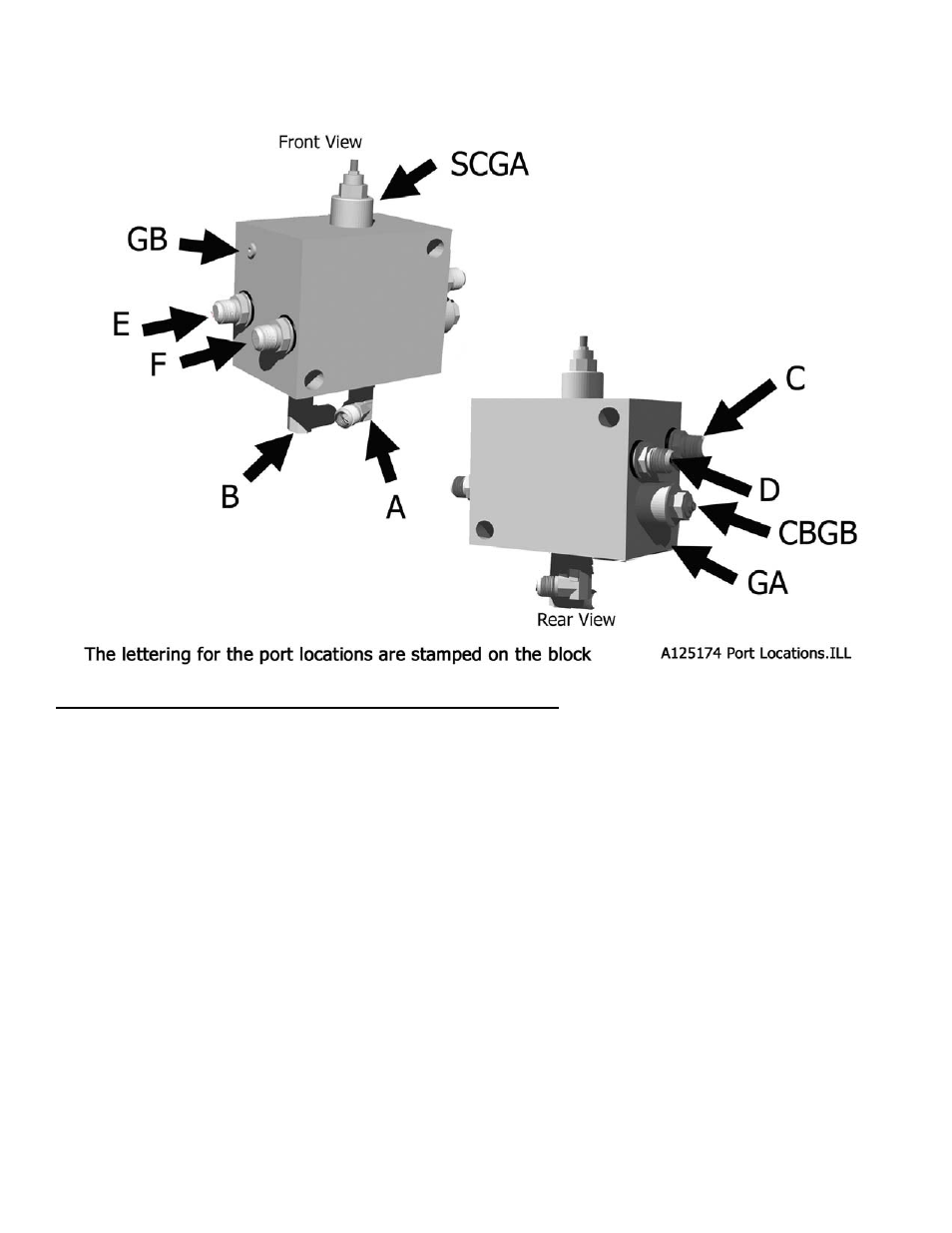

Hydraulic Valve Assembly Ports
Key Number Description
A Supply Line
B Pushoff Cyl. (Rod End)-Apron Cyl., Right side (Rod
End)-Supply Line
C Pushoff Cylinder, (Base End)
D Apron Cylinder, Right Side, (Base End)
E Apron Cylinder, Left side, (Rod End)
F Apron Cylinder, Left side, (Base End)
CBGB Counterbalance Valve, adjusttable
SCGA Sequence Valve, adjustable
GA Pressure test port
GB Pressure test port
