I-175 XL2

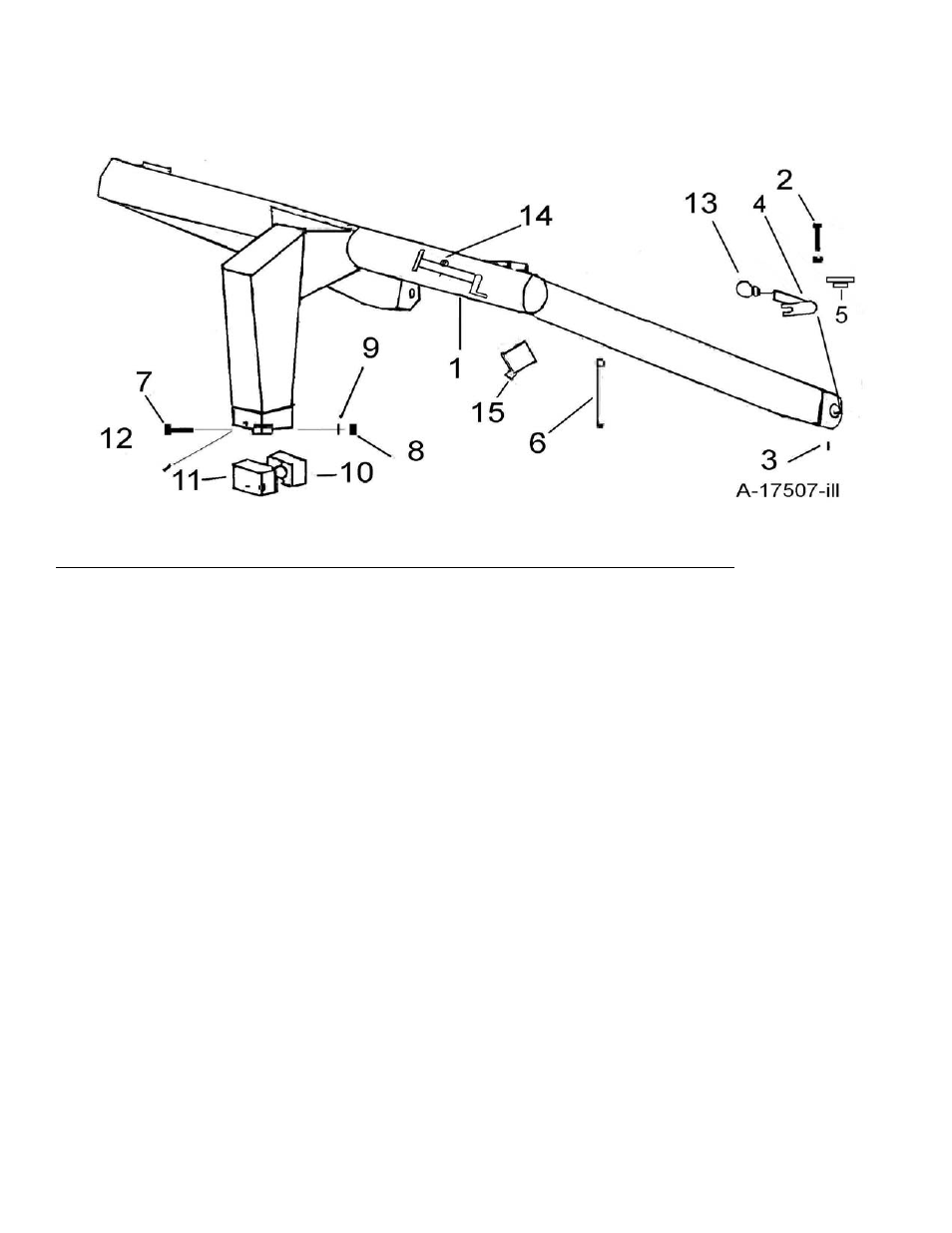

Gooseneck Assembly
Key Number Part Number Description
1 A17507 Gooseneck Frame
2 AFB-00079 Bolt, 5/8 NC X 1 1/2" Gr. 8
3 14505 Grease Zerk - Straight
4 A123321-09 Main Frame Pin
5 A123358 Bushing Pin Keeper
6 A123230-20 Travel Lock
7 AFB-00081 "Bolt, 7/8”NF x 5” Lg. Grade 5"
8 7597 "Nut, 7/8”NF"
9 8125 Lockwasher 7/8”
10 A14002 Cast Socket Half - Rear
11 A14003 Cast Socket Half - Front w/Zerk Hole
12 A2206 Grease Zerk - Long Shank
13 A123320-08 "Bushing, 3 ID X 3.5 OD X 3"
14 OPT-00001 Hitch Jack
15 A125006 Safety Link Pin
