I-175 XL2

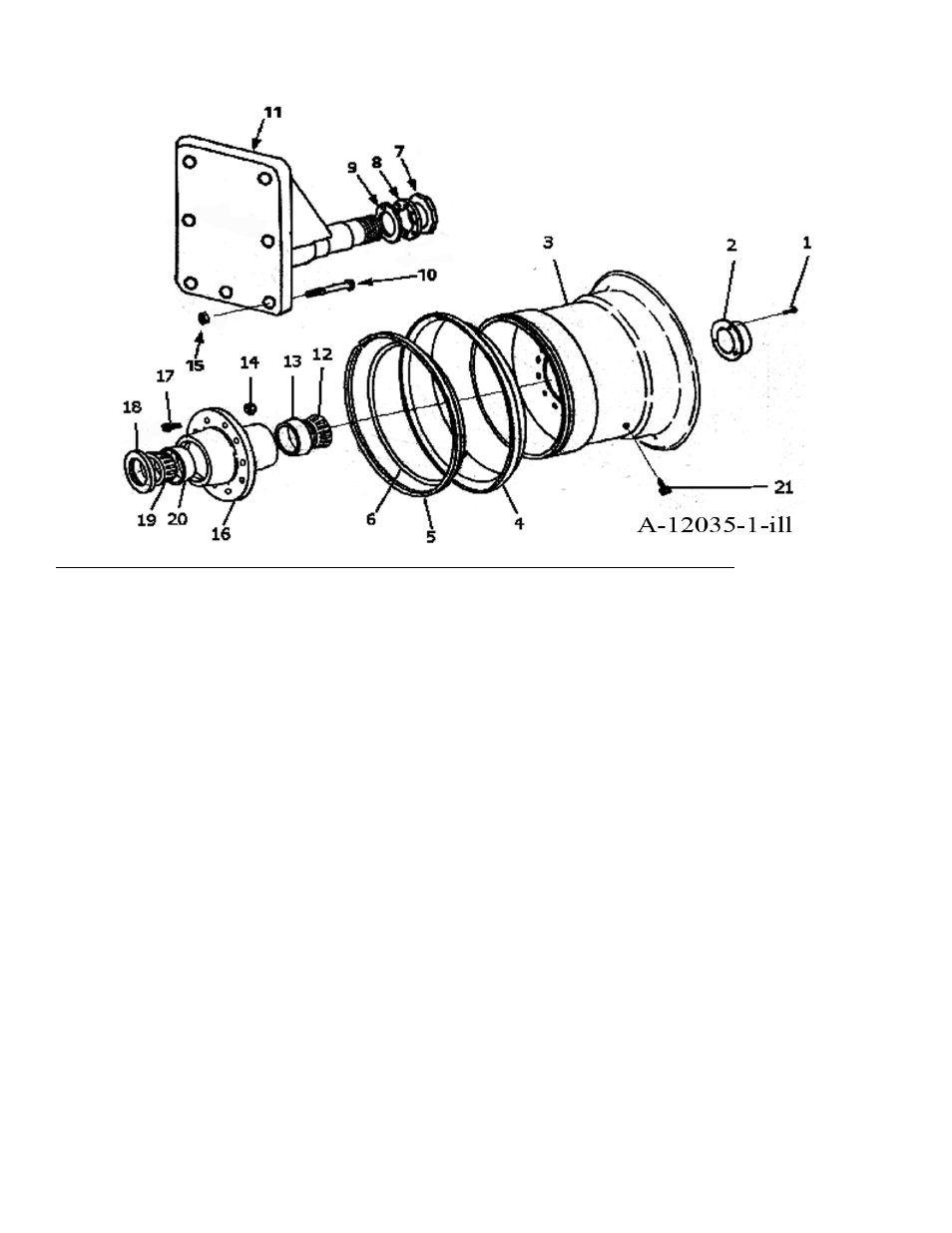

Rear Wheel & Hub Assembly with 29.5 x 25 inch Tire
Key Number Part Number Description
1 AFB-00082 Bolt 5/16” NC X 1/2” Lg.
2 A14004 Hub Cap
3 A12036 Wheel Ass’y. 25” x 25”
4 A12041 Side Ring
5 A12042 Lock Ring
6 A12047 O-Ring
7 A10048 Spindle Nut
8 A10049A Lock Collar
9 A10172 Nut with Lock Pin
10 AFB-00067 Bolt 1-1/4” NF X 7-1/2” Lg.
11 A123350 Spindle 5-3/4”
12 A125001 Bearing Cone
13 A125002 Bearing Cup
14 A12051 Lug Nut
15 AFN-00009 Lock Nut: 1-1/4” NF
16 A12035 Hub
17 A12050 Lug
18 A12037 Grease Seal
19 A125003 Bearing Cup
20 A125004 Bearing Cone
21 A14016 Valve Stem
