I-175 XL2

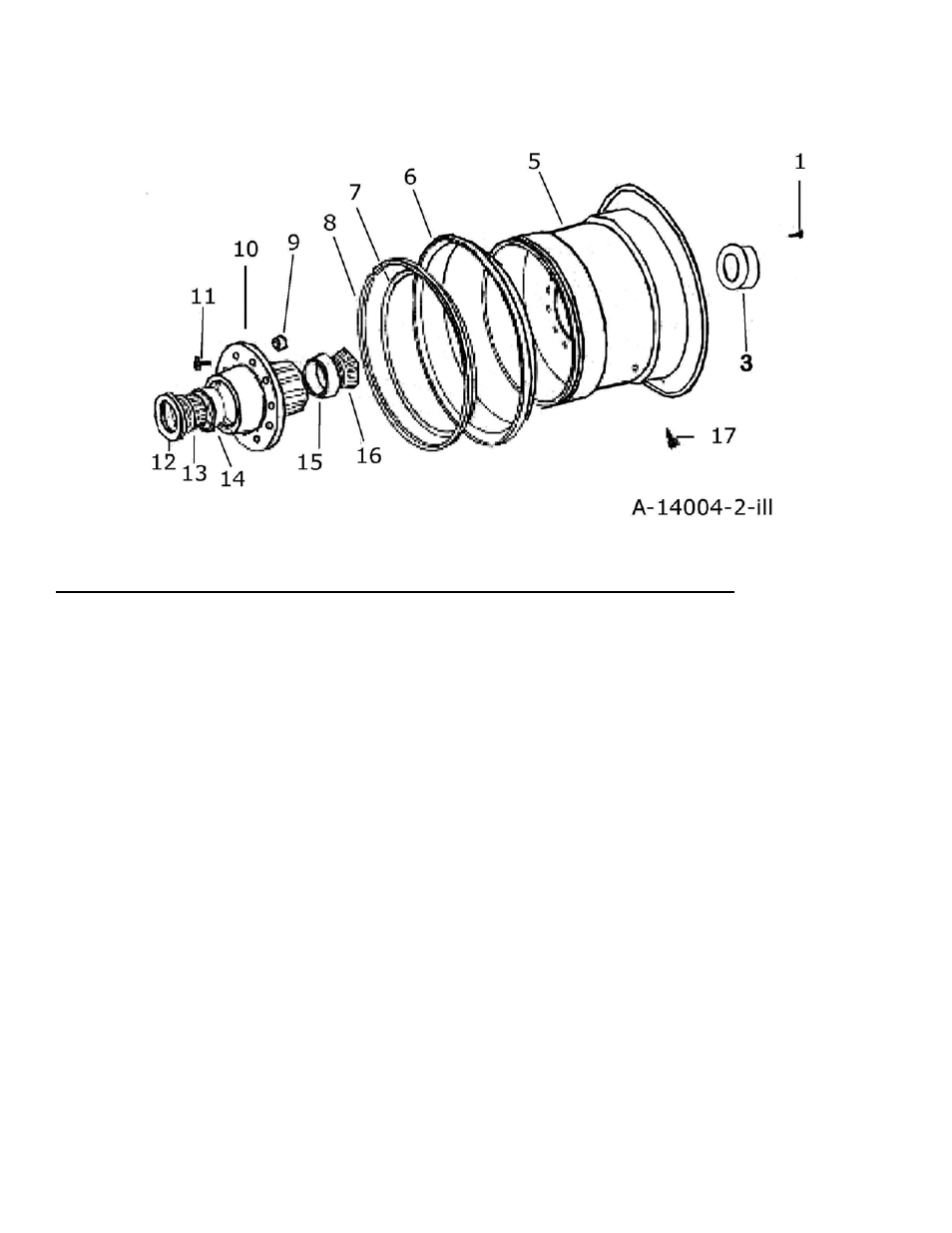

Front Wheel & Hub Assembly
FRONT WHEEL AND HUB ASSEMBLY W/20.5-25 STANDARD TIRE
Key Number Part Number Description
1 AFB-00080 Bolt 5/16” NC x 1/2”
3 A14004 Hub Cap
5 A14035 Wheel 17” x 25”
6 A14036 Side Ring for 17” x 25” Wheel
7 A14008 “O” Ring
8 A14038 Lock Ring
9 A10046 Lug Nut
10 A14010 Hub
11 A10176 Stud
12 A14011 Grease Seal
13 A14012 Bearing Cone
14 A14013 Bearing Cup
15 A14014 Bearing Cup
16 A14015 Bearing Cone
17 A14016 Valve Stem
Ashland Industries Toll-free:877-634-4622 Fax:715-682-9717
Page #11
