I-175 XL2

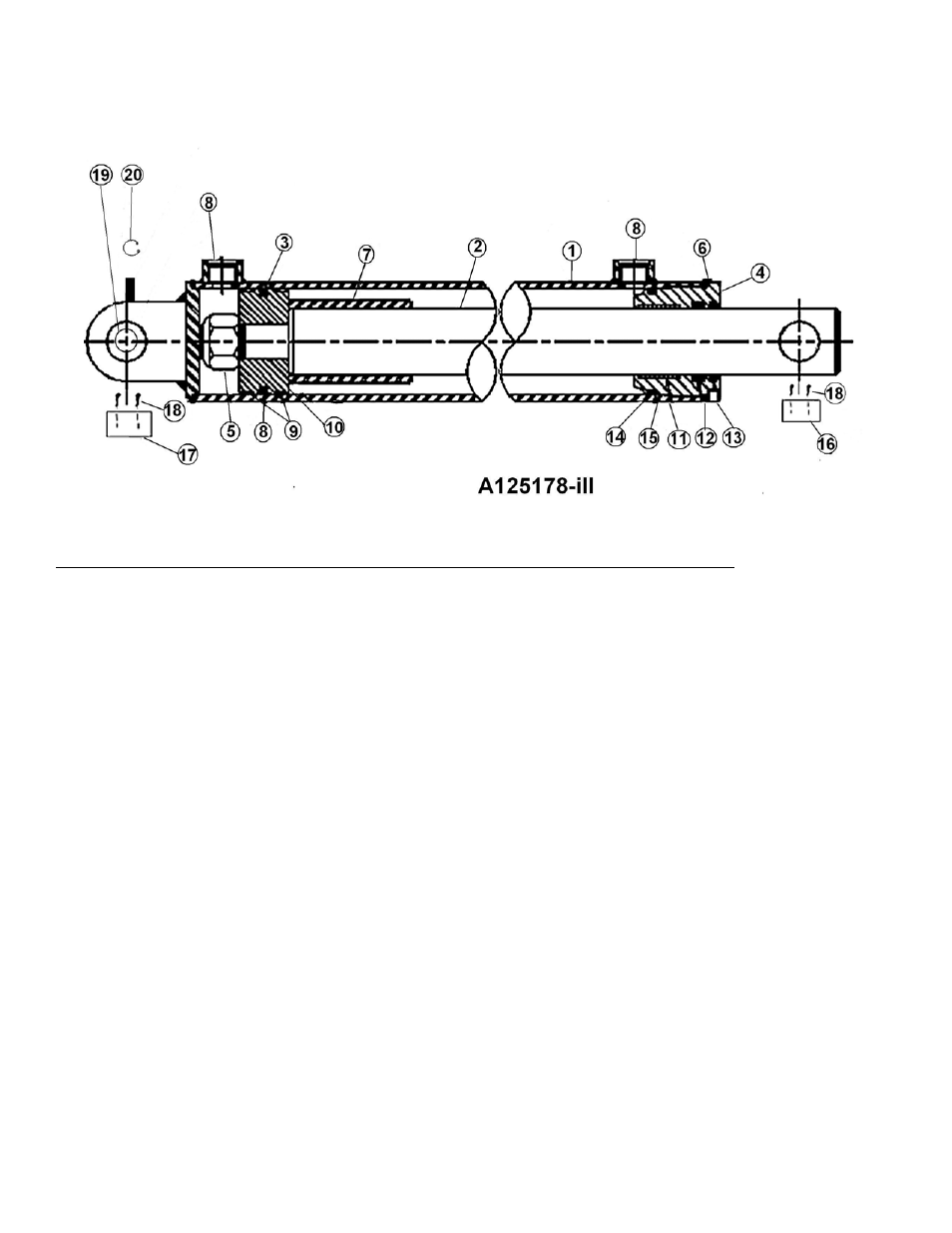

Pushgate Cylinder 4" Bore X 60" Stroke Part # A125178
Key Number Part Number Description
1 A123360-01 BARREL
2 A123360-02 ROD
3 A123360-03 PISTON
4 A123360-04 GLAND
5 A123360-05 LOCK NUT
6 A123360-06 SCREW
7 A123360-07 SPACER SLEEVE
8 A123360-08 PISTON SEAL
9 A123360-09 WEAR RING
10 A123360-10 O-RING
11 A123360-11 WEAR RING
12 A123360-12 ROD SEAL
13 A123360-13 WIPER
14 A123360-14 O-RING
15 A123360-15 BACK-UP RING
16 A123323-38 Rod End Pin 5-1/16 x 1-1/2
17 A123323-41 Barrel End Pin 4-9/16 x 1-1/2
18 AFP-00001 1/4 x 3 Cotter Pin
19 A125178-35 Bearing
20 A125178-36 Snap Ring
A123360-16 "SEAL KIT, INCLUDES ITEMS 8 - 15"
