I-175 XL2

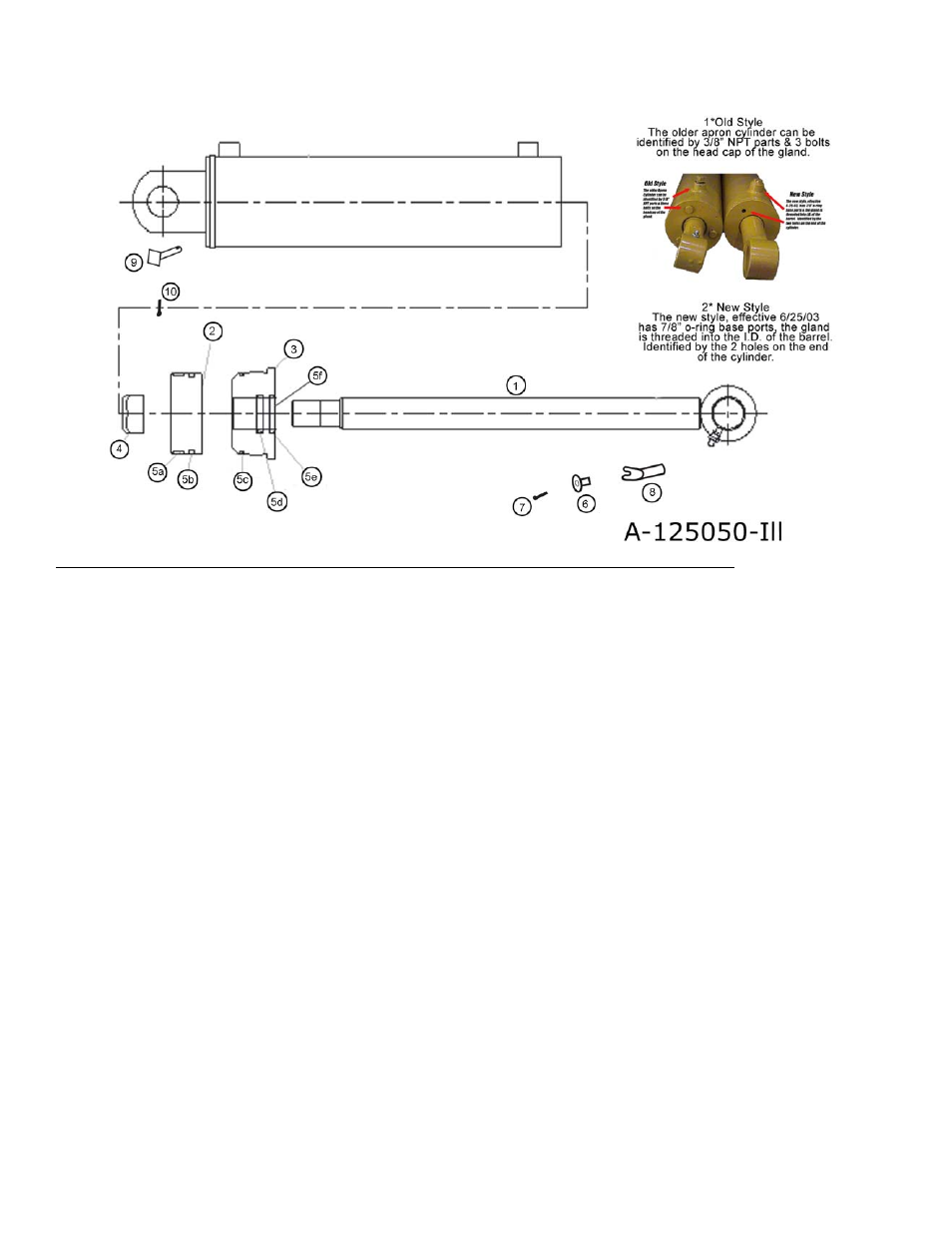

Apron Cylinder 4 x 13 Cylinder Part # A125050
Key Number Part Number Description
1 A125050-01 Rod 1-3/4” with welded eye
2 A125050-02 Piston
3 A125050-03 "Gland, Threaded "
4 A125050-04 "Lock Nut, 1-1/8” NF"
5 A125050-05 "Seal Kit, a-f"
5a A125050-05a Nylon Wear Ring
5b A125050-05b FSP Seal
5c A125050-05c O-Ring
5d A125050-05d Backup Washer
5e A125050-05e Hallite Rod Seal
5f A125050-05f Snap-in Rod Wiper
6 A123351 "Bushing, Retaining Flange 9/16 ID x 3/4 OD, 3/4 Lg."
7 AFB-00015 "HHCS 1/2”NC x 1-1/2” Bolt, Gr. 8"
8 A123362 "Pin, 1-1/2” with slot for keeper bushing"
9 A123363 Pin: 1-1/2” square head
10 8602 "Pin, Cotter1/4” x 2” Zinc"
