I-175 XL2

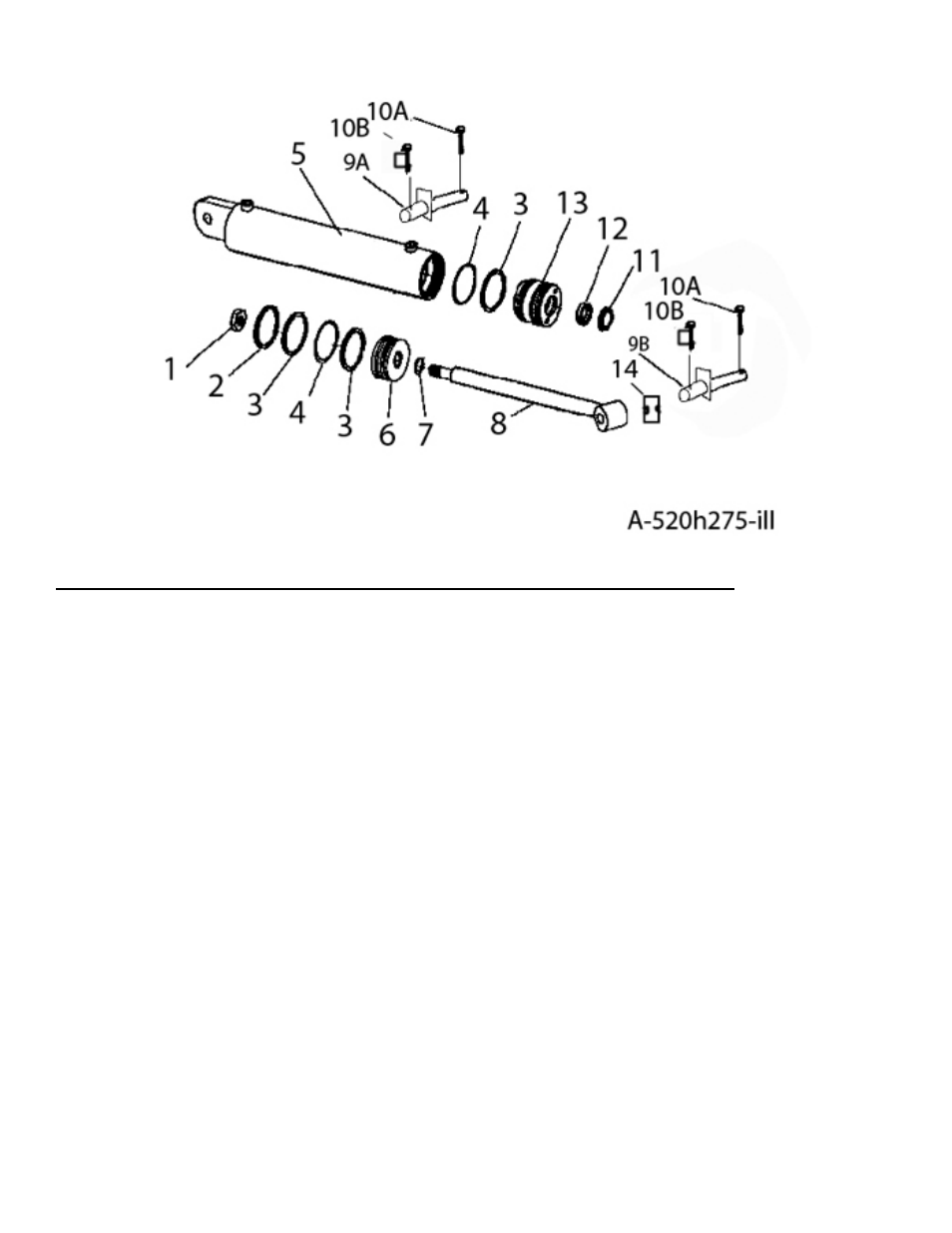

Hydraulic Lift Cylinder 5 X 20 Part Number A520H275
Key Number Part Number Description
1 A400H17 "Nut 1-1/4” NF, Lock Type"
2 A400H04 "Cast Ring, 5” OD"
3 A400H05 "Back-up Washer, 5” OD x 1/4”"
4 A400H06 "“O” Ring, 5” OD x 1/4”"
5 A80H35 Barrel Assembly with 2” holes
6 A80H01 "Piston, 5” OD"
7 A60H52 "“O” Ring, 1-1/4” OD x 1/16”"
8 A80H32 Shaft 2” Dia.
9A. A123372 "Pin, upper"
9B. A123335 "Pin, lower"
10A. AFP-00001 "Cotter Pin, 1/4” x 3”"
10B. A125006 SafetySnap Pin
11 A80H06 Wiper Seal 2” ID
12 A80H04 Seal 2” ID
13 A80H05A Head Gland
14 A123231-88 Spacer for Lower Pin
A80H07 "Packing Kit, Containing: A400H04 (1), A400H05 (3),
A400H06 (2), A460H52 (1), A80H04 (1), A80H06 (1)
