KEY NO. PART NO. DESCRIPTION
1. A123326-1 Piston Rod: 2-1/2”
2. A123326-2 Barrel Weldment
3. AFN-00018 Nut: Lock 1-1/2-12
4. A123324-4 Piston
5. A123324-3 Gland
6. A123324-6 Rod Seal
7. A123324-5 Wear Band
8. A123324-8 Wear Ring
9. A123324-9 Piston Seal
10. A123324-10 O-Ring
11. A123324-11 O-Ring
12. A123324-7 Rod Wiper
AHS-00140 Seal Kit (Items 6-12)
13. A123335 Pin, 2” x 10-1/2” lg.
14. AFP-00001 Cotter Pin, 1-4” x 3”

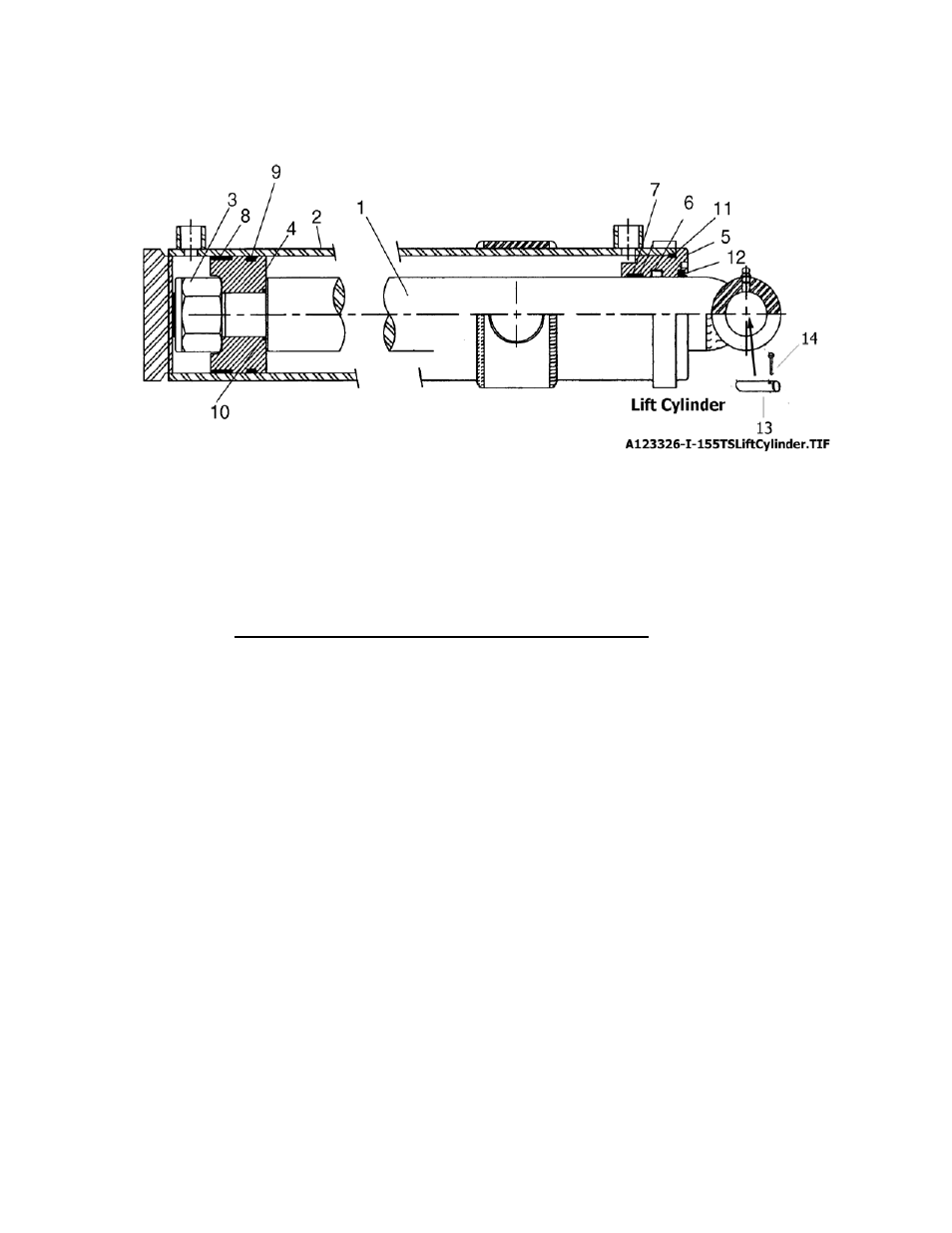

MODEL I-155 TS
LIFT CYLINDER 5 X 20”
PART NO. A123326
LIFT CYLINDER 5 X 20”
