S.N. 20496 & up (7 hole Spindle)

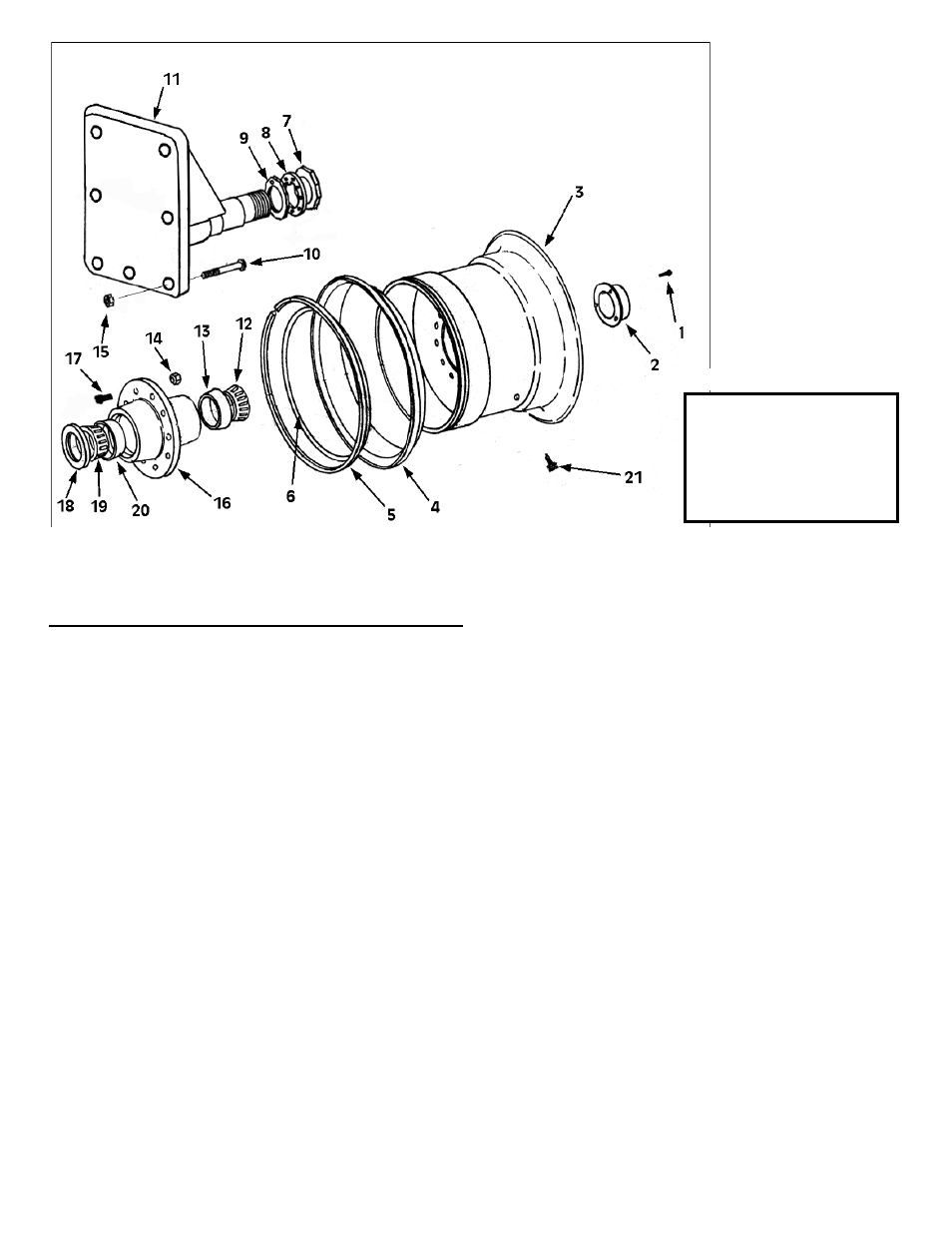

REAR WHEEL and HUB ASSEMBLY
MODEL I-155 TS
KEY NO. PART NO. DESCRIPTION
1. AFB-00080 Bolt 5/16” NC x 1/2” Lg.
2. A14004 Hub Cap
3. A12036 Wheel Ass’y. 25” x 25”
A12036-1 Center Dish Weldment, Flat
A12036-2 Six Gussets for Center Dish
4. A12041 Side Ring
5. A12042 Lock Ring
6. A12047 O-Ring
7. A10048 Spindle Nut
8. A10049A Lock Collar
9. A10172 Nut with Lock Pin
10. AFB-00067 Bolt 1-1/4” NF X 7-1/2” Lg.
11. A123350 Spindle
12. A125001 Bearing Cone (Timken# H715348)
13. A125002 Bearing Cup (Timken# H715311)
14. A12051 Lug Nut
15. AFN-00009 Lock Nut: 1-1/4” NF
16. A12035 Hub
17. A12050 Lug
18. A12037 Grease Seal (National# 416039)
19. A125003 Bearing Cone (Timken# HM624749)
20. A125004 Bearing Cup (Timken# HM624710)
21. A14016 Valve Stem
Some units prior to this serial
number were upgraded to a 7
spindle by the customer via a
special upgrade offer. Besure
to check if unit has 7 bolt
spindle base plate.
IMPORTANT
