1

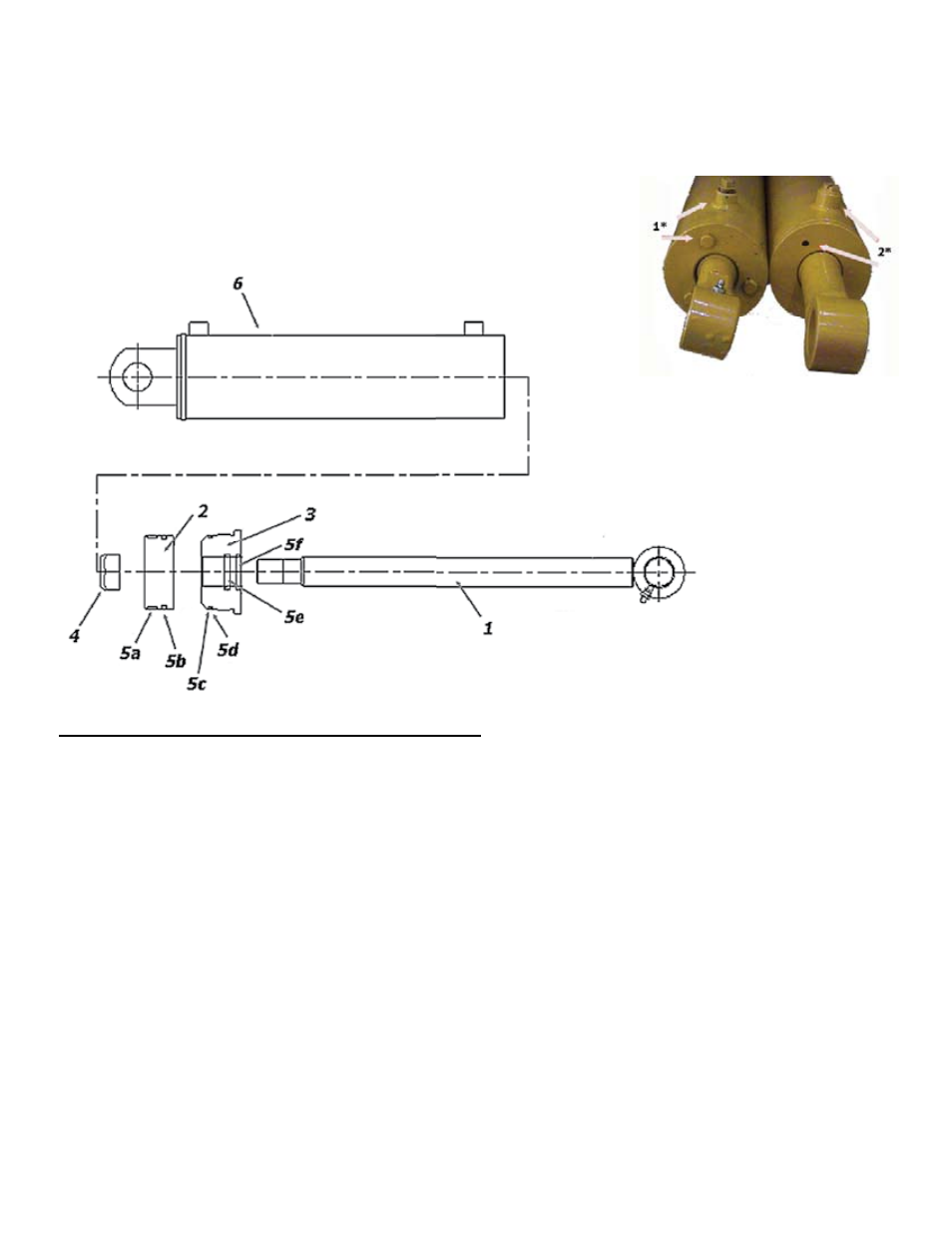

ITEM PART ITEM DESCRIPTION
1 A125050-01 Rod 1-3/4” with welded eye
2 A125050-02 Piston
3 A125050-03 Gland, Threaded
4 A125050-04 Lock Nut, 1-1/8” NF
5 A125050-05 Seal Kit, a-f
A125050-05a Nylon Wear Ring
A125050-05b FSP Seal
A125050-05c O-Ring
A125050-05d Backup Washer
A125050-05e Hallite Rod Seal
A125050-05f Snap-in Rod Wiper
A123362 Pin, 1-1/2” with slot for keeper bushing
8602 Pin, Cotter1/4” x 2” Zinc
A123351 Bushing, retaining fl ange, 9/16”ID x 3/4”OD, 3/4” L
A123363 Pin: 1-1/2” square head
AFB-00015 HHCS 1/2”NC x 1-1/2” Gr. 8
If you have 3 capscrew headcap refer to the next page.
2* NEW STYLE
The new style, ef-
fective 6/25/03, has
7/8” o-ring base
ports & the gland is
threaded into I.D. of
the barrel. Identifi ed
by the 2 holes on the
end of the cylinder.
APRON CYLINDER 4”x13”
Part #A125050
s.n. 20750 and above
effective 06/03
1* OLD STYLE
The older apron
cylinder can be iden-
tifi ed by 3/8” NPT
ports & 3 bolts on
the headcap of the
gland.
