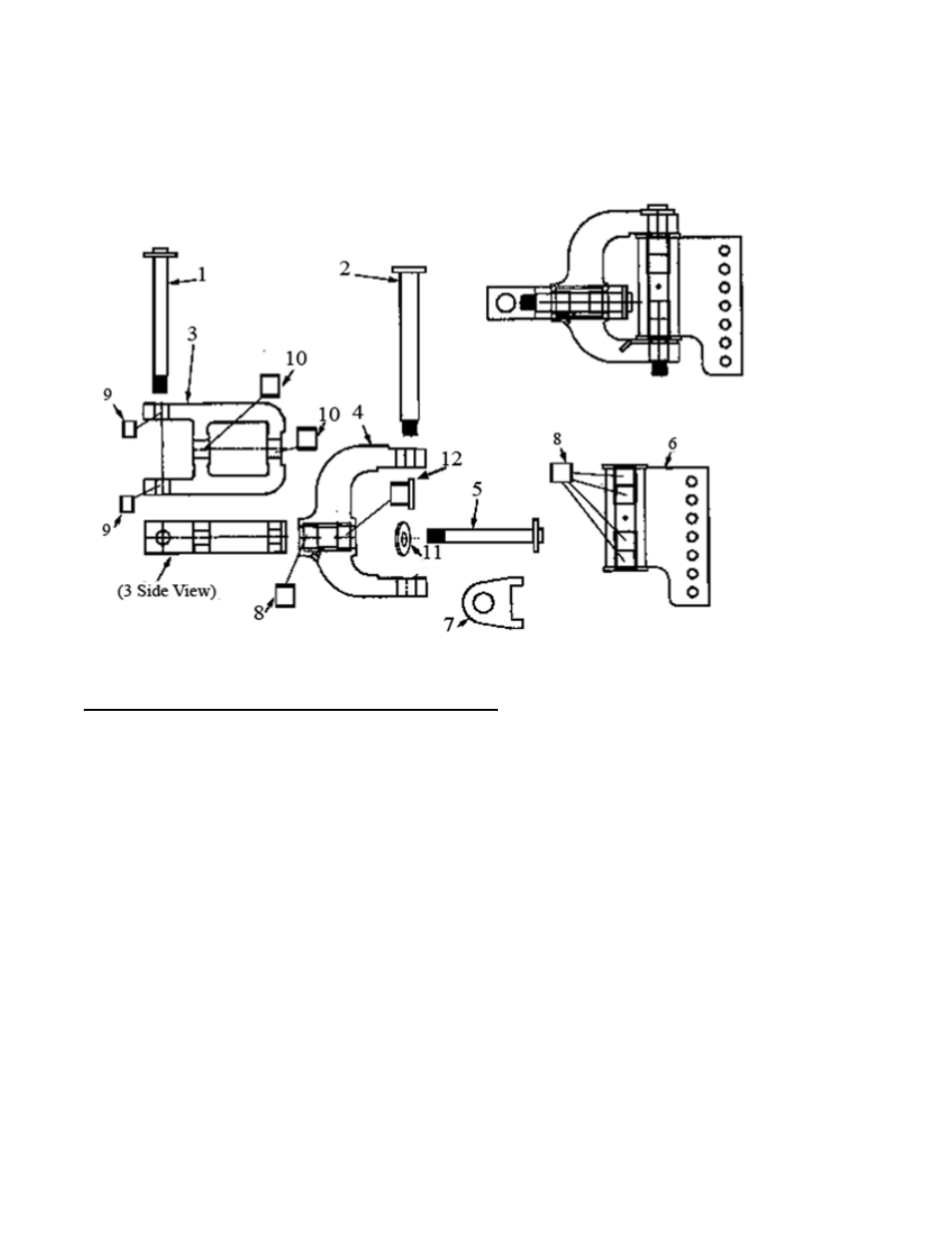

SWIVEL HITCH ASSEMBLY
I-155 TS
KEY NO. PART NO. DESCRIPTION
1. A123299-08 Pin: Four Ear Drawbar To Hitch
A123299-07 Pin: Two Ear Drawbar To Hitch
AFN-00014 Nut: 1-1/2” NC Slotted
2. A123299-06 Pin: Sq. Tab Head 2 X 18-1/2”
AFN-00018 Nut: 1-1/2” NF Top Lock
3. A123299-03R A-Frame Hitch
4. A123299-02 C-Frame Hitch: Offset
5. A123299-05 Pin: Sq. Tab Head 1-1/2 NF X 12-1/2”
AFN-00018 Nut: 1-1/2” NF Top Lock
6. A123299-01 Vertical Mounting Tube: 7 Hole
7. A123299-04 Wear Pad With Locking Legs
8. ABS-00001 Bushing: Spring 2” ID X 2-3/8” OD
9. A123299-09 Bushing: 2” OD x 1-1/2” ID x 1-1/2” (2 req’d)
10. A123299-10 Bushing: 2-3/8” OD x 2” ID x 1-1/2” (2 req’d)
11. A123299-11 Washer
12. A123299-14 Thrust Bushing with Flange, 2” ID x 2-3/8” OD
Up to Serial Number 20495
I-155TS Front Unit
IMPORTANT
Some units prior to this serial number were upgraded
to a H.D. cast type yoke hitch (page 6) by the customer
Please determine if the entire yoke hitch is casted or
flat steel. The Casted Hitch has “OFCO” casted into the
A-Frame Hitch
