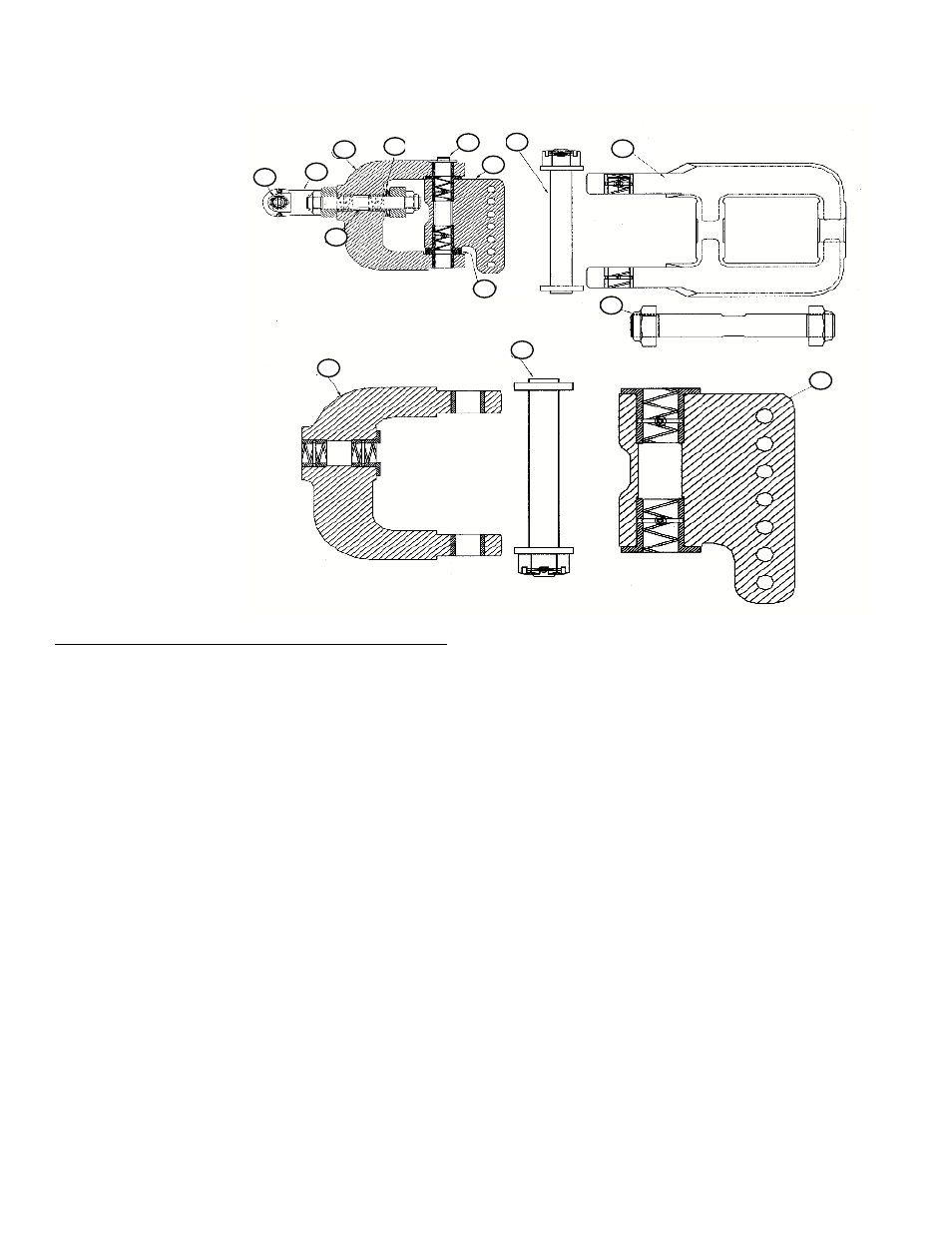

I-155TS SUPER SWIVEL HITCH ASSEMBLY
KEY NO. PART NO. DESCRIPTION
1. A1063527 Super Yoke hitch, Includes 2 & 3, (w/o 4,6,7 & 1 ea.
of 8) (Required 1)
2. A1062280 Rear Super Yoke, Assembly (1 required)
A1063177 Bushing ( 2 required)
A1063144 Bushing, Spiral (2 required)
14505 Fitting, Grease (2 required)
3. A1063281 Front Super Yoke, Assembly (1 required)
A1063145 Busing, Spiral (2 required)
14505 Fitting, Grease (2 required)
4. A1063282 Pivot Pin Housing, Assembly (1 required)
A1063143 Bushing, Spiral (2 required)
14505 Fitting, Grease (2 required)
5. A1063283 Pin, Horizontal Assembly with Nuts (1 required)
A1063212 Pin only (1 required)
A1044362 Nut, Lock Nylon, 2-12 UNF (2 required)
6. A1063284 Pin, Vertical Assembly with nut,wash,c.pin (1 required)
A1063214 Pin only (1 required)
A1063259 Washer (1 required)
ARF03024-00260 Nut, Slotted. Hex 2.00 NC G5 (1 required)
ARF06020-00083 Pin, Cotter .375” x 4.00” (1 required)
7. AB581 Hitch Pin, Assembly (1 required)
AB580 Pin Weldment (1 requried)
AB195 Washer, 3.00”OD x 1.56” (1 required)
AFN-00014 Nut, Slotted, 1.5” NC G5 (1 required)
ARF06020-00060 Pin, Cotter
8. A1063146 Washer, Thrust (4 required)
A1063285 Complete Hitch
Some units prior to this serial
number were upgraded to a H.D.
cast type yoke hitch (page 6) by
the customer Please determine
if the entire yoke hitch is casted
or flat steel. The Casted Hitch has
“OFCO” casted into the A-Frame
Hitch
IMPORTANT
Used on scrapers up to March 2003
