Board layout, Top view – Acer 420 User Manual
Page 12
4
Chapter 1

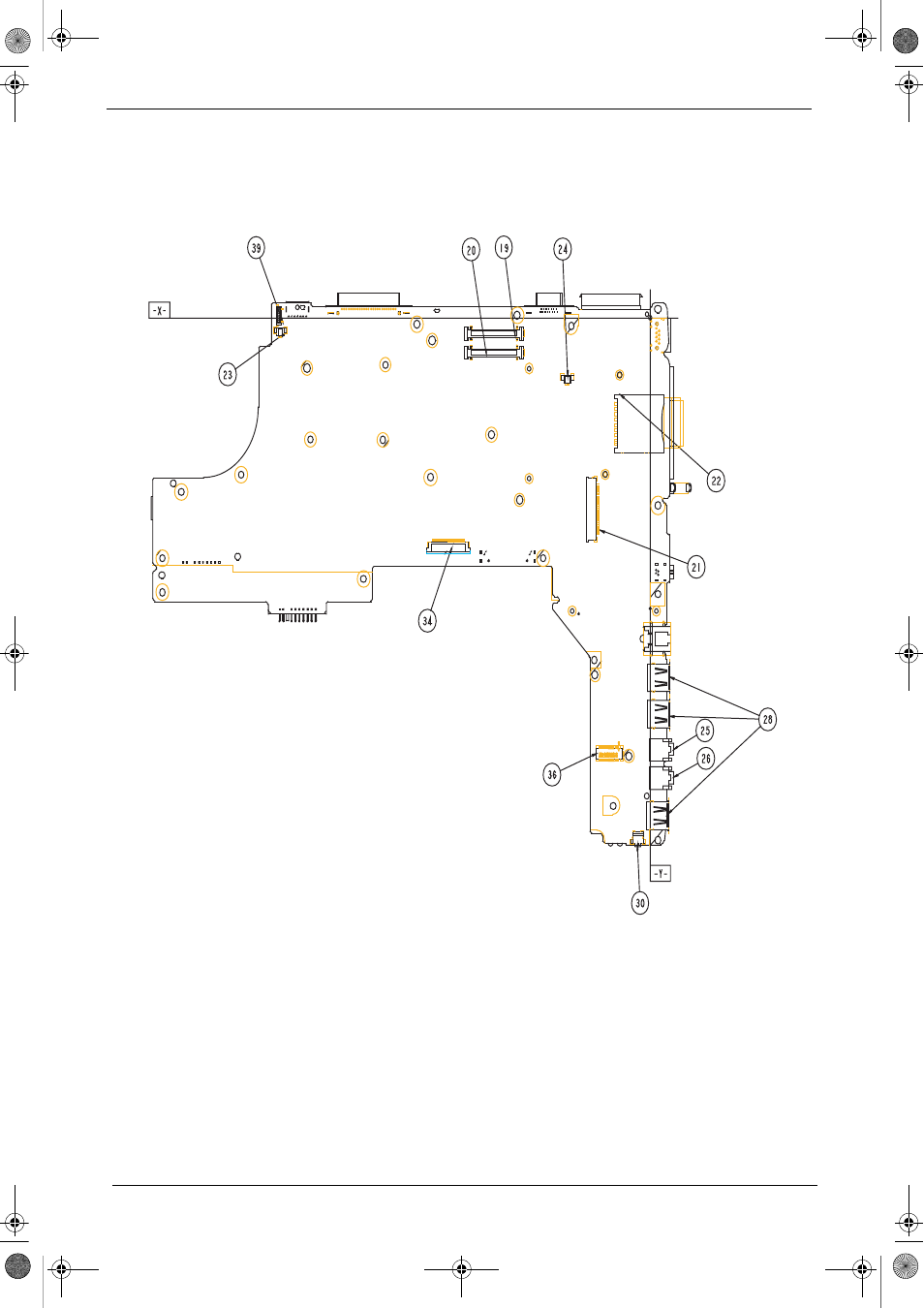

Board Layout
Top View
23-JP1
Speaker L connector
39-JP33
Inverter connector
20-JP3
VGA board to B connector
19-JP2
VGA board to B connector
24-JP4
Speaker R connector
22-JP6
SD card connector
21-JP5
Keyboard connector
28-JP12, JP32, JP39
USB port connector
25-JP10
Audio out jack
26-JP9
Audio in jack
30-SW2
BT switch
36-JP11
MDC connector
34-JP7
Touchpad switch PCB
SG_TM420_Ch1.fm Page 4 Thursday, September 26, 2002 9:23 AM
