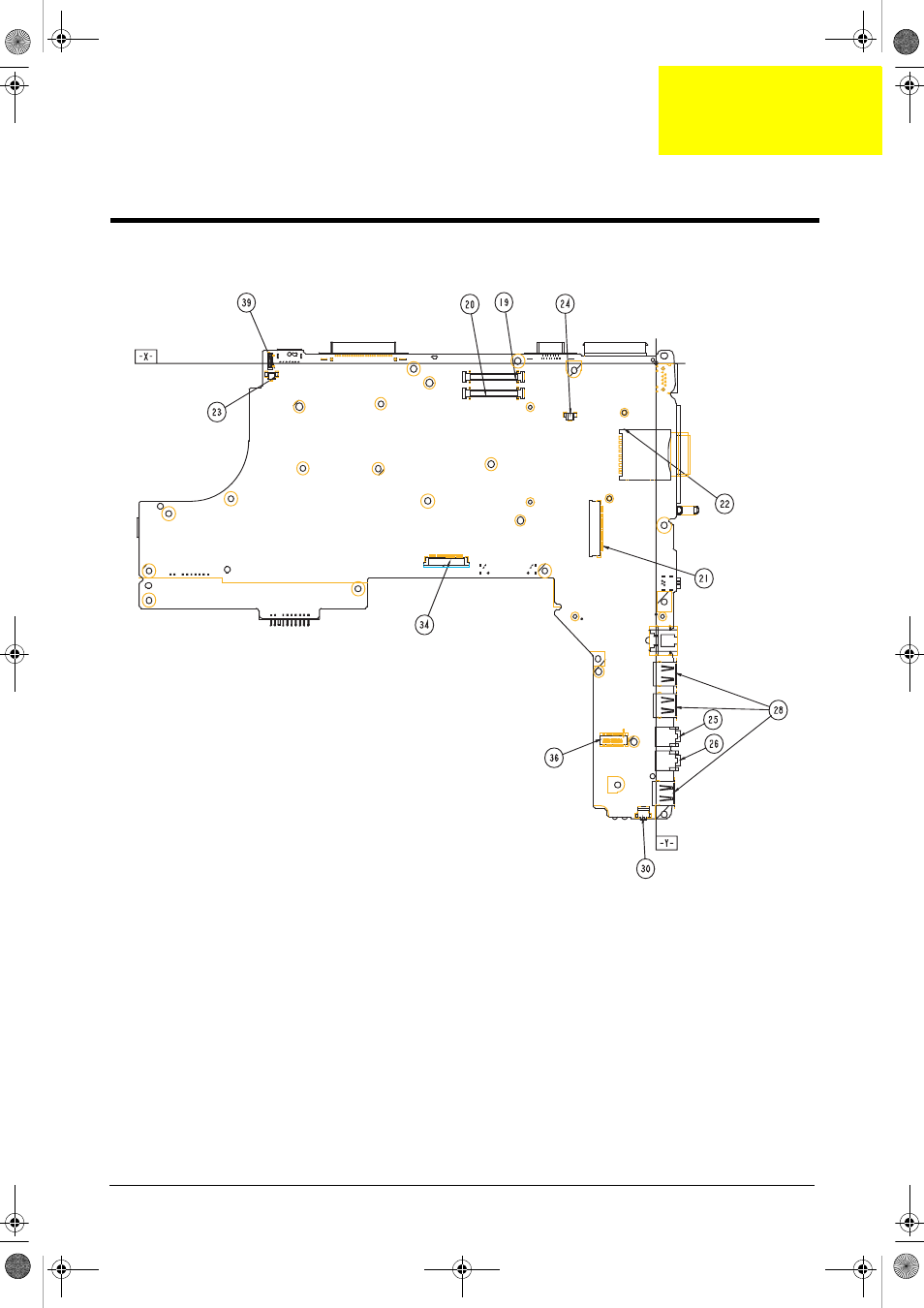

Top View
23-JP1
Speaker L connector
39-JP33
Inverter connector
20-JP3
VGA board to B connector
19-JP2
VGA board to B connector
24-JP4
Speaker R connector
22-JP6
SD card connector
21-JP5
Keyboard connector
28-JP12,
JP32,
JP39
USB port connector
25-JP10
Audio out jack
26-JP9
Audio in jack
30-SW2
BT switch
36-JP11
MDC connector
34-JP7
Touchpad switch PCB
Jumper and Connector Locations
