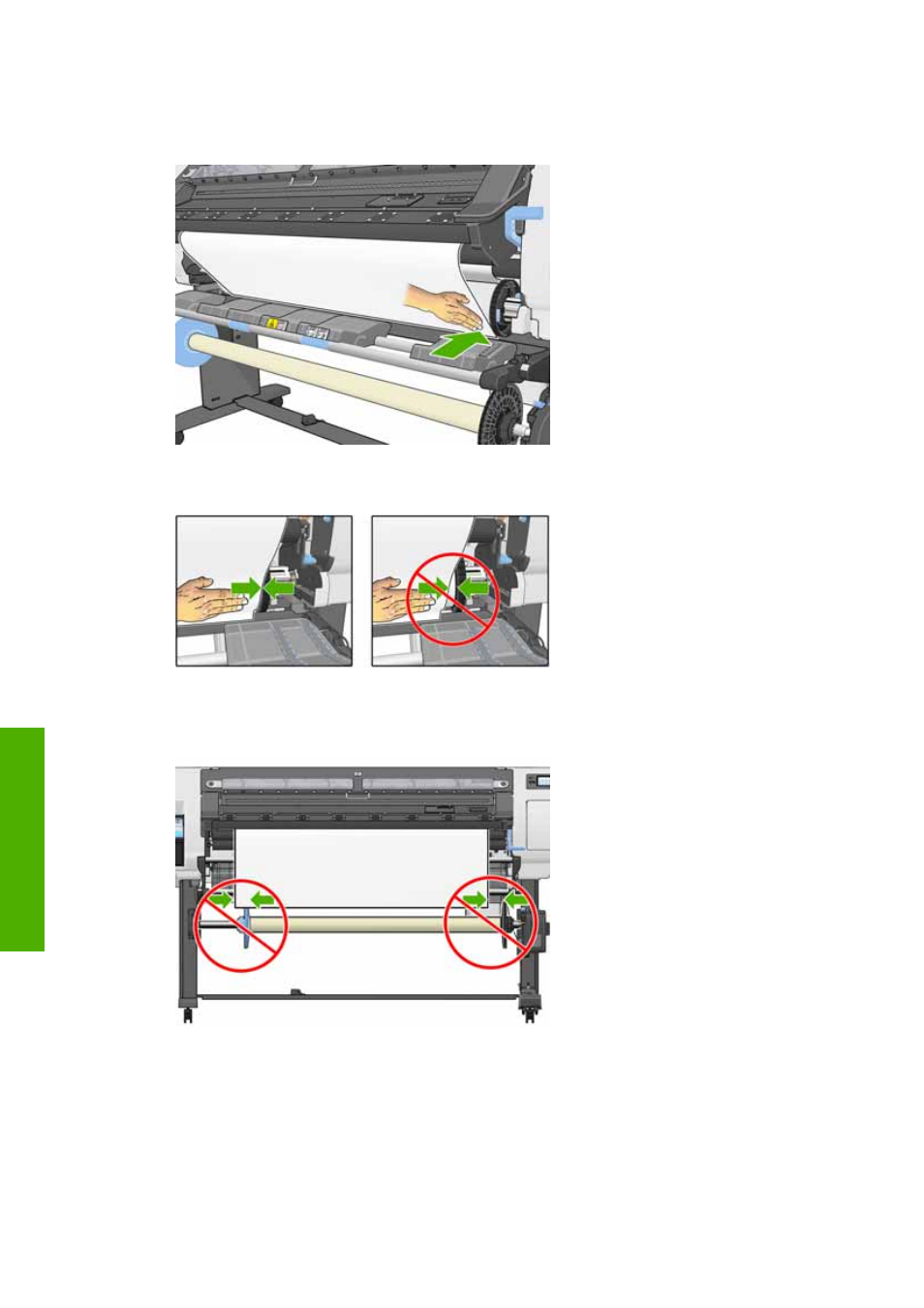

11. It is critical to the correct media loading onto the take up reel that the media is correctly aligned
with the blue stop and right spindle hub, especially for long print runs. Check that the media is
hanging centered between the blue stop and the right spindle hub.
12. Check that the right edge of the substrate is aligned with the right spindle hub, there must be no
space at the point shown between the two green arrows.
13. If it is not aligned, loosen the blue stop and the right spindle hub and align with the media edges.
If the core you are using is wider than the media, ensure that is centered, allowing an equal gap
on both sides.
30 Chapter 4 Handle the substrate ENWW
