The newly-created NFS mappings are stored as Active Directory objects and can be verified as follows:
1. Click Start > Administrative Tools > ADSI Edit.
2. On the Action menu, select Connect to....
3. In the Connection Settings dialog box, under Computer, select the radio button labeled Select or
type a domain or server: (Server|Domain[:port]).
4. In the Select or type a domain or server: (Server|Domain[:port]) field, type localhost:389 and
then click OK.

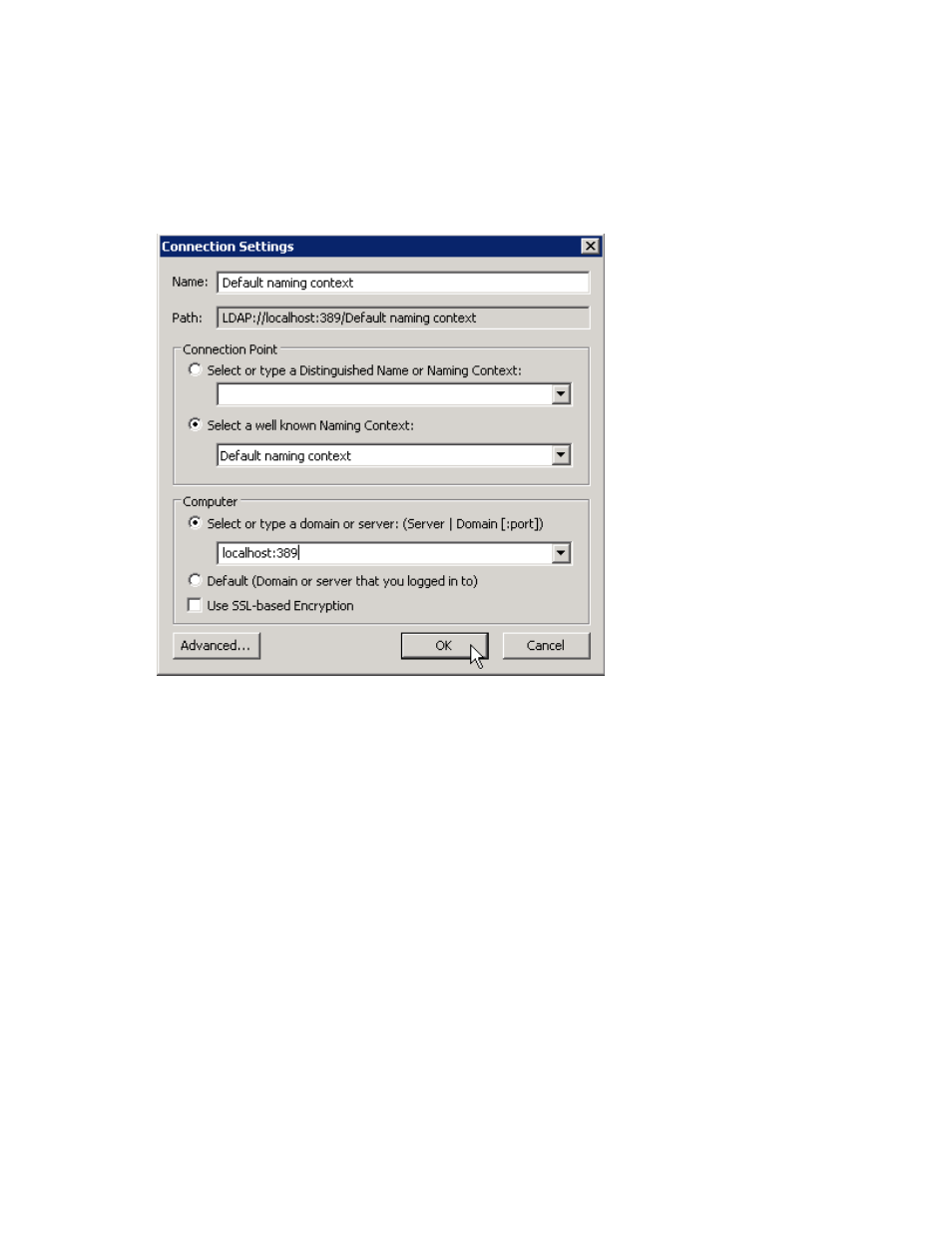

Figure 20 ADSI Edit Connection Settings dialog box
. 5. Expand the Default naming context [localhost:389] node to open CN=nfs, DC=nfs, and then
CN=Users.
The list of NFS-mapped users and groups appears under CN=Users. In the figure below, root, john
and mary are NFS mapped users. rootgroup and users are NFS mapped groups. These users and
groups must also exist on the UNIX system in order for NFS mapping to work correctly between UNIX
and Windows.
