Identify the public and private connections:

a.

Right-click one of the connections and select Status.

The connection status of the private connections will indicate Local in the IPv4 Connectivity
field; the connection status of the public-facing connections will indicate Internet in this field.

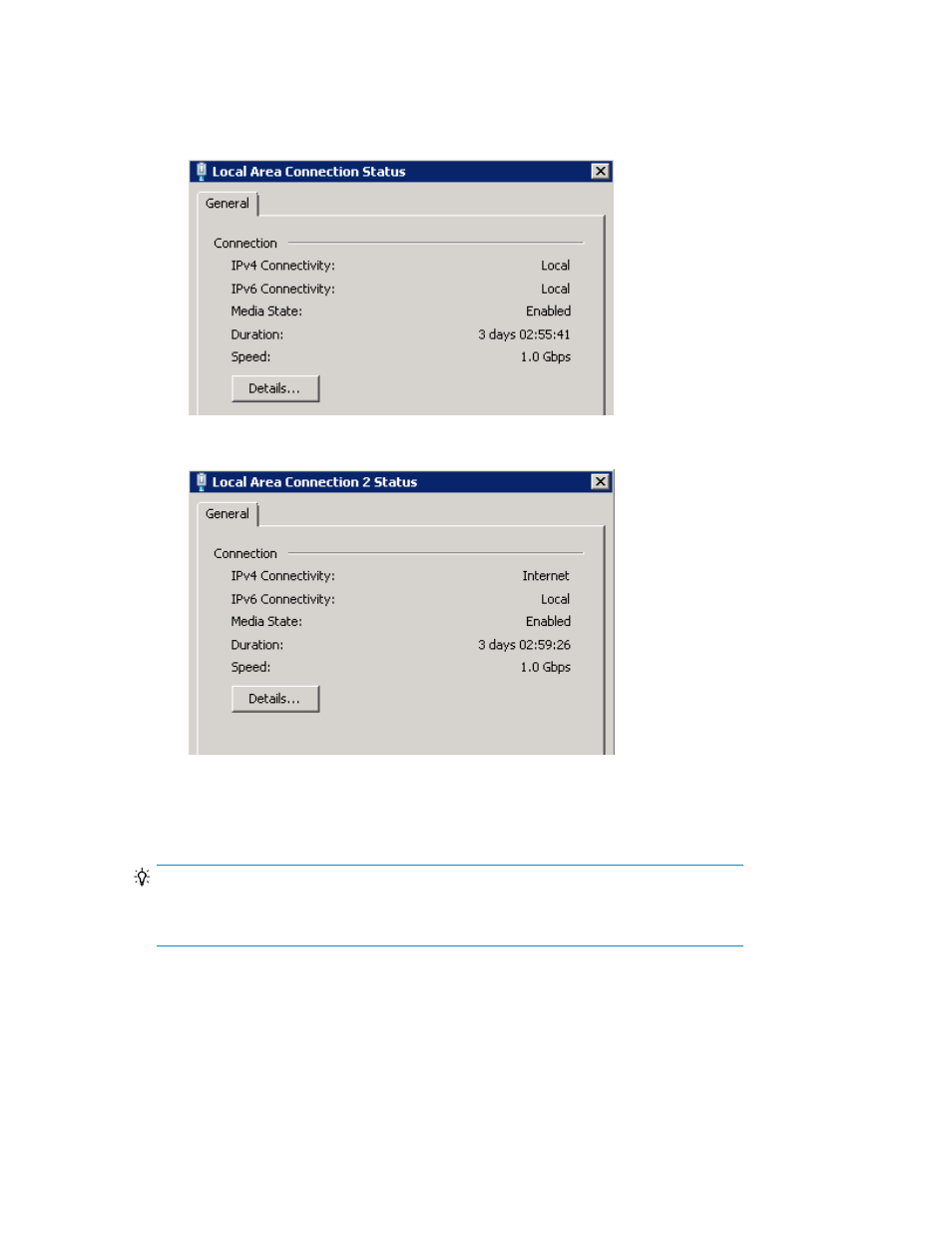

Figure 7 Private connection status

.

Figure 8 Public connection status

.

b.

After identifying the private and public connections, click Close.

TIP:

To more easily identify public and private network connections, rename them (for example,
Cluster Heartbeat, Public File Serve 1, and P4000 SAN 1).

Cluster configuration

28
