The Health, Workload, and Capacity icons appear colored next to each component to indicate
the values (see
“Dashboard color coding” (page 16) ). The values can be filtered by state by clicking
the Status Filter icons in the widget header. Components can also be sorted alphabetically or
numerically using the Sort By drop down list.

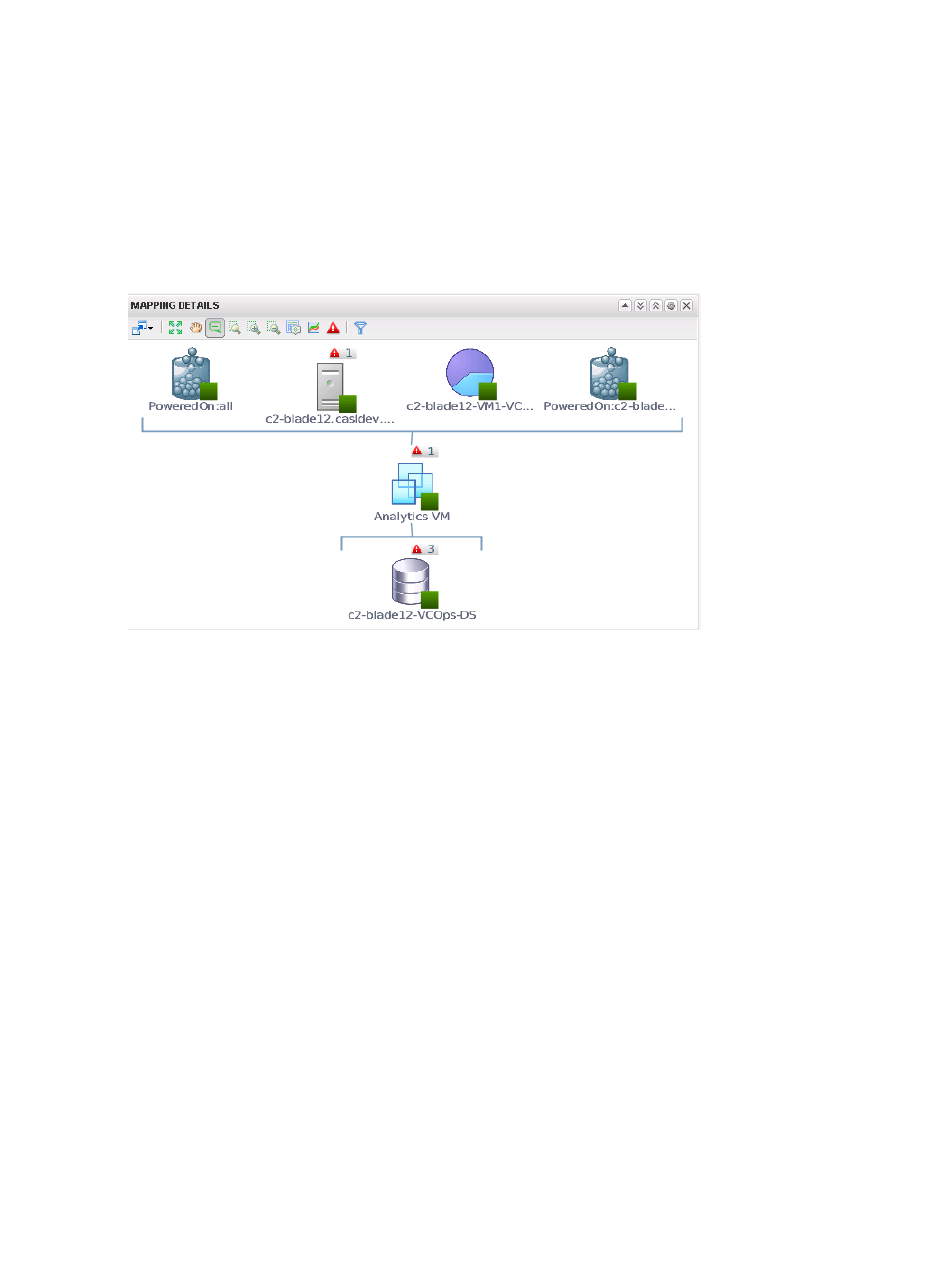

MAPPING DETAILS widget
This widget shows a health tree for the selected resource in the VM TO STORAGE MAPPING widget.
The selected resource appears in the center of the graphic of the widget and related resources
(treated as parents and children) are shown above and below the resource. When a resource is
selected, the metrics for the resource are shown in the SELECTED RESOURCE METRIC GRAPH widget.
