Page 22

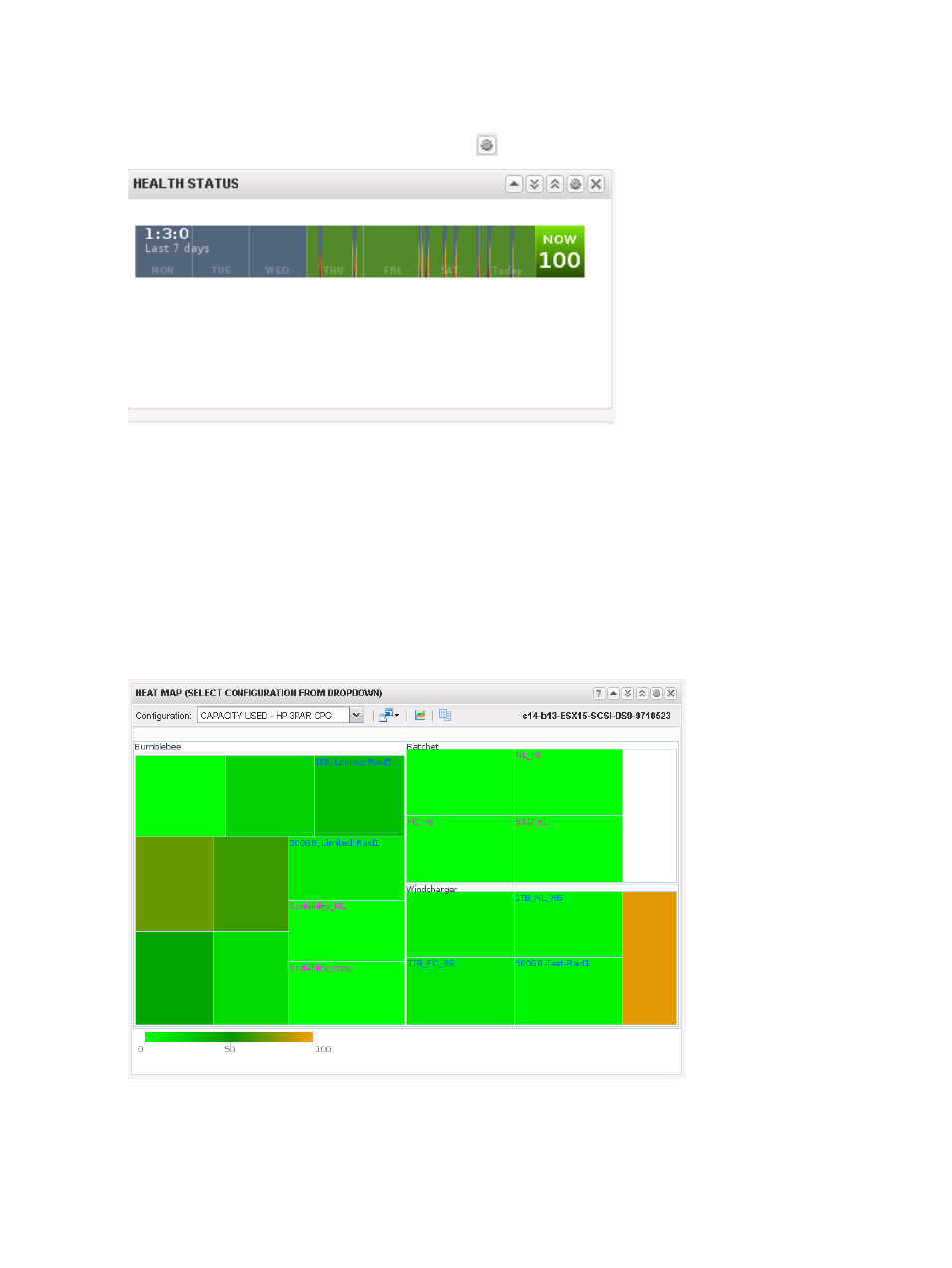

HEALTH STATUS widget
This widget shows a detailed representation of the health of the selected resource over time. The
resources are selected by clicking an icon in the HEALTH widget. The timeline and other parameters
can be changed using the Edit Widget button
(see
“Editing a dashboard widget” (page 16)
).
HEAT MAP widget
This widget shows a heat map of the selected Configuration. The following configurations are
available fro selection:
•
CAPACITY USED - HP 3PAR CPG
•
CAPACITY USED - HP 3PAR VOLUME
•
IOPS - HP 3PAR FC PORT
•
IOPS - HP 3PAR DISK DRIVE
•
IOPS - HP 3PAR VOLUME.
22
Dashboards
