HP Storage Troubleshooting dashboard
The HP Storage Troubleshooting dashboard is used to troubleshoot the storage system components.
The dashboard also provides summary information about VMs and how they map to HP storage
volumes, pools, disks and ports. The dashboard includes graphs for key performance metrics such
as IOPS and bandwidth, which are displayed in relation to the selected object of the VM to Storage
Mapping widget.
The dashboard incorporates customized widgets and interactions to display information on the
selected storage system or resource.
The following customized widgets are installed in the HP Storage Troubleshooting dashboard:
•
VIRTUAL MACHINES
•
VM TO STORAGE MAPPING
•
MAPPING DETAILS
•
SELECTED RESOURCE METRIC GRAPH
•
ALERTS

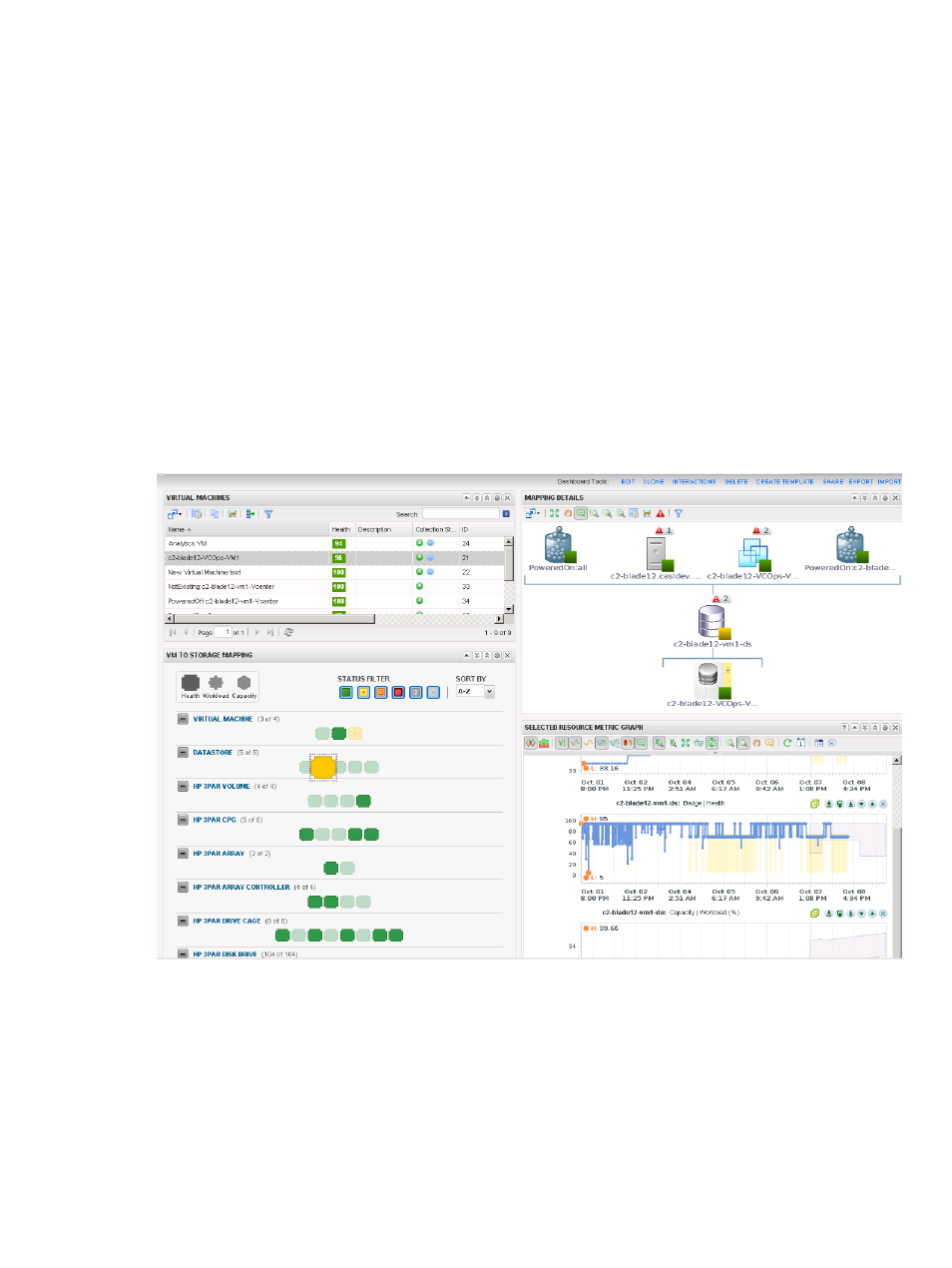

Figure 6 HP Storage Troubleshooting dashboard
