Component identification 6
Component identification
In this section
Front panel components ............................................................................................................................ 6
Front panel LEDs and buttons..................................................................................................................... 7
Rear panel components............................................................................................................................. 8
Rear panel LEDs ....................................................................................................................................... 9
System board components....................................................................................................................... 10
System board LEDs ................................................................................................................................. 12
System LEDs and internal health LED combinations ..................................................................................... 13
SAS and SATA device numbers ............................................................................................................... 14
Hot-plug SATA or SAS hard drive LEDs ..................................................................................................... 14
Fan locations ......................................................................................................................................... 15

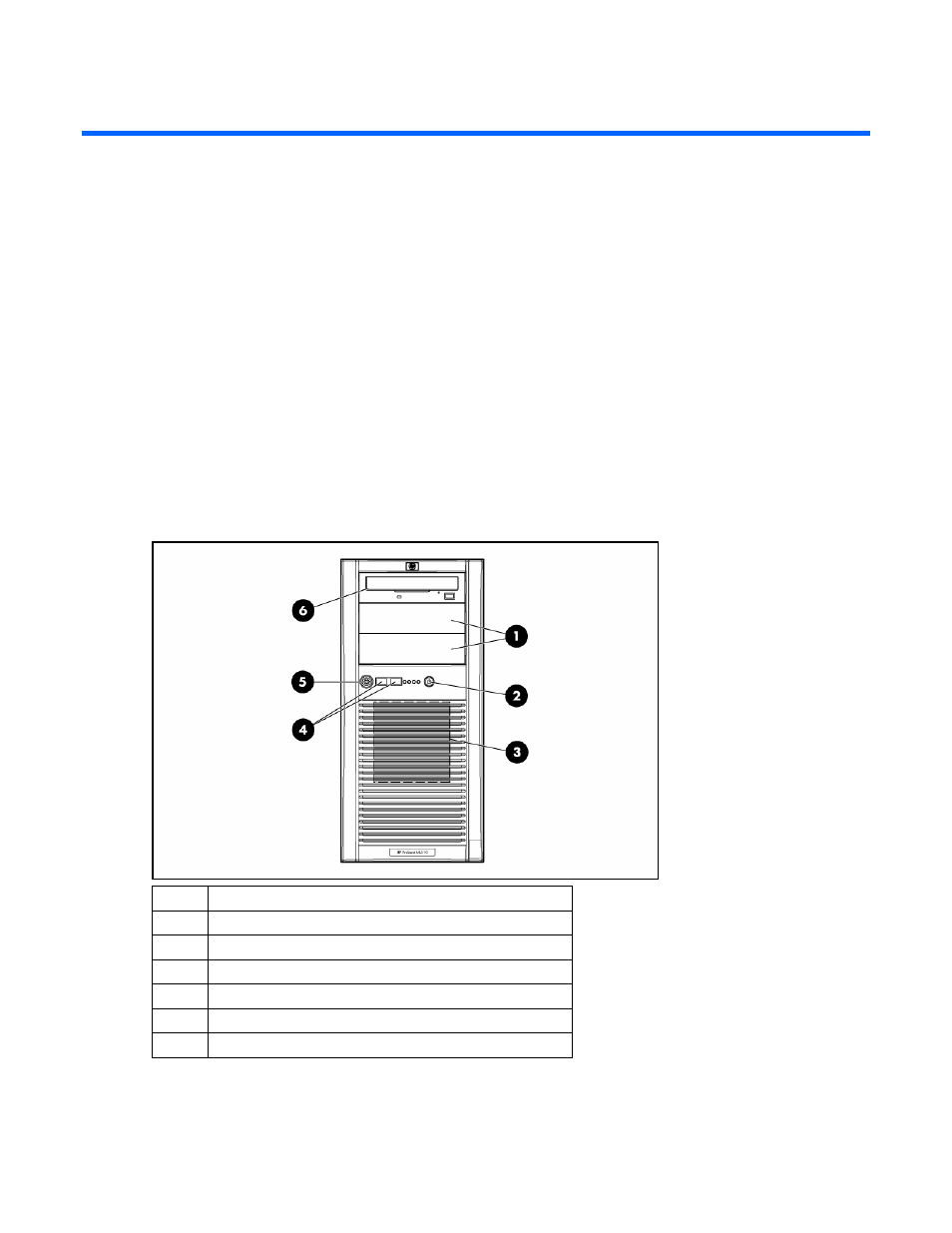

Front panel components
Item Description
1
Media bays (bezel blanks)
2
Power On/Standby button
3
Hard drive bays
4
USB connectors (2)
5 Bezel
lock
6 CD-ROM
drive
