HEALTH widget
This widget shows a graphical representation of the health of the selected object. An icon is shown
for each resource of the object and a colored box indicates the health status for each resource
(see
“Dashboard color coding” (page 13) ).
Double clicking an icon will bring that resource into focus and display a detailed health graphic
in the HEALTH STATUS widget. To return to a previous view, click the Reset to Initial Resource button

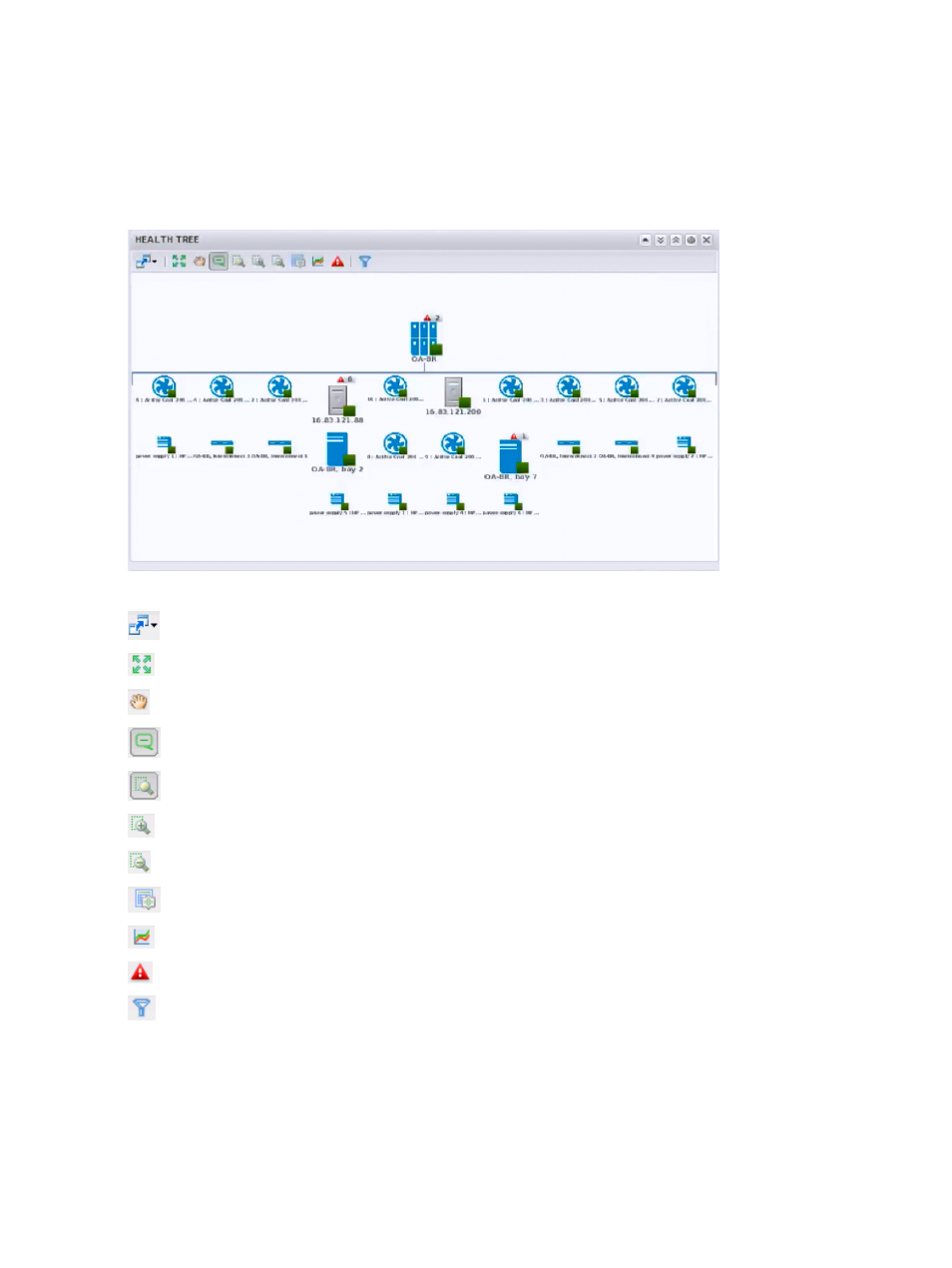

at the top of the widget. The following figure displays Enclosure objects.
The following buttons are available in this widget:
- Open an external application.
- Zoom to fit.
- Pan.
- Image map tooltip.
- Zoom view.
- Zoom in.
- Zoom out.
- Resets grid sort. This resets the widget to view the initial resource map.
- Show the resource detail.
- Show alerts.
- Display filter criteria.
