INSTALLATION
HP T750 G2, HP T750J, HP T1000 G3, HP T1000J, HP T1500 G3, and HP T1500J UPS Models User Guide S 505922-002 5
3 Slide up and remove the metal battery cover (see Figure 3). Do not remove any
screws.
NOTE: For HP T750 G2, HP T750J, and HP T1000 G3 models, carefully remove the metal
battery cover to avoid damaging the battery disconnect blades.
HP T1000J
HP T1500 G3, and
HP T1500J
HP T750 G2
HP T750J, and
HP T1000 G3

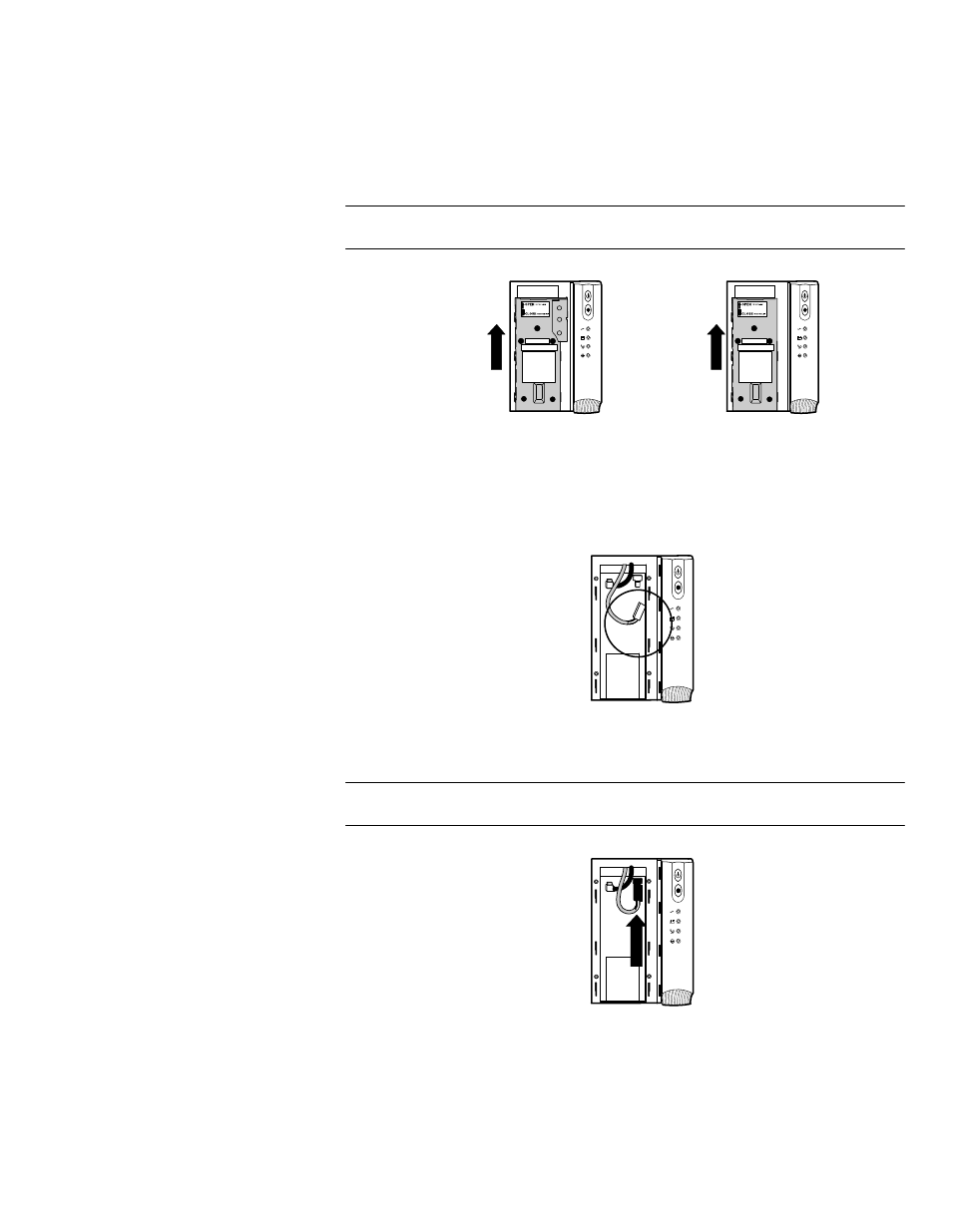

Figure 3 Removing the Battery Cover
4 Remove the protective label from the internal battery connector (see Figure 4).
Figure 4 Removing the Protective Label
5 Connect the red wire to the positive ( )) battery connector (see Figure 5).
NOTE: A small amount of arcing may occur when connecting the batteries. This is normal
and does not damage the unit or present any safety concern.
Figure 5 Connecting the Internal Battery Connector
6 Replace the metal battery cover.
7 Replace the UPS front bezel.
