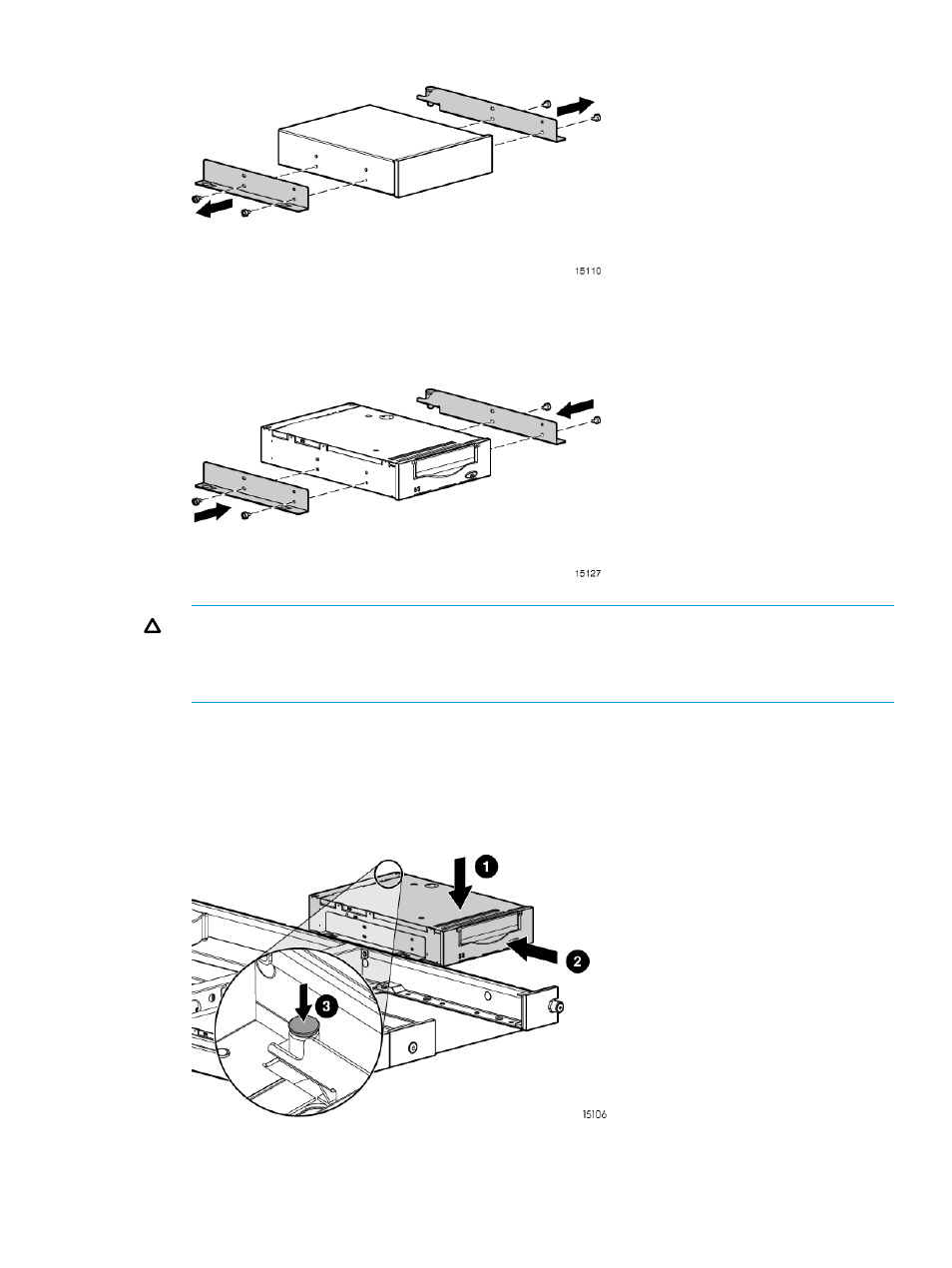

Figure 9 Removing the mounting brackets from the blank
4. Install the mounting brackets to the sides of the drive. Always use the screws provided with
the drive.
Figure 10 Installing the mounting brackets on the drive
CAUTION: When installing an LTO half-height tape drive, it is particularly important that
you use the 6 mm M3 screws provided with the drive. If the screws are too long, they may
damage the mechanism and void the warranty. Do not overtighten the screws; use the washers
provided in the screw pack.
5. Install the drive in the enclosure:
a.
Position the mounting bracket keyhole slots over the mounting posts.
b. Slide the drive toward the back of the enclosure.
c. The spring-loaded button will automatically snap into place.
Figure 11 Installing the drive
6. Attach the following cables:
