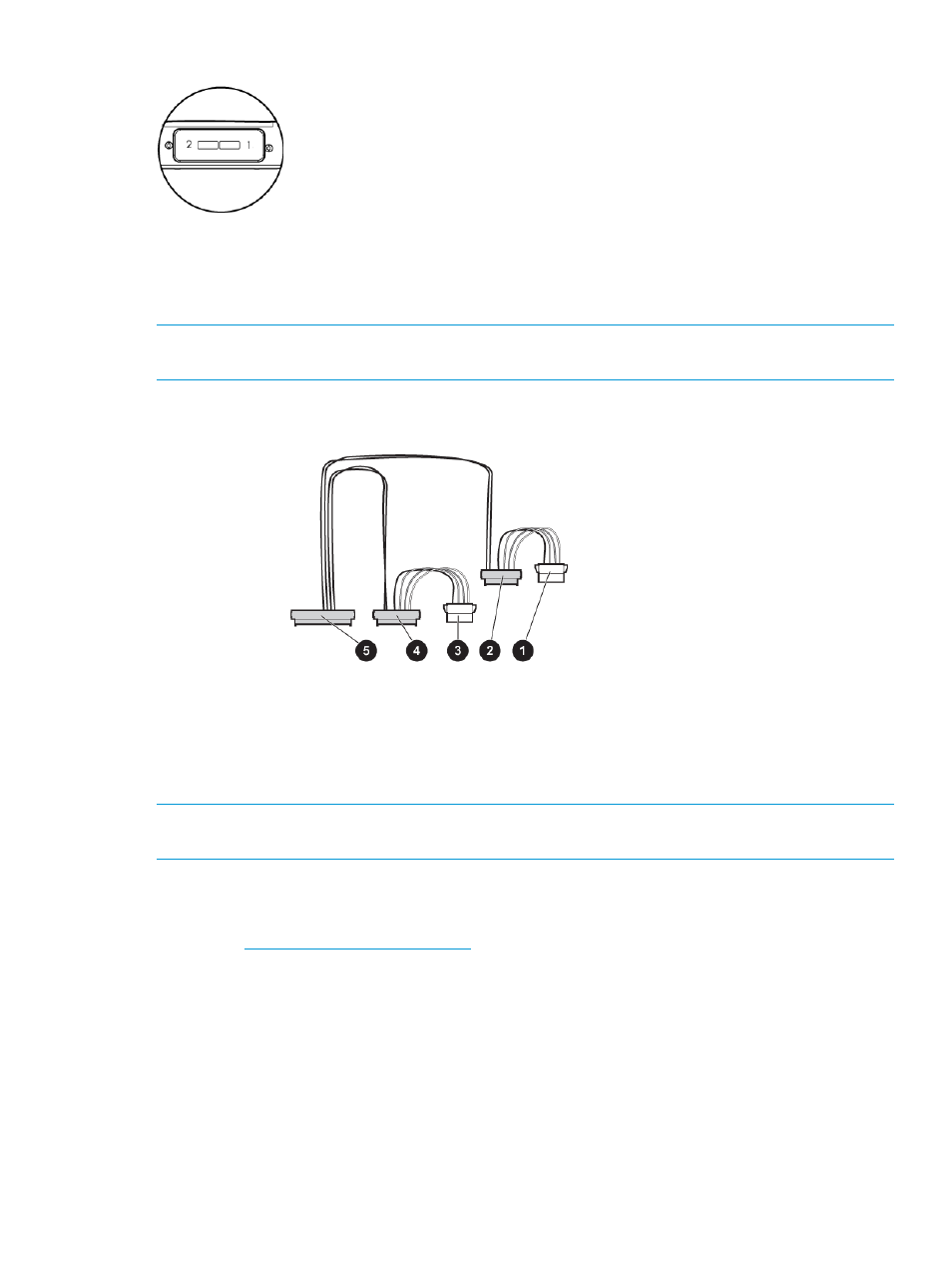

Figure 2 External SAS ports on the 1U rack-mount enclosure
When two SAS devices are installed, the right–most connector of the internal cable is connected
to the device on the right and the left-most connector of the internal cable is connected to the device
on the left. This routes the right-hand device to external port 1 and the left-hand device to external
port 2.
NOTE: The interface board has text, “Port 1–0” and “Port 2–0”, on the PCI board near the
internal SAS connector, which also helps identify the routing to the external ports.
Figure 3 Enclosure internal SAS cable
4. SAS connector routes device to external port 1 1. and 3. Power connectors (used only with LTO-5, LTO-6,
and DAT; do not use with other LTO drives)
5. SAS connector to PC board within the enclosure 2. SAS connector routes device to external port 2
NOTE: Power for all DDS, LTO-5, and LTO–6 tape drives is supplied through the SAS cable. For
all earlier models of LTO tape drive, plug the power cable directly into the drive.
Hardware Options
For a list of currently supported hardware options, such as tape drives and media, visit the HP
website at:
http://www.hp.com/go/tape .
