Right – HP EliteBook 8570w Mobile Workstation User Manual
Page 20
Right

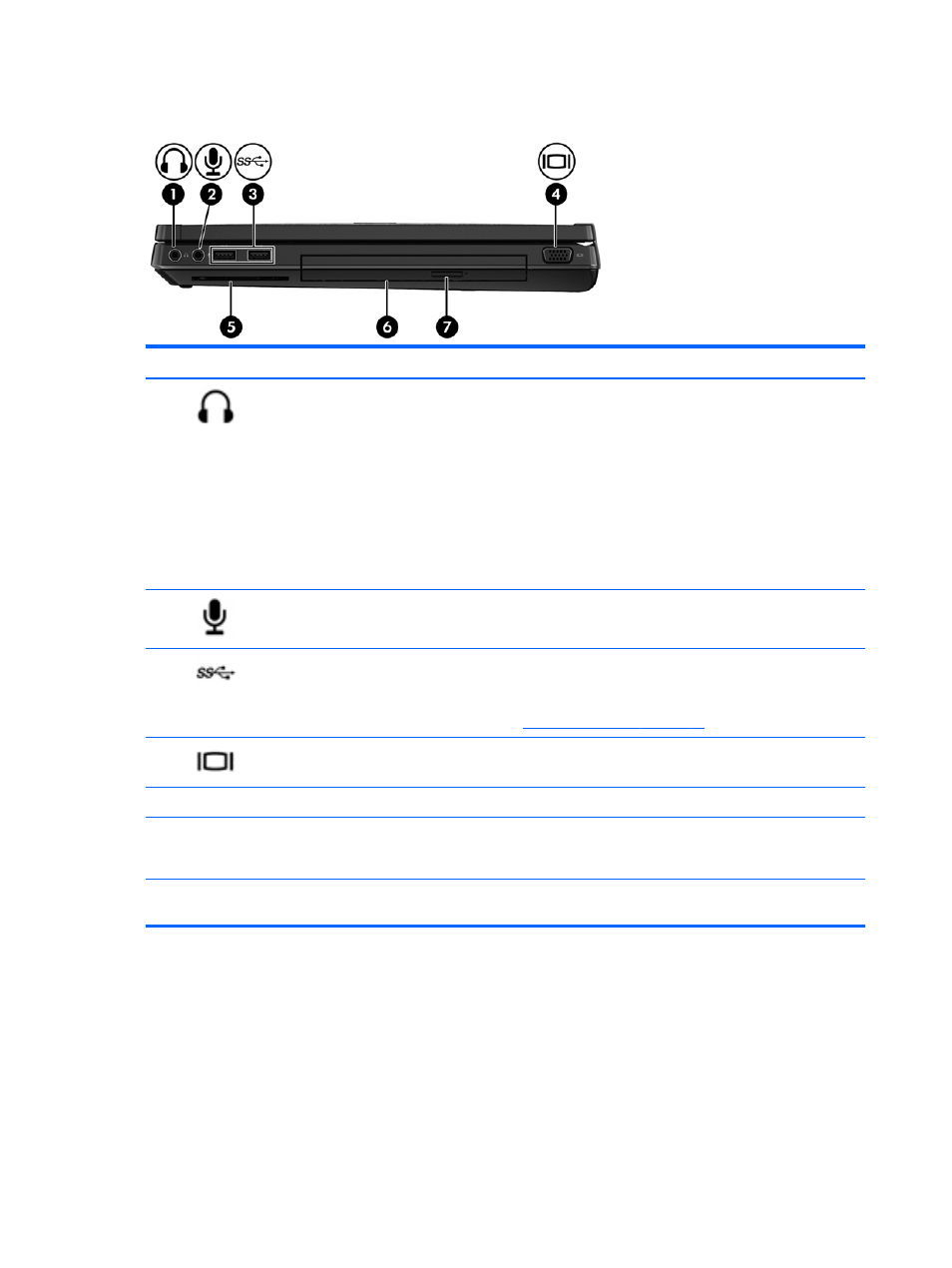

Component
Description
(1)
Audio-out (headphone) jack
Connects optional powered stereo speakers, headphones,
earbuds, a headset, or television audio.
WARNING!
To reduce the risk of personal injury, adjust
the volume before putting on headphones, earbuds, or a
headset. For additional safety information, see the
Regulatory, Safety, and Environmental Notices. To access
the user guides, from the Start screen, select the HP
Support Assistant app, select My computer, and then
select User guides.
NOTE:
When a device is connected to the jack, the
computer speakers are disabled.
(2)
Audio-in (microphone) jack
Connects an optional computer headset microphone,
stereo array microphone, or monaural microphone.
(3)
USB 3.0 ports (2)
Connect optional USB 3.0 compatible devices and provide
enhanced USB power performance.
NOTE:
For details about different types of USB ports, see
.
(4)
External monitor port
Connects an external VGA monitor or projector.
(5)
Smart card reader
Supports optional smart cards.
(6)
Upgrade bay (optical drive shown)
The upgrade bay can hold either a hard drive or an optical
drive that reads and writes (select models only) to an
optical disc. It can also hold a weight saver option.
(7)
Optical drive eject button (select models
only)
Releases the optical drive disc tray.
10
Chapter 2 Getting to know your computer
