Page 35: Attaching the tower conversion stands
Installation 35
Installing the ERM as a tower
Before installing the unit, review and adhere to all warnings provided in "Precautions (on page
)."
The tower stands and associated hardware ship with the UPS.

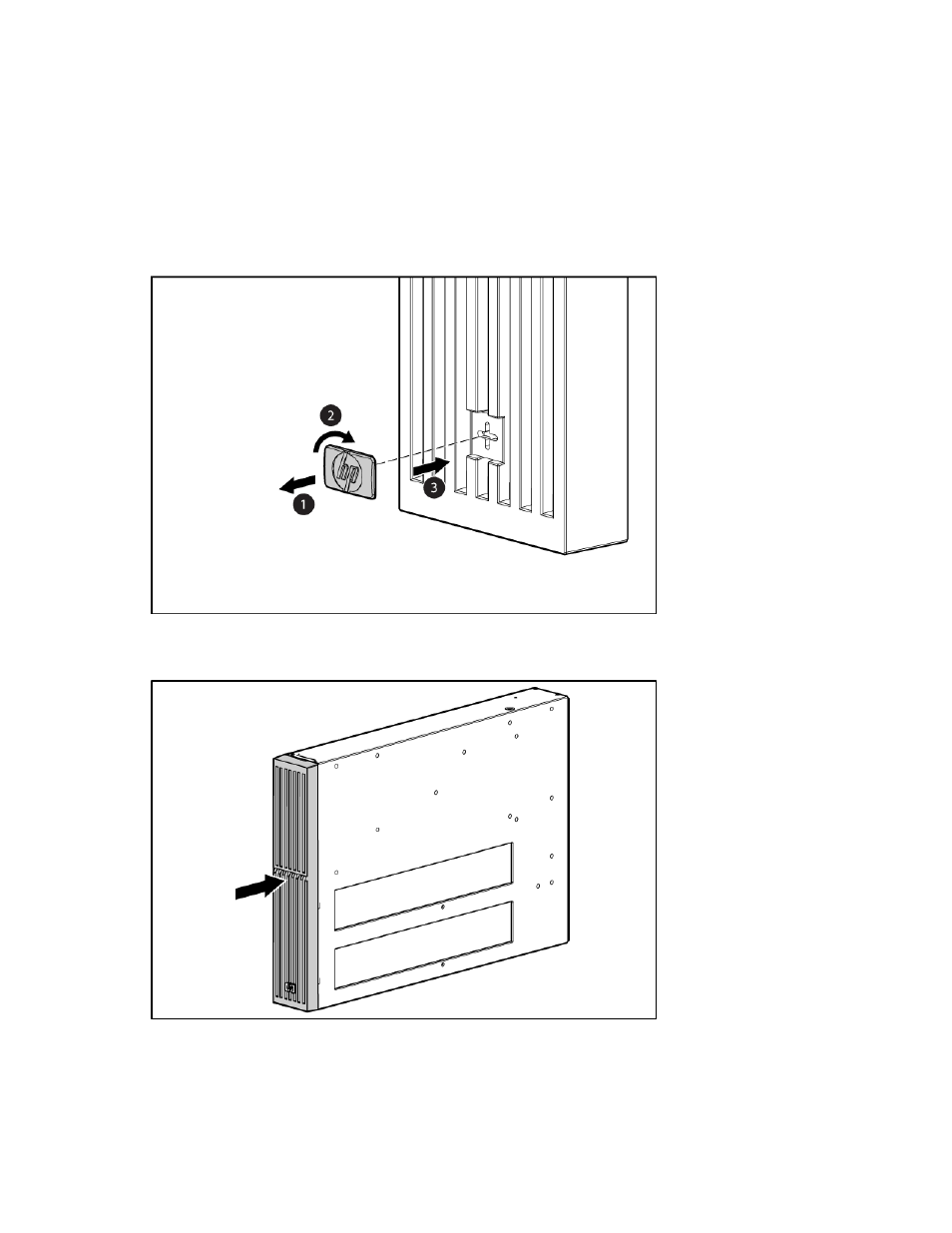

Rotating the logo badge
Gently pull out the logo badge, rotate it 90 degrees, and then replace it in the bezel.
Attaching the ERM front bezel
Attaching the tower conversion stands
