Component identification 8

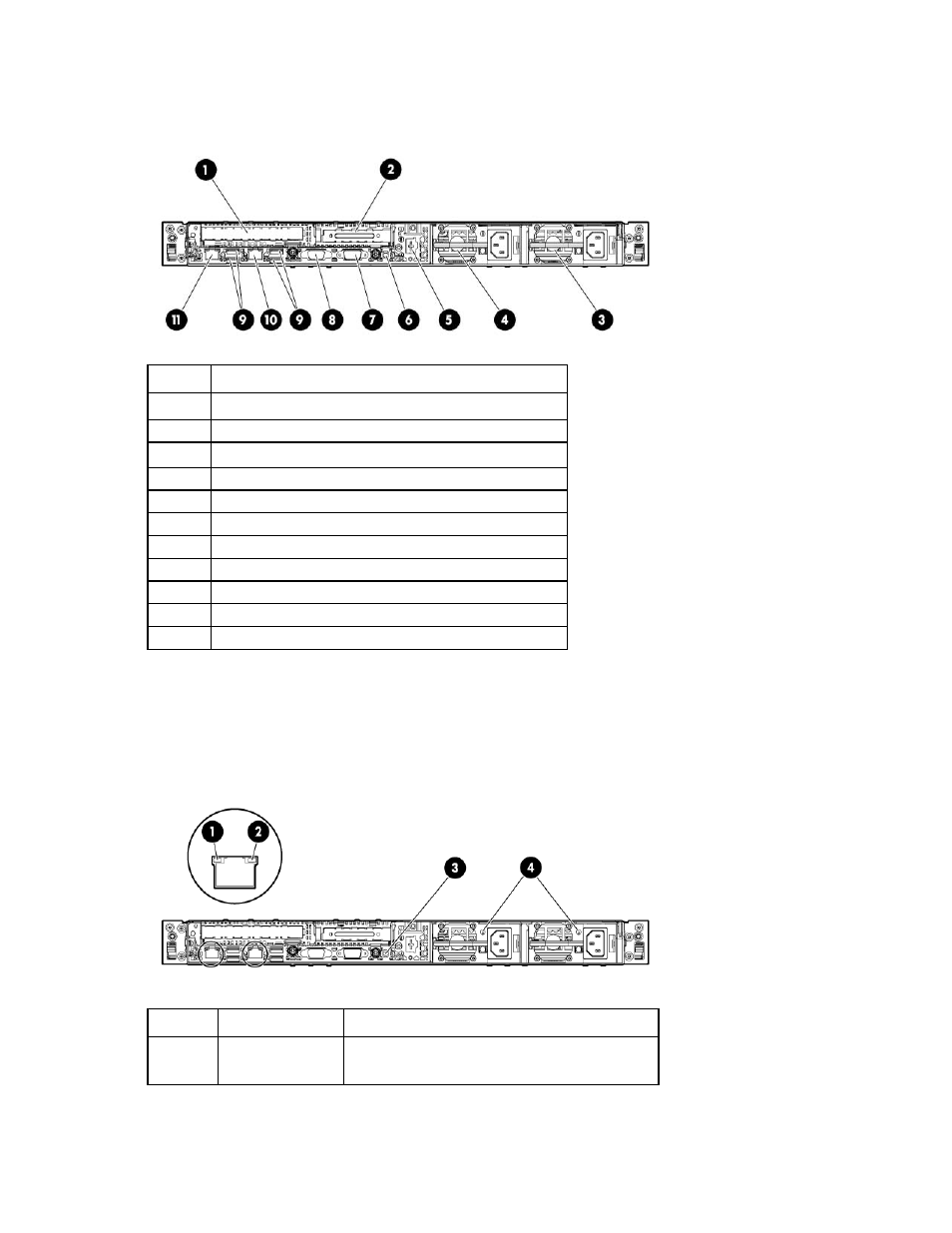

Rear panel components
Item Description
1 Slot 2 PCIe x16 (16, 8, 4, 1)*
2 Slot 1 PCIe x8 (4, 1)*
3 Power supply 1
4 Power supply 2
5 Dedicated iLO management port (optional)
6 UID LED button
7 Serial connector
8 Video connector
9 USB connectors
10 NIC 1/shared iLO management connector
11 NIC connector 2
* For more information on the riser board slots supported by the onboard PCI riser connectors, see "PCIe riser
board slot definitions (on page 10 )."
Rear panel LEDs and buttons
Item Description Status
1 NIC link LED Green = Link exists
Off = No link exists
