Cabling 55

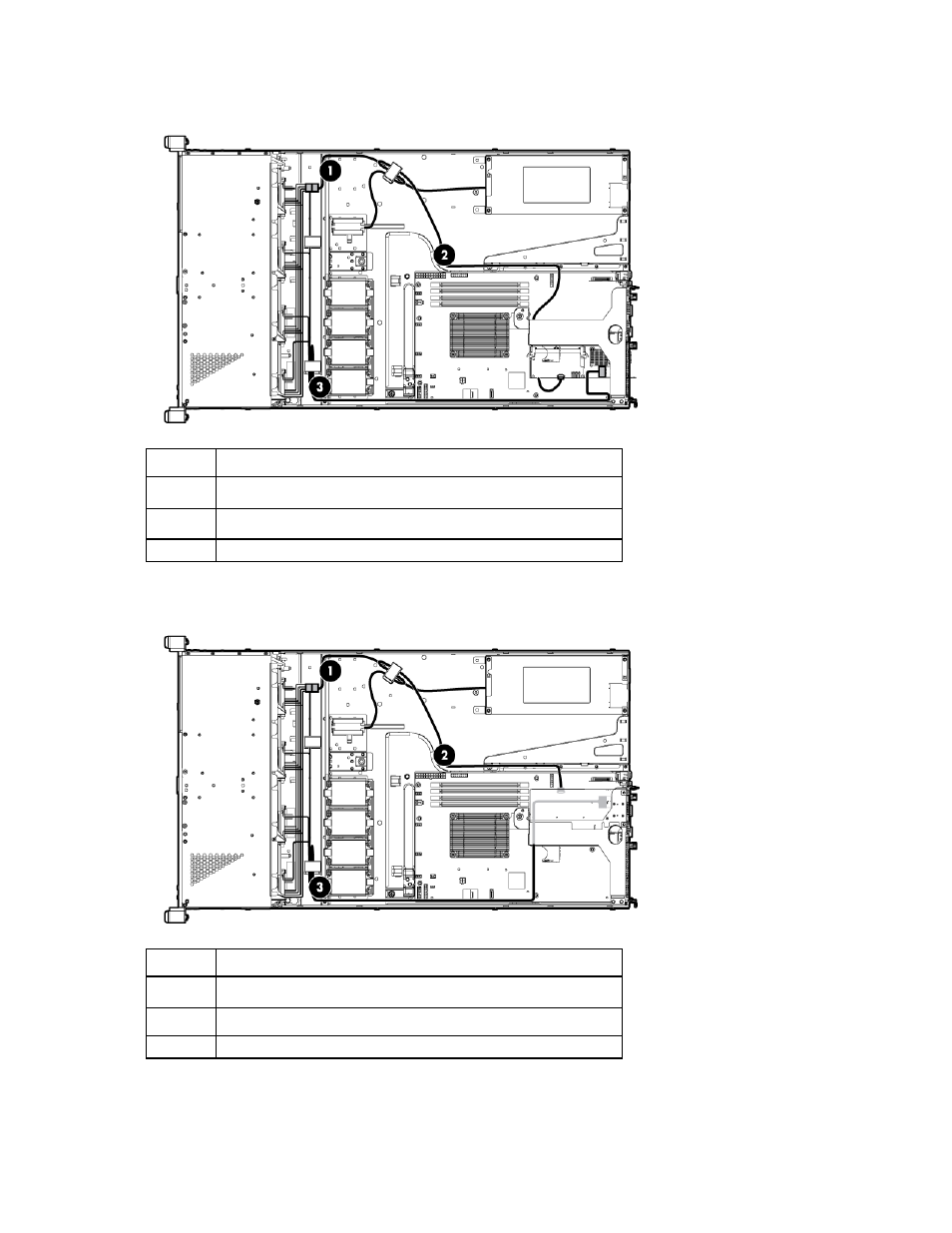

Mini-SAS cable connected to a storage controller in the full-height expansion slot

Item

Description

1

Power cable

2

Capacitor pack cable

3

700-mm Mini-SAS cable for non-hot-plug drive configuration

Mini-SAS cable connected to a storage controller in the low-profile expansion slot

Item

Description

1

Power cable

2

Capacitor pack cable

3

700-mm Mini-SAS cable for non-hot-plug drive configuration
