Component identification 12

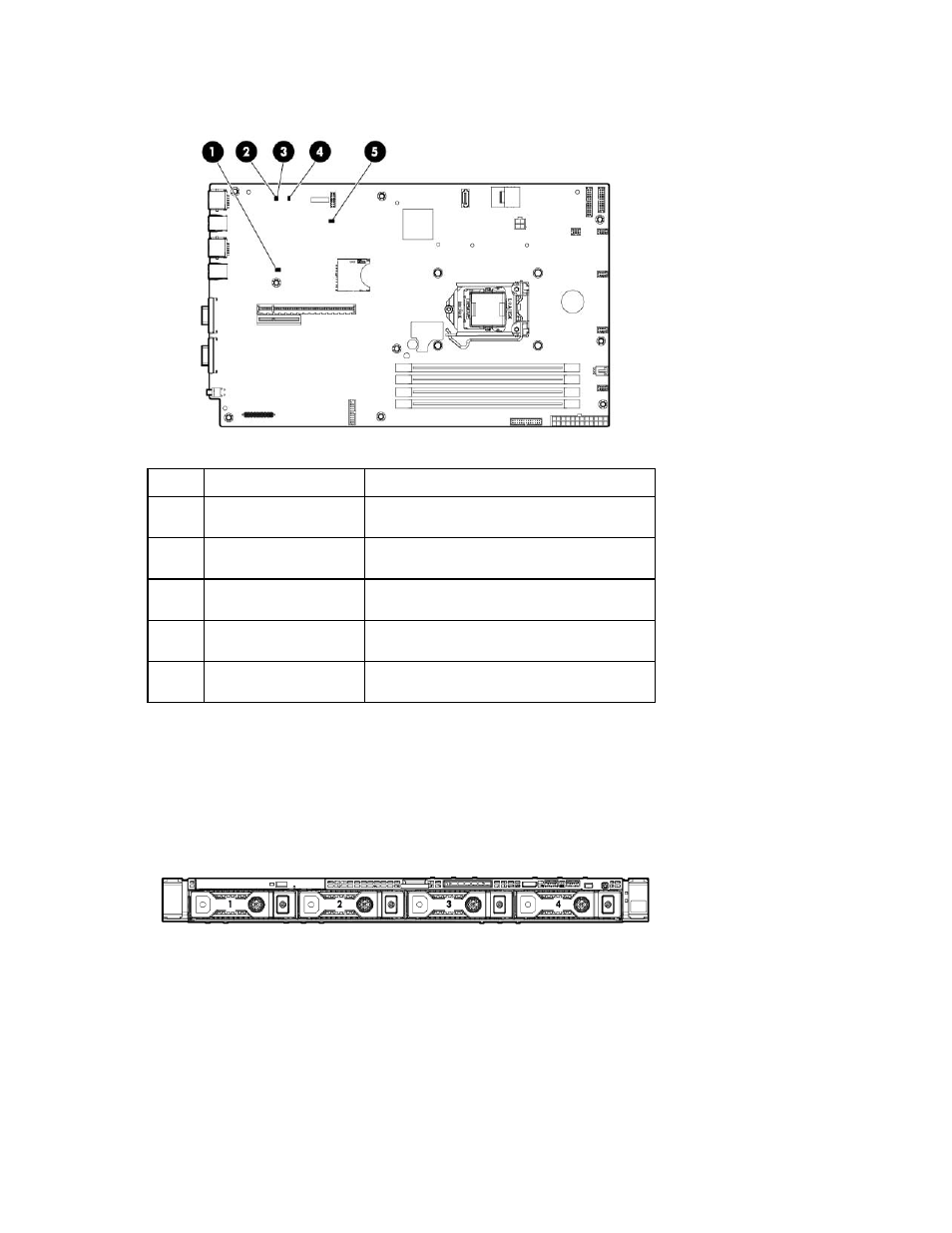

System board LED definitions

Item

Description

Status

1

Initialization failure

Yellow = System initialization failure
Off = Normal

2

Power supply 1 failure

Red = Power supply failure

Off = Normal

3

Power supply 2 failure

Red = Power supply failure
Off = Normal

4

Auxiliary power

Green = Standby power indicator

Off = Standby power invalid

5

Processor error

Yellow = Critical processor error

Off = Normal

Drive numbering

Four-bay LFF drive model
