Basic Installation/Operation

F8321401 (EN)

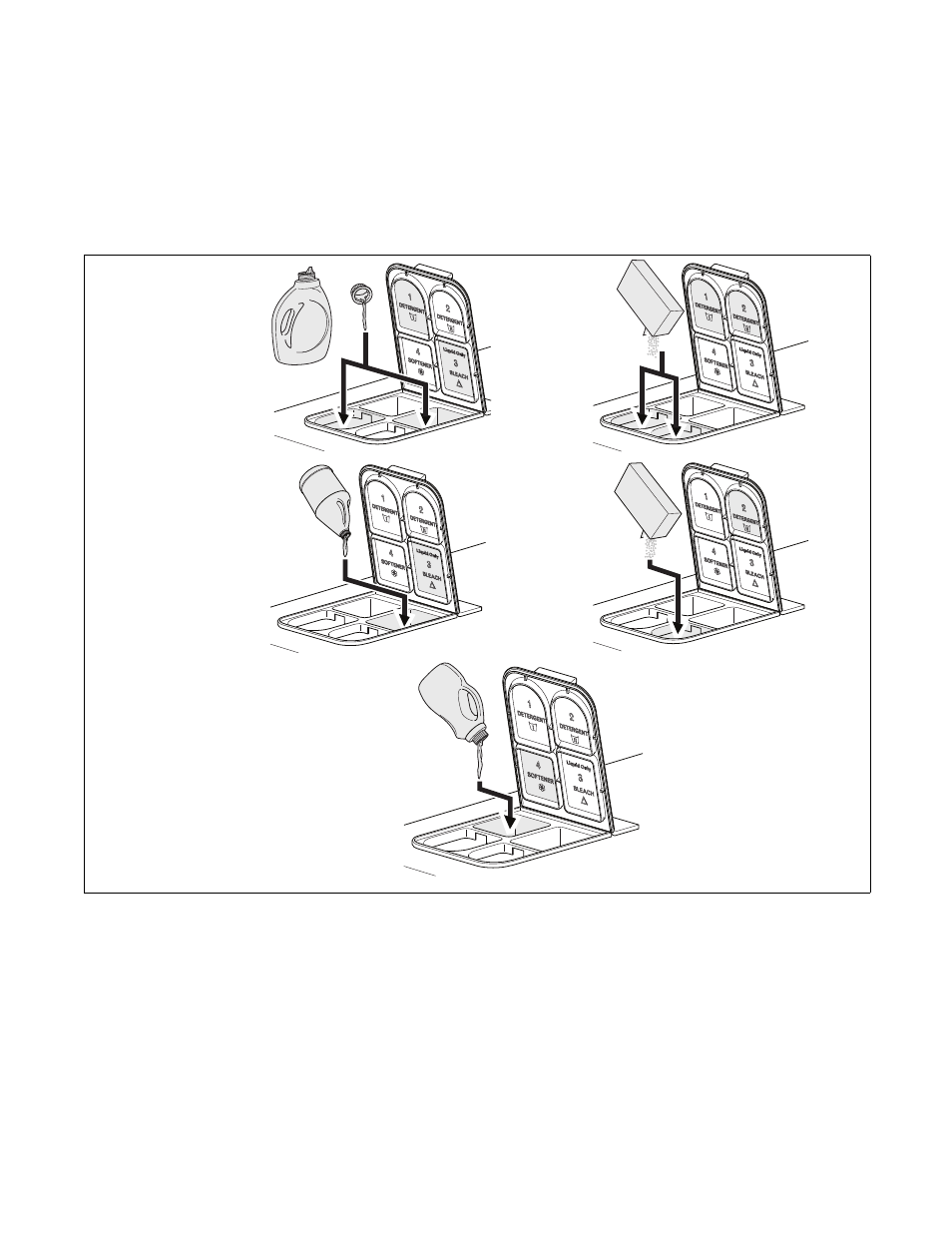

7. Add liquid and/or powder supplies to supply

dispenser. Refer to Figure 7.

a. Detergent:

• Liquid - Compartment 1 (prewash) +

Compartment 3

• Powder - Compartment 1 (prewash) +

Compartment 2

b. Bleach:

• Liquid - Compartment 3
• Powder - Compartment 2

c. Softener:

• Liquid - Compartment 4

Figure 7

8. Insert coin(s) or card as necessary.

• If the machine is a coin operated unit, add coins.

As each coin is added, the vend counts down to
the amount remaining.

• If the machine is a card operated unit, insert and

remove card per card system instructions.

• If the unit is interfaced to a central/remote pay

system, go to the central/remote pay console,
make payment and select the machine and follow
central/remote pay system instructions.

9. Press the START keypad.

10. During first fill, the desired wash cycle can be

changed. After first fill has ended, the wash cycle
active at that moment remains the chosen wash
cycle.

11. When cycle is complete, display shows “00”.

CHM2227N

Powder

a. DETERGENT

CHM2228N

Liquid

b. BLEACH

CHM2230N

Powder

CHM2229N

Liquid

c. SOFTENER

CHM2231N
