Basic Installation/Operation
F8321401 (EN) 10

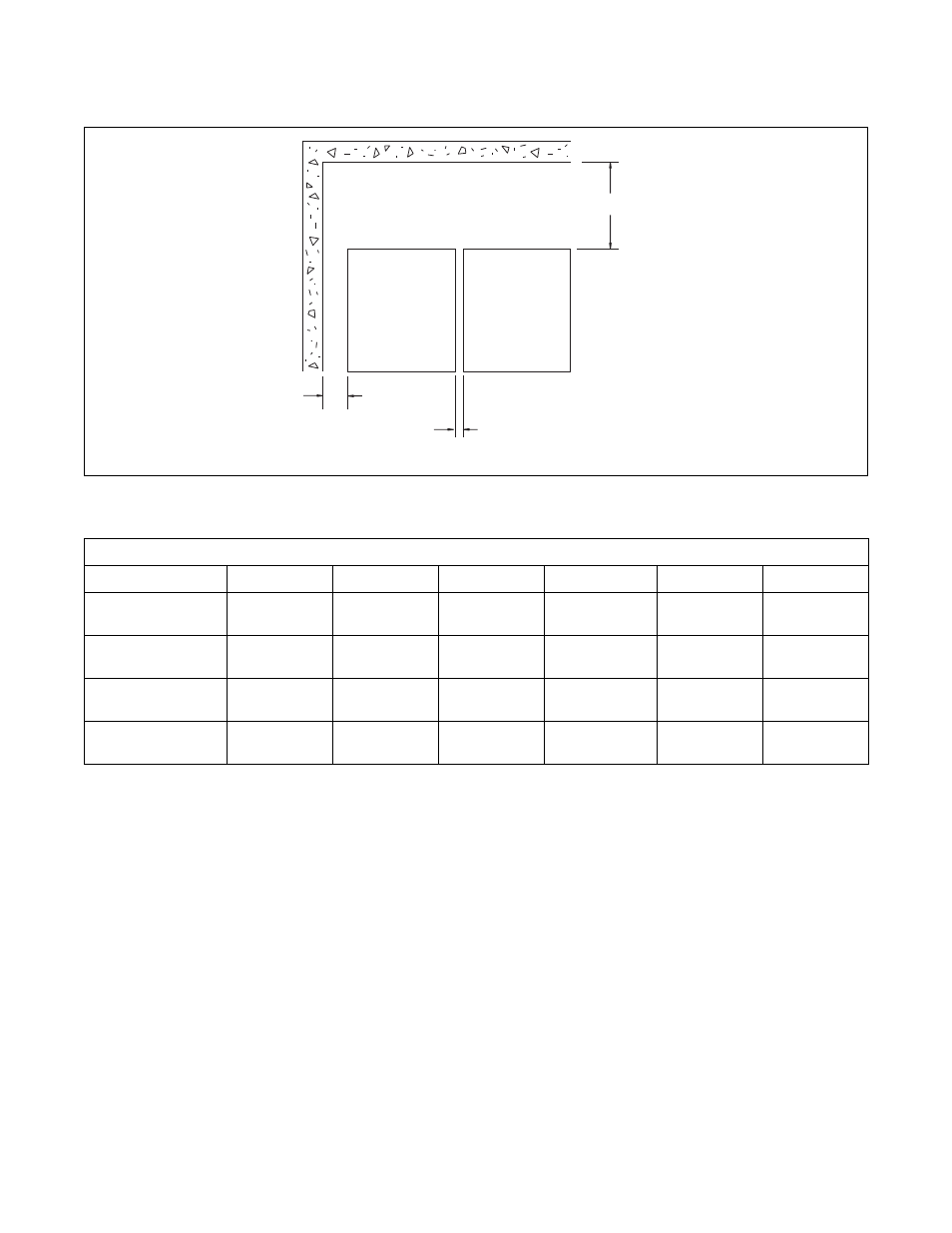

Dimensional Clearances
CHM2280N
Figure 1
CHM2280N
C
B
A
FRONT
Machine Capacity Dimensional Clearances
Dimensions 20 30 40 60 80 125
A
2 in.
(51 mm)
2 in.
(51 mm)
2 in.
(51 mm)
2 in.
(51 mm)
6 in.
(152 mm)
24 in.
(600 mm)
B
.5 in.
(12.5 mm)
.5 in.
(12.5 mm)
.5 in.
(12.5 mm)
.5 in.
(12.5 mm)
.5 in.
(12.5 mm)
.5 in.
(12.5 mm)
C
(recommended)
24 in.
(610 mm)
24 in.
(610 mm)
24 in.
(610 mm)
24 in.
(610 mm)
24 in.
(610 mm)
36 in.
(914 mm)
C
(minimum)
12 in.
(305 mm)
12 in.
(305 mm)
12 in.
(305 mm)
12 in.
(305 mm)
18 in.
(457 mm)
24 in.
(610 mm)
Table 3
