Basic Installation/Operation
13 F8321401 (EN)
125 Model
Table 5
CHM2279N
1 Dry Chemical Dispenser (Optional) 6 Hot Water Inlet
2 Input Power Block 7 Liquid Chemical Inlet
3 Fans 8 Steam Inlet (Optional)
4 Valve Panel 9 Drain Outlet
5 Cold Water Inlet

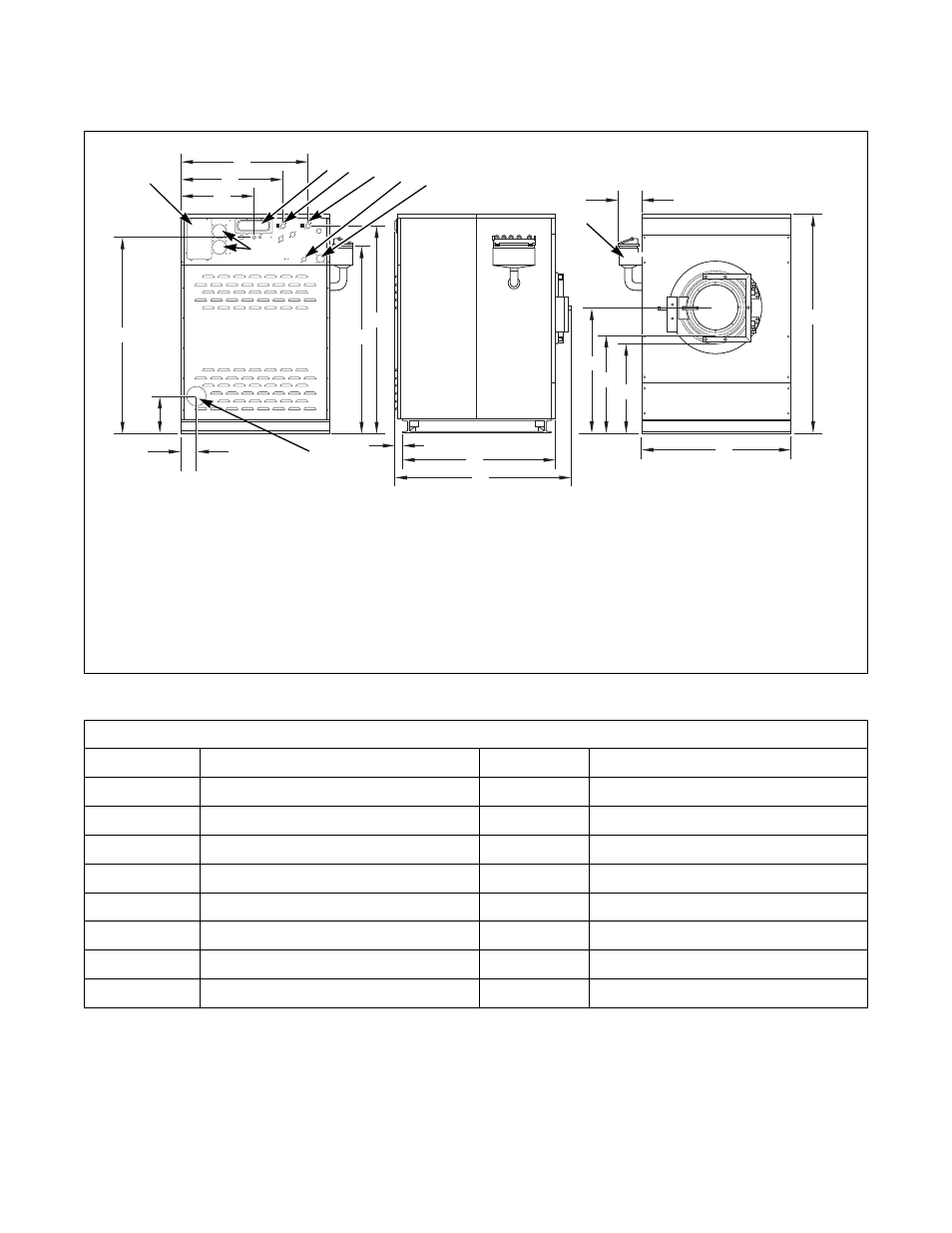

Figure 3
CHM2279N 125 POUND CAPACITY MACHINES
F
E
D
4 5
6
7 8
3
2
A
B
C 9
G
H
I
J
K
L
M
N
Q
P
O
1
Machine Capacity Dimensions for 125 Pound Models
A 78.8 in. (2002 mm) J 61.28 in. (1557 mm)
B 14.62 in. (371 mm) K 70.81 in. (1799 mm)
C 6.27 in. (159 mm) L 50.2 in. (1275 mm)
D 29.56 in. (751 mm) M 38.96 in. (990 mm)
E 41.28 in. (1049 mm) N 35.74 in. (908 mm)
F 51.26 in. (1302 mm) O 60 in. (1524 mm)
G 75.15 in. (1909 mm) P 9.92 in (252 mm)
H 83.4 in. (2118 mm) Q 88.09 in. (2237 mm)
I 2.86 in. (73 mm)
