1. Push the server latch down to lock the tape drive into position, as shown in the following figure.

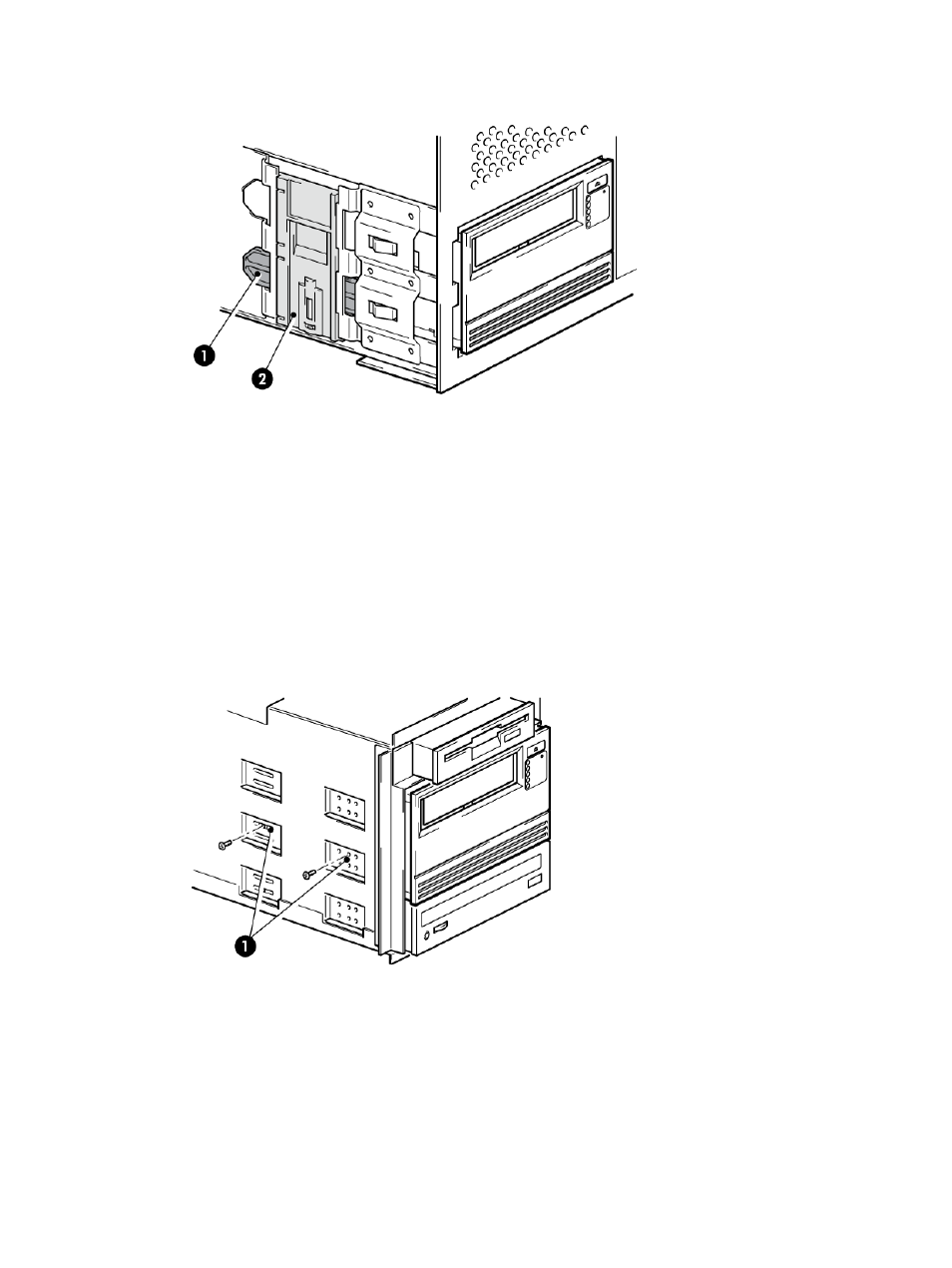

Figure 24 Securing drive, mounting hardware used
1. Plastic rail
2. Server latch
2. Ensure blanking plates are in place over empty bays and replace the cover on the server.
No mounting hardware used
1. Use the 4mm M3 screws provided with the tape drive. Check that the holes in the chassis are
aligned with the holes in the sides of the drive and use a regular Phillips screwdriver to secure
the M3 screws, as shown in the following figure.
If you cannot tighten the screws, use the washers provided in the pack.
Figure 25 Securing drive, no mounting hardware used
1. M3 screws, supplied with tape drive
2. Ensure blanking plates are in place over empty bays and replace the cover on the server.
Reboot the server
Reboot the server to power up the tape drive and server.
