Front panel, Front panel components and labels, Ront – ADC EDU-409 User Manual
Page 12: Anel, Edu-409

Product Description
150-409-115-05, Issue 5
6
January 26, 2000
EDU-409 List 1
F
RONT
P
ANEL
shows the front panel of the EDU-409 List 1, and
describes
the doubler unit components.

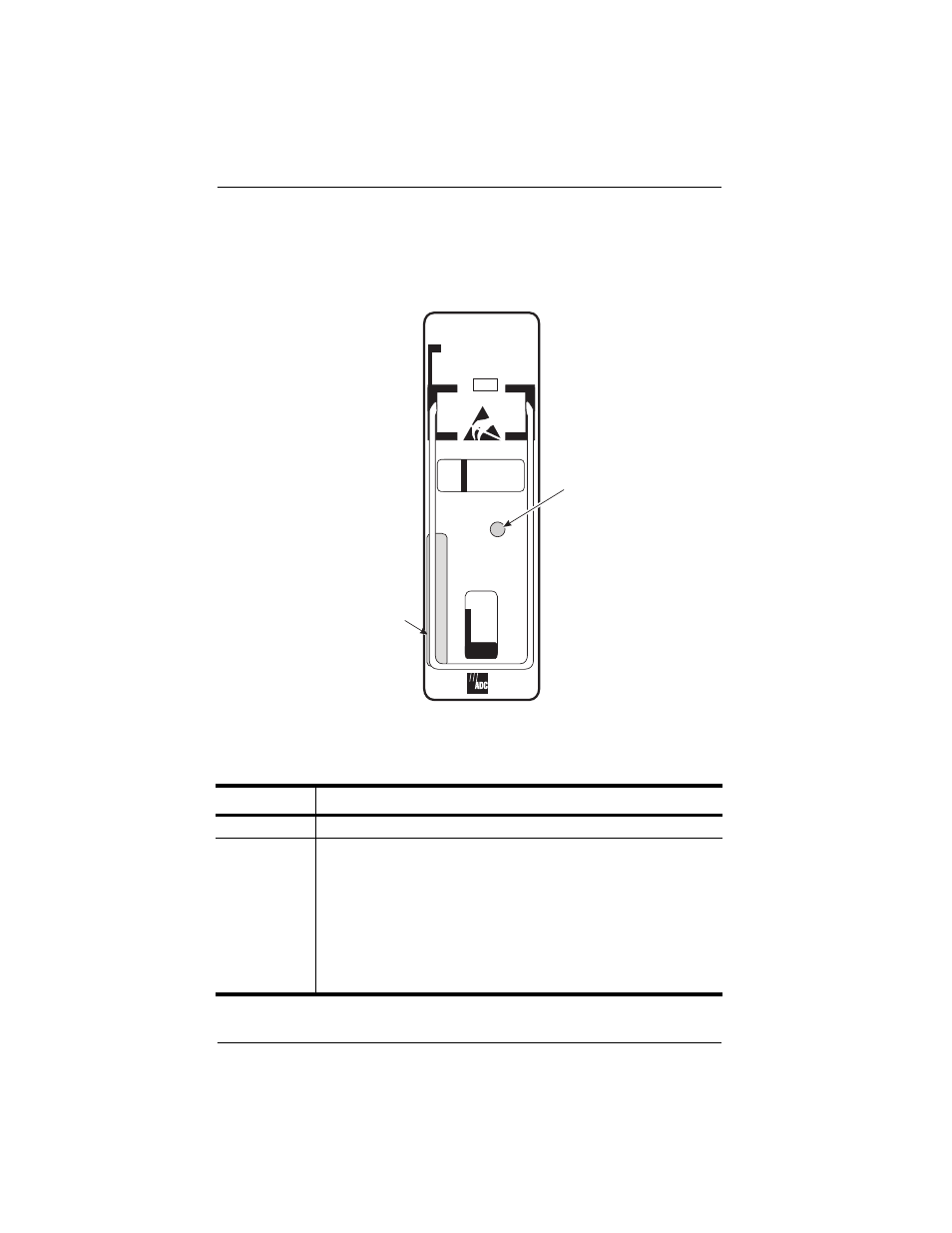

Figure 1.
EDU-409 List 1 Front Panel
Table 3.
Front Panel Components and Labels
Name
Function
Status LED
Indicates operational status of doubler. See
.
Configuration
number
Contains either a five-digit or six-digit warranty configuration number or
a standalone two or three-digit configuration number as follows:
Digit 1 = Last digit of shipment year
Digits 2 and 3 = Shipment month
Digits 4 and 5 = Configuration number
The configuration number can also be found on a small bar label that also
contains the Julian date code and part number. This gummed label may
be attached to the PC board or to the front panel.
Configuration
number label
(located on side)
Status LED
EDU-409
HiGain
DOUBLER
L
STATUS
