American Dryer Corp. Phase 7 D30 - Manual (Page 9)

7

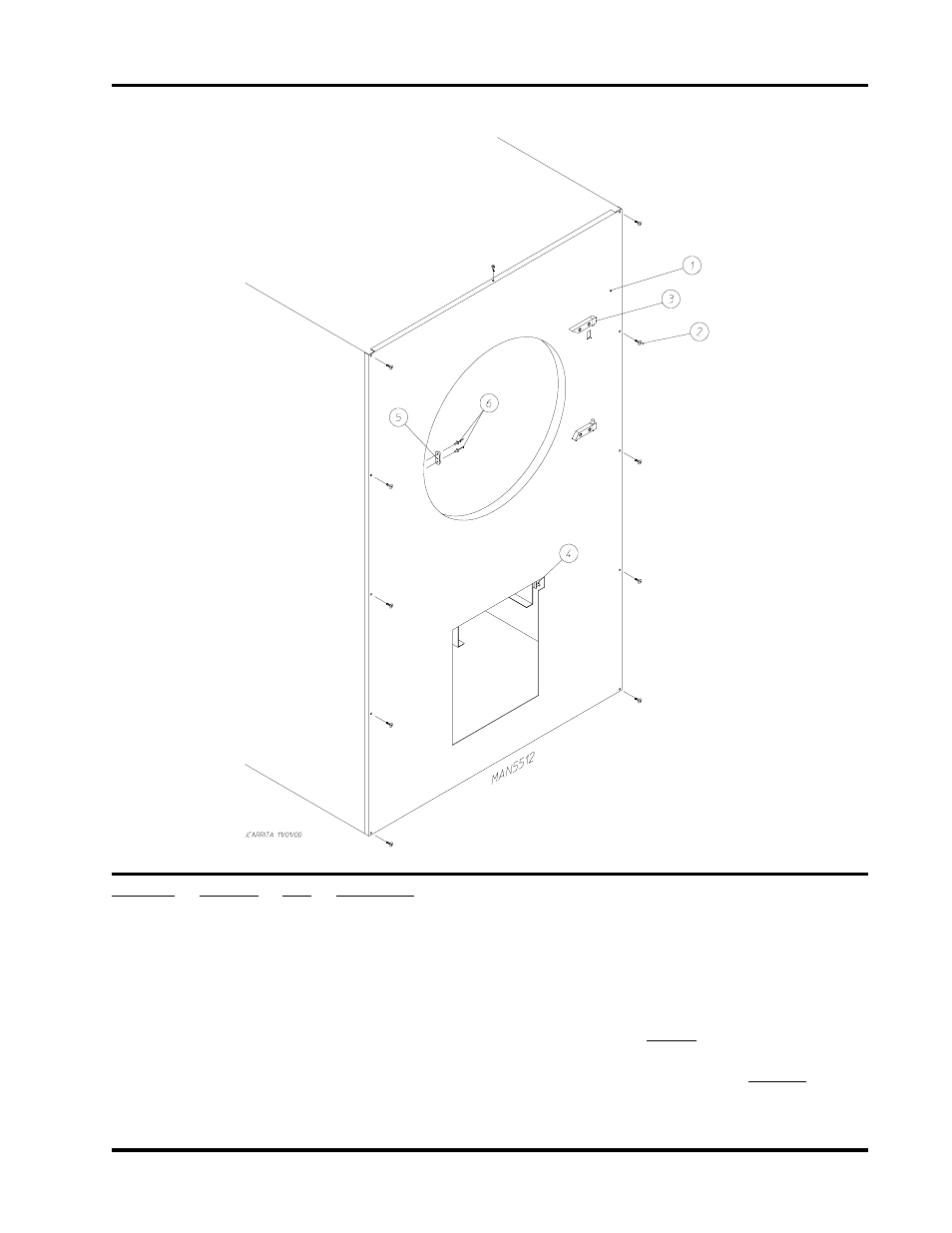

Front Panel Assembly
For Models Mfd. prior to July 1, 2002
Illus. No. Part No. Qty. Description
1 883137 1 White Front Panel Assembly
(includes illus. nos. 1, 3, and 5 through 6)
2 150313 11 #10-16 x 1/2” TORX + BTN Type 1
150318 1 25 IP TORX + Bit 1/4 Hex (for removal of TORX head screw)
3 -------- 1 Main Door Hinge
(refer to Main Door “Steel” Assembly on page 8)
4 -------- 1 Lint Drawer Switch
(refer to Lint Drawer/Lint Drawer Switch Assembly on page 13)
5 881987 1 Friction Door Latch Kit
(includes illus. nos. 5 and 6)
6 154215 2 5/32” Pop Rivet
