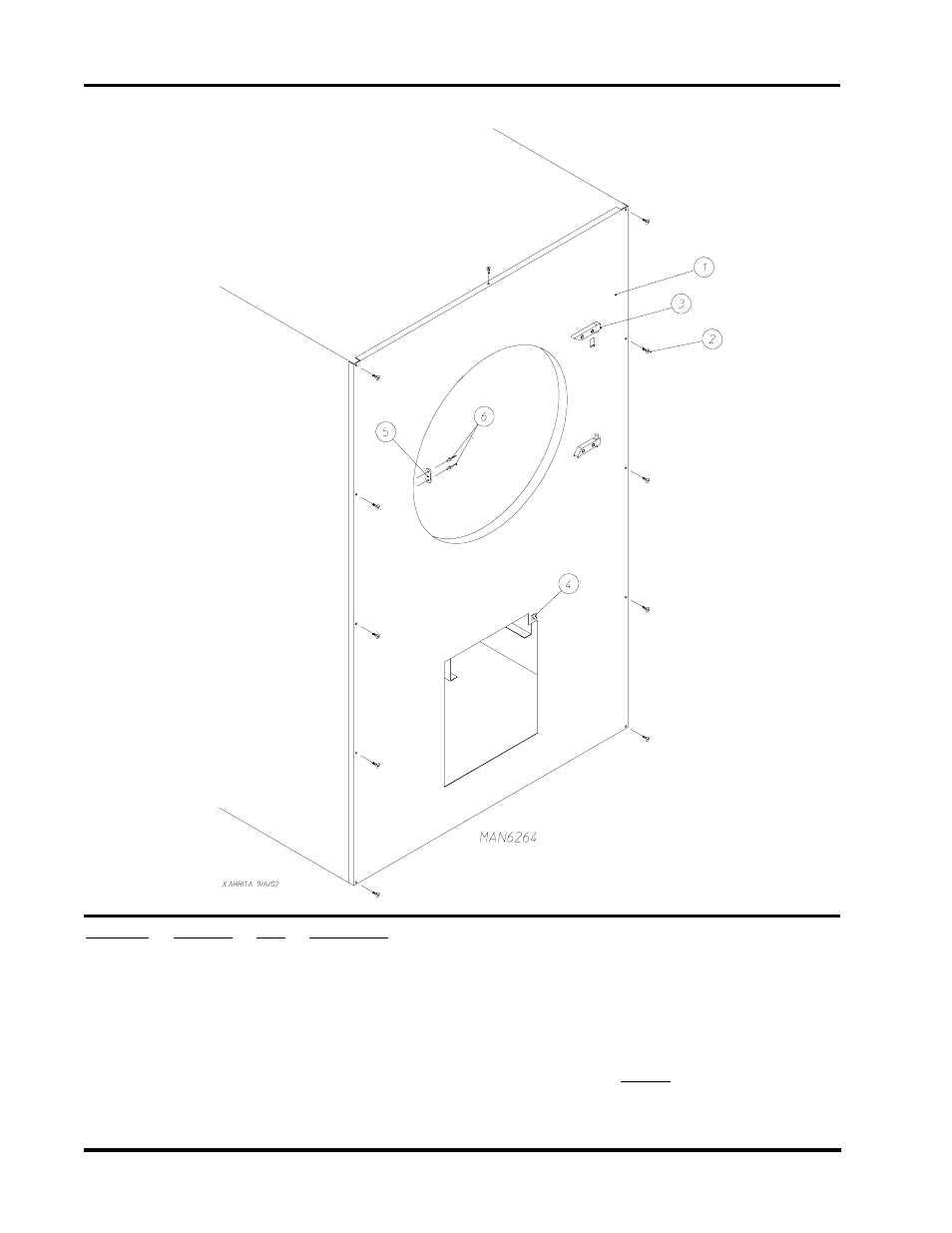

Front Panel Assembly

For Models Mfd. as of July 1, 2002

Illus. No.

Part No.

Qty.

Description

1

883567

1

White Front Panel Assembly
(includes illus. nos. 1, 3, and 5 through 6)

2

150313

11

#10-16 x 1/2” TORX + BTN Type 1

150318

1

25 IP TORX + Bit 1/4 Hex (for removal of TORX head screw)

3

--------

1

Main Door Hinge

(refer to Main Door “Steel” Assembly on page 8)

4

122002

1

Lint Drawer Switch

5

170330

1

Friction Door Latch

6

154215

2

5/32” Pop Rivet
