13

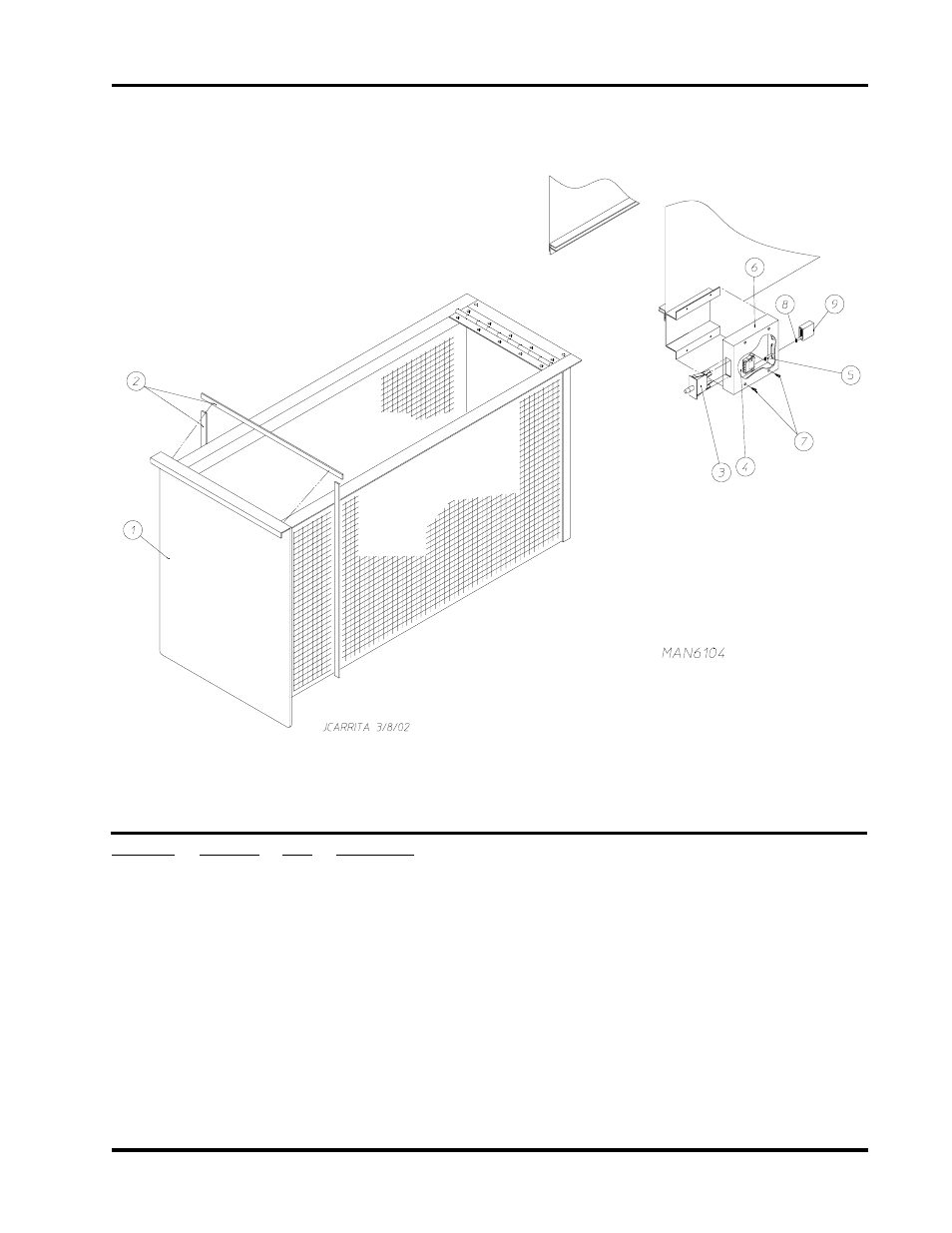

Lint Drawer/Lint Drawer Switch Assembly

For Models Mfd. prior to July 1, 2002

Illus. No.

Part No.

Qty.

Description

1

883140

1

White Lint Drawer Assembly
(includes illus. nos. 1 and 2)

2

117605

5

Gasket (sold by the foot)

3

122116

1

Lint Drawer Switch

4

122605

1

4-Pin Socket Connector ONLY

5

122701

4

Socket Terminal ONLY

122801

1

Pin/Socket Extraction Tool

6

833123

1

Lint Drawer Switch Box Assembly
(includes illus. nos. 3 through 6)

304136

1

Lint Drawer Switch Box Cover ONLY

7

150301

2

#8-18 x 7/16” Phillips Pan Head TEK Screw

8

122700

4

Pin Terminal ONLY

9

122604

1

4-Pin Connector ONLY
