Phase 7 opl microprocessor control box assembly – American Dryer Corp. Phase 7 D30 User Manual

Page 7

background image

5

Illus. No.

Part No.

Qty.

Description

1

122681

1

10-Pin Connector

2

122676

1

8-Pin Connector

3

122646

1

2-Pin Connector

4

122683

1

6-Pin Terminal

5

122640

1

9-Pin Terminal

6

122706

*

#20-16 U.M.N.L. Socket

7

122669

*

Female Crimp Terminal

*

As needed.

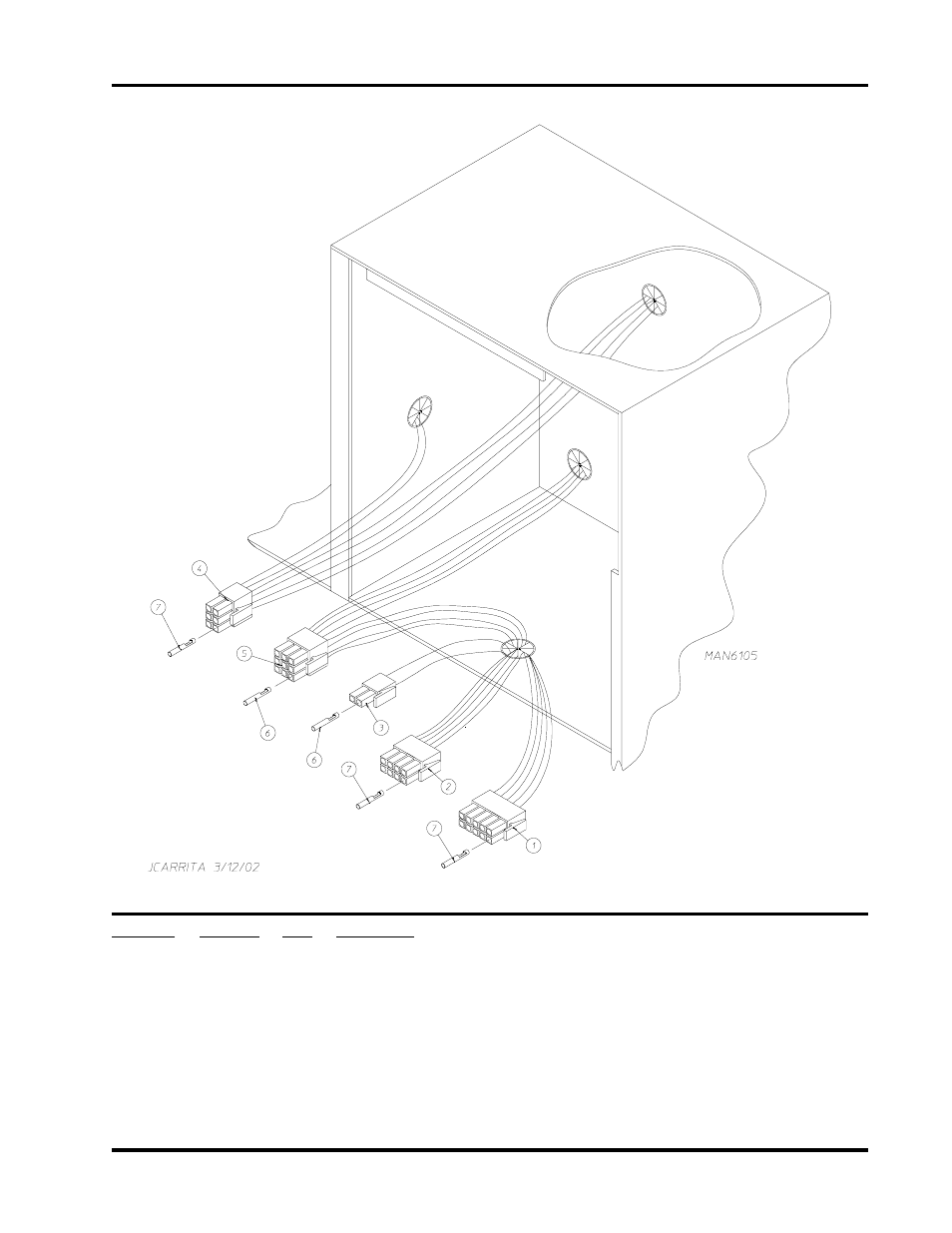

Phase 7 OPL Microprocessor Control Box Assembly
